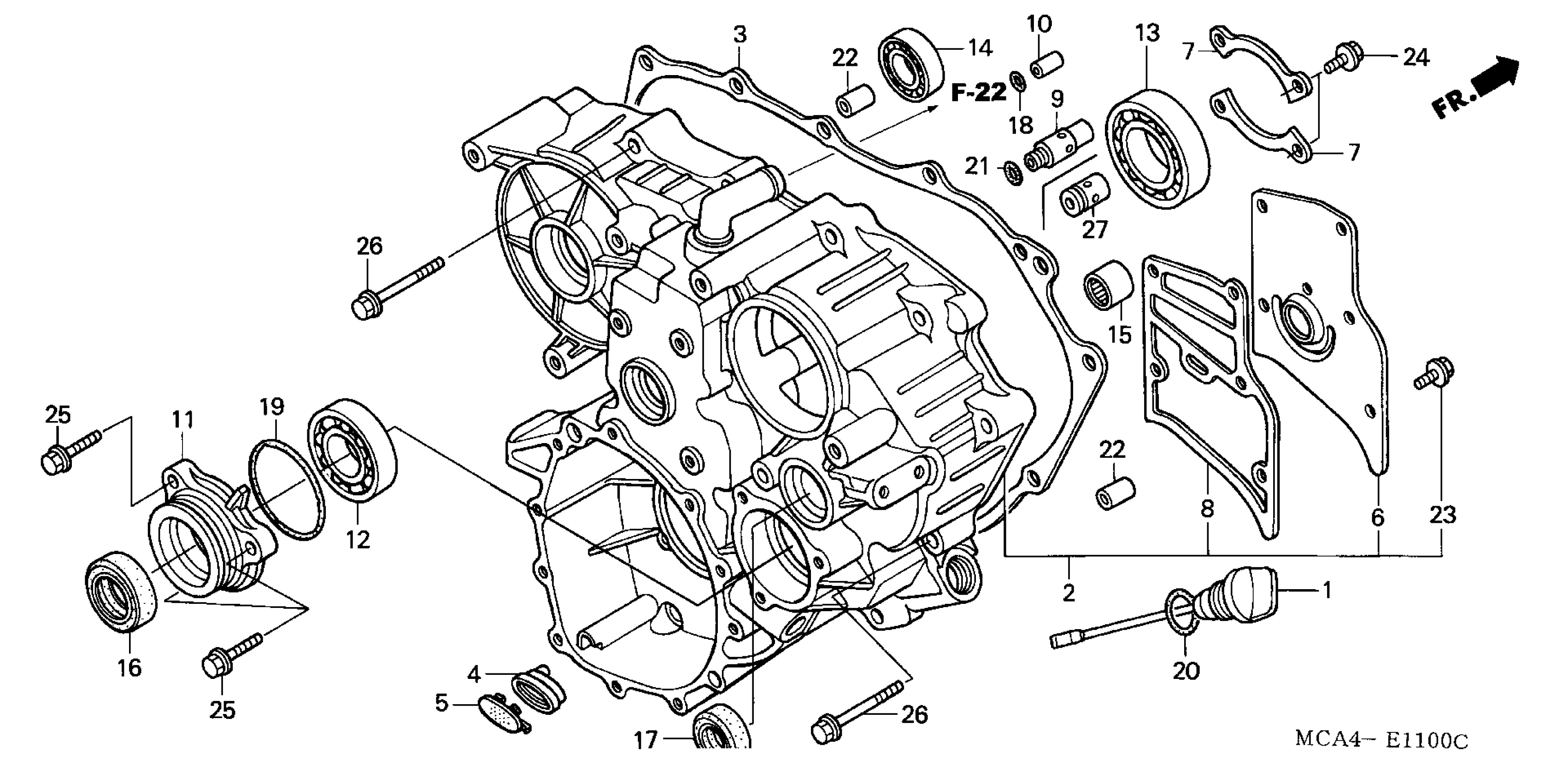

Honda GL1800A (01) GOLD WING, USA, VIN# 1HFSC470-1A000001 TO 1HFSC470-1A099999 REAR CASE Diagram

DIPSTICK, OIL

15650-MCA-010

$18.02

CASE ASSY., RR. DIFFERENTIAL This part replaces 21100-MCA-000.

21100-MCA-010

Unavailable

CASE ASSY., RR. DIFFERENTIAL

21100-MCA-010

Unavailable

GASKET, RR. CASE This part replaces 21112-MCA-000.

21112-MCA-020

$40.95

GASKET, RR. CASE This part replaces 21112-MCA-010.

21112-MCA-020

$40.95

BODY, SCAVENGE OIL PUMP STRAINER This part replaces 21116-MCA-000.

21116-MCA-780

$7.39

CAP, SCAVENGE OIL PUMP STRAINER This part replaces 21117-MCA-000.

21117-MCA-780

$5.33

PLATE, BREATHER This part replaces 21120-MCA-000.

21120-MCA-010

$16.77

PLATE, BREATHER

21120-MCA-010

$16.77

PLATE, PRIMARY BEARING SETTING

21122-MN5-000

$9.75

GASKET, BREATHER PLATE This part replaces 21125-MCA-310.

21125-MCA-780

Unavailable

GASKET, BREATHER PLATE

21125-MCA-780

Unavailable

VALVE ASSY., CLUTCH REGULATOR

22360-MCA-000

Unavailable

ORIFICE, CLUTCH CONTROL

22465-MCA-000

$4.10

HOLDER, FINAL SHAFT BEARING

23751-MN5-000

$112.13

BEARING, RADIAL BALL (6206) (NTN)

91006-MT3-003

$21.55

BEARING, RADIAL BALL (6206) (NTN) This part replaces 91011-MN5-003.

91006-MT3-003

$21.55

BEARING, RADIAL BALL (6010) (NTN)

91002-MN5-003

$77.36

BEARING, RADIAL BALL (6905)

91015-MCA-003

$10.36

BEARING, NEEDLE (12X16X10)

91024-GJ5-003

$18.66

OIL SEAL (28X48X9) (NOK)

91204-MN5-005

$13.54

OIL SEAL (27X34X5)

91208-MN5-003

$4.06

O-RING B (6.8X2.5) (ARAI)

91304-MC7-003

$2.92

O-RING (62.4X3.1) This part replaces 91304-MN5-003.

91316-PE7-730

$5.69

O-RING (62.4X3.1)

91316-PE7-730

$5.69

O-RING (62.4X3.1) This part replaces 91316-PT6-003.

91316-PE7-730

$5.69

O-RING (18X3)

91307-035-000

$2.92

O-RING (7X1.7)

91312-107-000

$3.18

PIN, DOWEL (10X16)

94301-10160

$2.28

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

BOLT, FLANGE (8X28)

95701-08028-08

$2.06

BOLT, FLANGE (8X45)

95701-08045-08

$2.28
