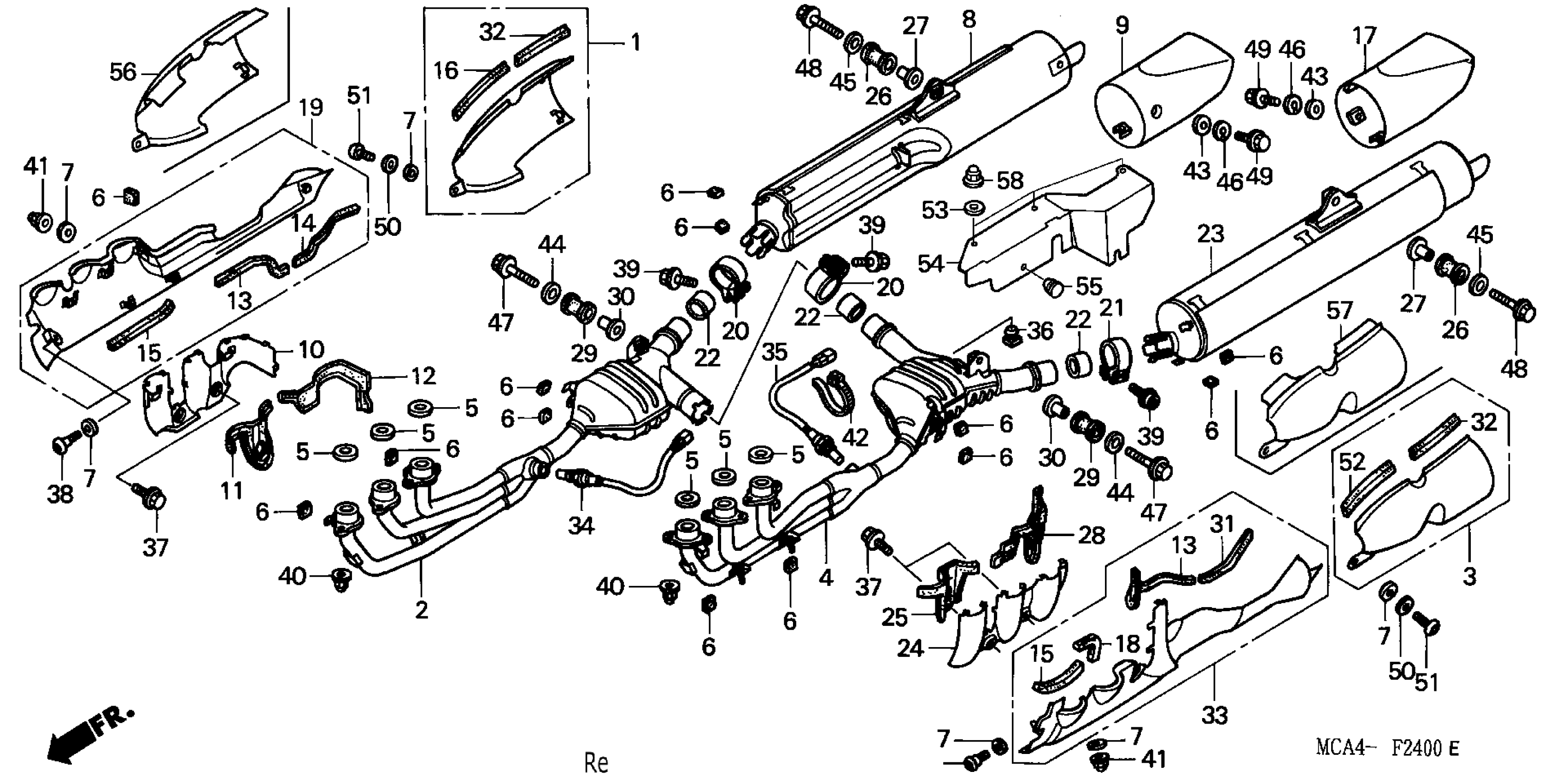

Honda GL1800A (01) GOLD WING, USA, VIN# 1HFSC470-1A000001 TO 1HFSC470-1A099999 MUFFLER Diagram

#

Description
Price

1

PROTECTOR ASSY., R. MUFFLER

18110-MCA-010

Unavailable

2

PIPE, R. EX. This part replaces 18150-MCA-003.

18150-MCA-781

Unavailable

2

PIPE, R. EX.

18150-MCA-781

Unavailable

3

PROTECTOR ASSY., L. MUFFLER

18210-MCA-010

Unavailable

4

PIPE, L. EX. This part replaces 18250-MCA-003.

18250-MCA-781

Unavailable

4

PIPE, L. EX.

18250-MCA-781

Unavailable

5

GASKET, EX. PIPE

18291-MN5-650

$3.52

6

RUBBER, PROTECTOR

18293-MN0-000

$1.94

7

GASKET, PROTECTOR

18292-KBR-000

$3.21

8

MUFFLER, R.

18305-MCA-003

$522.38

9

TAILPIECE, R.

18316-MCA-003

Unavailable

10

PROTECTOR B, R. FR. EX. PIPE

18318-MCA-000

$105.59

11

RUBBER A, R. HEAT GUARD

18321-MCA-000

$18.52

12

RUBBER B, R. HEAT GUARD

18323-MCA-000

$17.04

13

RUBBER C

18329-MCA-000

Unavailable

14

RUBBER E This part replaces 18332-MCA-000.

18429-MCA-780

Unavailable

14

RUBBER E

18429-MCA-780

Unavailable

15

PROTECTOR, HEAT

18333-MCA-000

$4.28

16

RUBBER G, R.

18334-MCA-010

Unavailable

17

TAILPIECE, L.

18336-MCA-003

Unavailable

18

PROTECTOR, HEAT SUB

18338-MCA-000

$3.52

19

PROTECTOR ASSY., R. EX. *NH168M* (VERNIER GRAY METALLIC) This part replaces 18355-MCA-000ZA.

18355-MCA-780ZA

Unavailable

19

PROTECTOR ASSY., R. EX. *NH168M* (VERNIER GRAY METALLIC)

18355-MCA-780ZA

Unavailable

20

BAND, R. MUFFLER

18376-MT3-000

$27.65

21

BAND, L. MUFFLER

18377-MT3-000

$27.65

22

GASKET B, MUFFLER

18392-MAM-000

$16.21

23

MUFFLER, L. (COO) This part replaces 18405-MCA-003.

18405-MCA-305

$789.16

24

PROTECTOR B, L. FR. EX. PIPE

18418-MCA-000

$105.59

25

RUBBER A, L. HEAT GUARD

18421-MCA-000

$18.52

26

RUBBER, MUFFLER MOUNTING

18421-MN5-000

$4.76

27

COLLAR, MUFFLER MOUNTING

18422-MN5-000

$8.25

28

RUBBER B, L. HEAT GUARD

18423-MCA-000

$25.28

29

RUBBER, CHAMBER MOUNTING

18423-MN5-000

Unavailable

30

COLLAR, CHAMBER MOUNTING

18424-MN5-000

$7.67

31

RUBBER E This part replaces 18429-MCA-000.

18429-MCA-780

Unavailable

31

RUBBER E

18429-MCA-780

Unavailable

32

RUBBER F

18432-MCA-000

Unavailable

33

PROTECTOR ASSY., L. EX. *NH168M* (VERNIER GRAY METALLIC) This part replaces 18455-MCA-000ZA.

18455-MCA-780ZA

Unavailable

33

PROTECTOR ASSY., L. EX. *NH168M* (VERNIER GRAY METALLIC)

18455-MCA-780ZA

Unavailable

34

SENSOR, OXYGEN (#1-3-5) This part replaces 36531-MCA-013.

36531-MCA-023

$214.12

34

SENSOR, OXYGEN (#1-3-5)

36531-MCA-023

$214.12

35

SENSOR, OXYGEN (#2-4-6) This part replaces 36532-MCA-013.

36532-MCA-023

Unavailable

36

RUBBER, STAND STOPPER

50524-MG9-000

$6.28

37

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$2.88

38

BOLT, FLANGE (6X10)

90011-HN0-A00

$1.16

39

BOLT, FLANGE SOCKET (8X35)

90130-MCA-000

$2.80

40

NUT, SPECIAL (6MM)

90304-HB3-771

$5.64

41

NUT, CAP (6MM)

90308-MT8-000

$2.46

42

BAND, WIRE (95MM)

90650-KV6-003

$2.90

43

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

43

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

43

WASHER, PLAIN (6MM)

94101-06800

Unavailable

44

WASHER, PLAIN (8MM)

94103-08000

$0.59

45

WASHER, PLAIN (8MM)

94103-08200

$0.61

46

WASHER, SPRING (6MM)

94111-06000

$0.86

47

BOLT, FLANGE (8X45)

95701-08045-00

$1.33

48

BOLT, FLANGE (8X55)

95701-08055-02

$2.17

49

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

50

WASHER (6.5X18)

90545-323-700

$1.81

51

BOLT, SPECIAL (6X12)

90112-MCA-000

$1.83

52

RUBBER G, L.

18337-MCA-000

Unavailable
