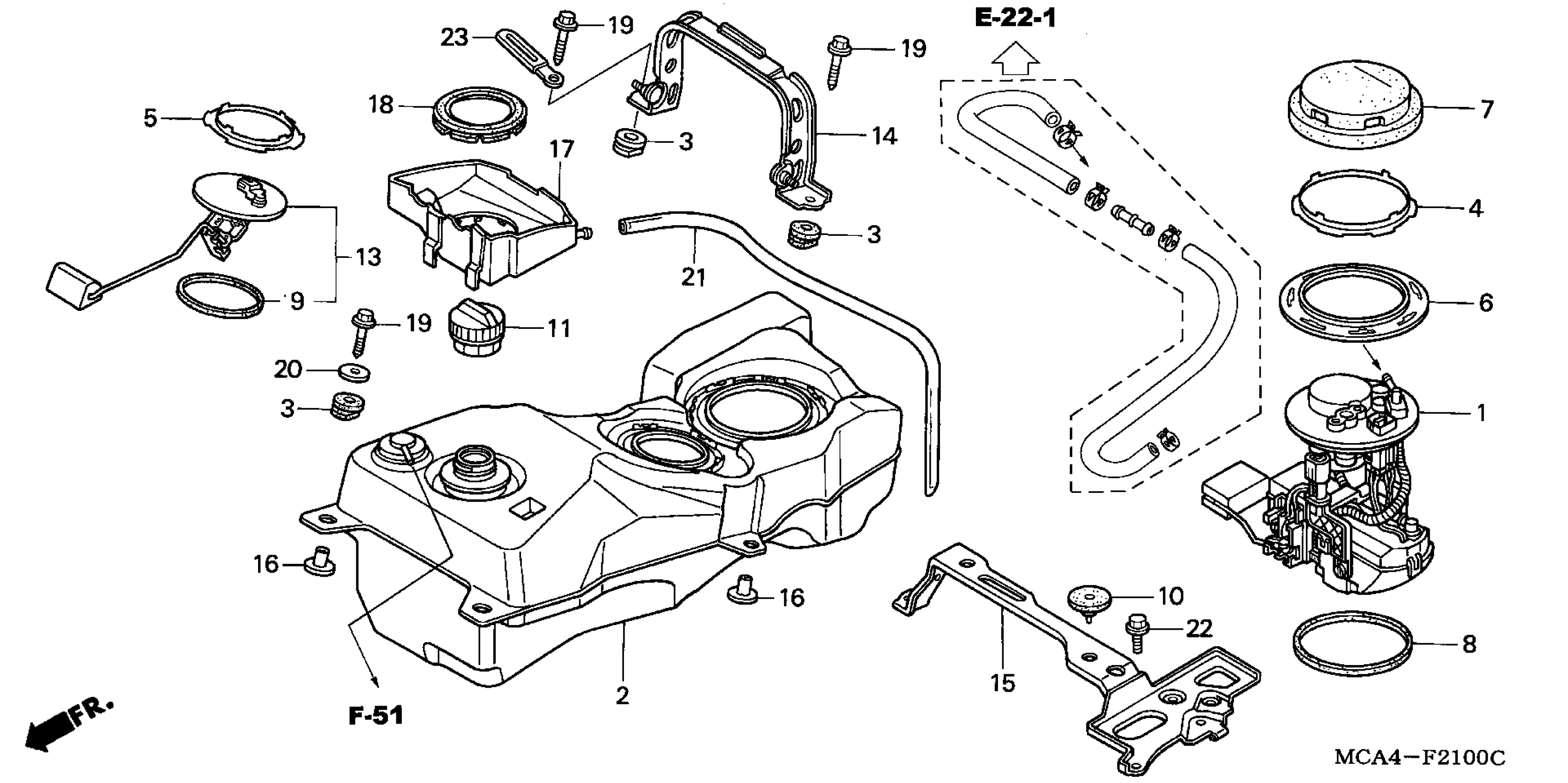

Honda GL1800A (01) GOLD WING, USA, VIN# 1HFSC470-1A000001 TO 1HFSC470-1A099999 FUEL TANK Diagram

PUMP ASSY., FUEL (MSDS) This part replaces 16700-MCA-003.

16700-MCA-013

$403.50

PUMP ASSY., FUEL (MSDS)

16700-MCA-013

$403.50

TANK, FUEL This part replaces 17510-MCA-000.

17510-MCA-S42

$1,397.03

TANK, FUEL This part replaces 17510-MCA-010.

17510-MCA-S42

$1,397.03

RUBBER, FUEL TANK MOUNTING

17515-GBB-000

$4.92

LOCKING RING, FUEL PUMP This part replaces 17515-MCA-003.

17515-MCA-S41

$39.43

LOCKING RING, FUEL UNIT

17516-MCA-003

$11.23

RING, SPACER

17517-MCA-000

Unavailable

COVER, FUEL PUMP

17519-MCA-000

$13.51

GASKET, FUEL PUMP This part replaces 17574-MCA-003.

17574-MCA-S41

$16.52

GASKET, FUEL UNIT This part replaces 17575-MCA-003.

17575-MCA-S41

$22.01

CUSHION, RR. FUEL TANK

17615-MCA-000

$14.56

CAP ASSY., FUEL TANK This part replaces 17620-MCA-013.

17620-MEH-003

$44.22

CAP ASSY., FUEL TANK This part replaces 17620-MCA-A01.

17620-MEH-003

$44.22

FUEL UNIT SET

37080-MCA-000

$696.51

STAY, SHELTER SETTING This part replaces 50250-MCA-000.

50250-MCA-010

$32.38

STAY, SHELTER SETTING

50250-MCA-010

$32.38

STAY, BATTERY SUPPORT This part replaces 50330-MCA-000.

50330-MCA-S40

$59.70

STAY, BATTERY SUPPORT This part replaces 50330-MCA-A00.

50330-MCA-S40

$59.70

STAY, BATTERY SUPPORT This part replaces 50330-MCA-A01.

50330-MCA-S40

$59.70

COLLAR, RR. FENDER

80108-KF9-900

$3.38

TRAY, FUEL FILLER This part replaces 83502-MCA-000.

83502-MCA-A00

$29.79

TRAY, FUEL FILLER

83502-MCA-A00

$29.79

GASKET, FUEL TRAY

83503-MCA-000

Unavailable

BOLT, SPECIAL NSHF (6X34)

90104-MCA-000

$1.61

WASHER, TANK SETTING

90136-428-870

$1.56

BULK HOSE, VACUUM (8X1000) (8X840)

95005-80001-20M

$23.91

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
