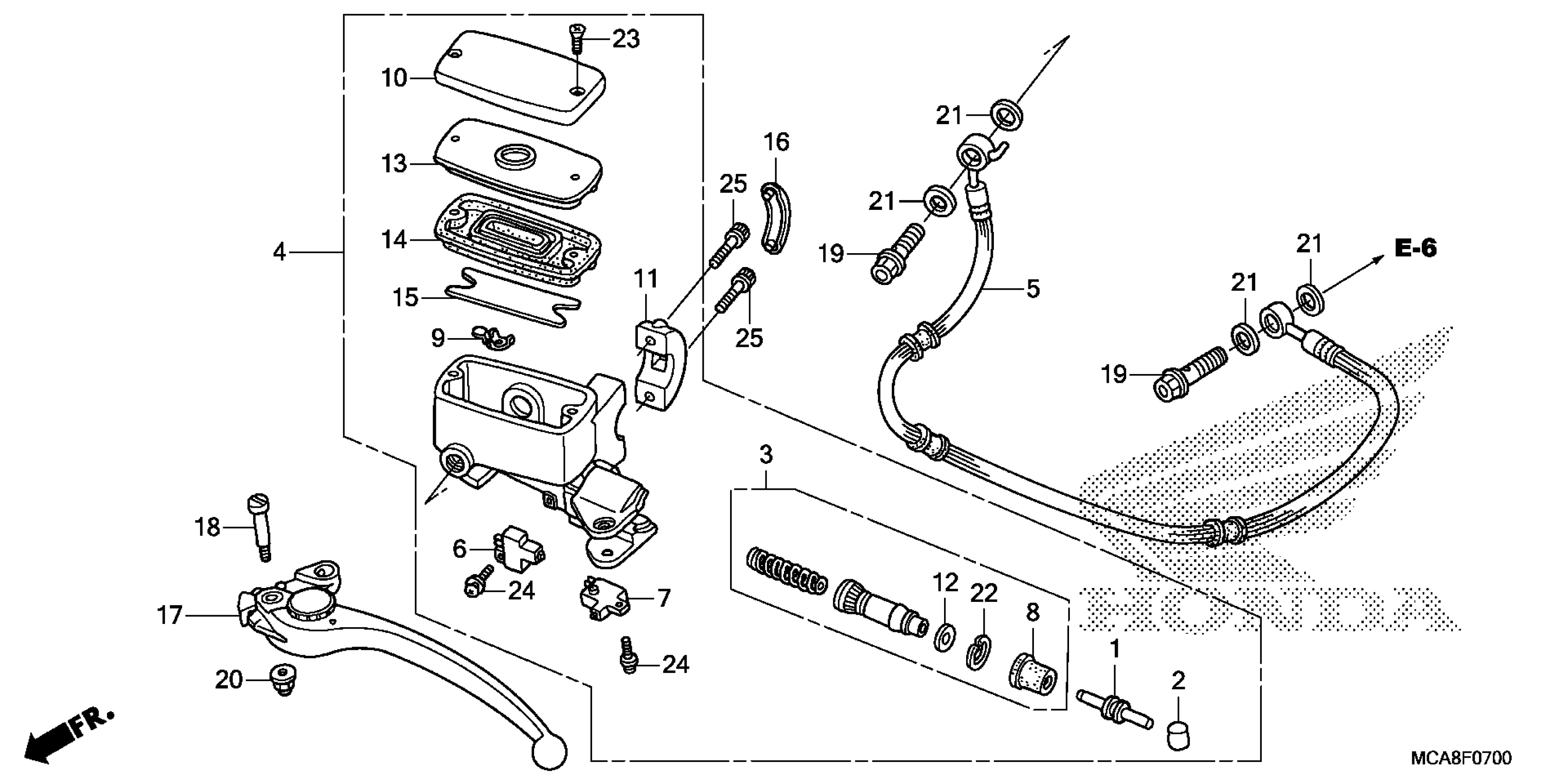

Honda GL18009YA (16) MOTORCYCLE, JPN, VIN# JH2SC68Z-GK200001 TO JH2SC68Z-GK299999 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

ROD, PUSH

22884-MB0-006

$20.66

2

BUSH

22885-MB0-006

$12.95

3

PISTON SET, MASTER

22886-MCA-006

$34.81

4

MASTER CYLINDER SUB-ASSY., CLUTCH (NISSIN)

22890-MCA-S41

$235.14

4

MASTER CYLINDER SUB-ASSY., CLUTCH (NISSIN) This part replaces 22890-MCA-305.

22890-MCA-S41

$235.14

5

HOSE, CLUTCH

22900-MCA-000

$49.55

6

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

7

SWITCH ASSY., CLUTCH CRUISE (TOYO)

35335-MG9-951

$23.58

8

BOOT

45504-410-003

$12.16

9

PROTECTOR

45512-MA6-006

$4.28

10

CAP, MASTER CYLINDER

45513-MAM-A61

$33.75

11

HOLDER, MASTER CYLINDER

45517-MAM-A62

$14.27

12

PLATE, STOPPER

45518-MB0-006

$1.84

13

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

14

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

15

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-MN5-006

$4.49

16

CAP, BRAKE MASTER CYLINDER HOLDER

45553-MAM-A60

$3.12

17

LEVER ASSY., L. HANDLE

53180-MCA-006

$64.70

17

LEVER ASSY., L. HANDLE This part replaces 53180-MCA-305.

53180-MCA-006

$64.70

18

BOLT, HANDLE LEVER

90114-MG9-951

$7.88

19

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

20

NUT, CAP (6MM)

90202-ZV0-000

$2.91

21

WASHER, OIL BOLT

90545-300-000

$3.99

22

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

23

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

23

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

24

SCREW-WASHER (4X12)

93893-04012-07

$1.49

24

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

25

BOLT, SOCKET (6X20)

96600-06020-17

$1.49
