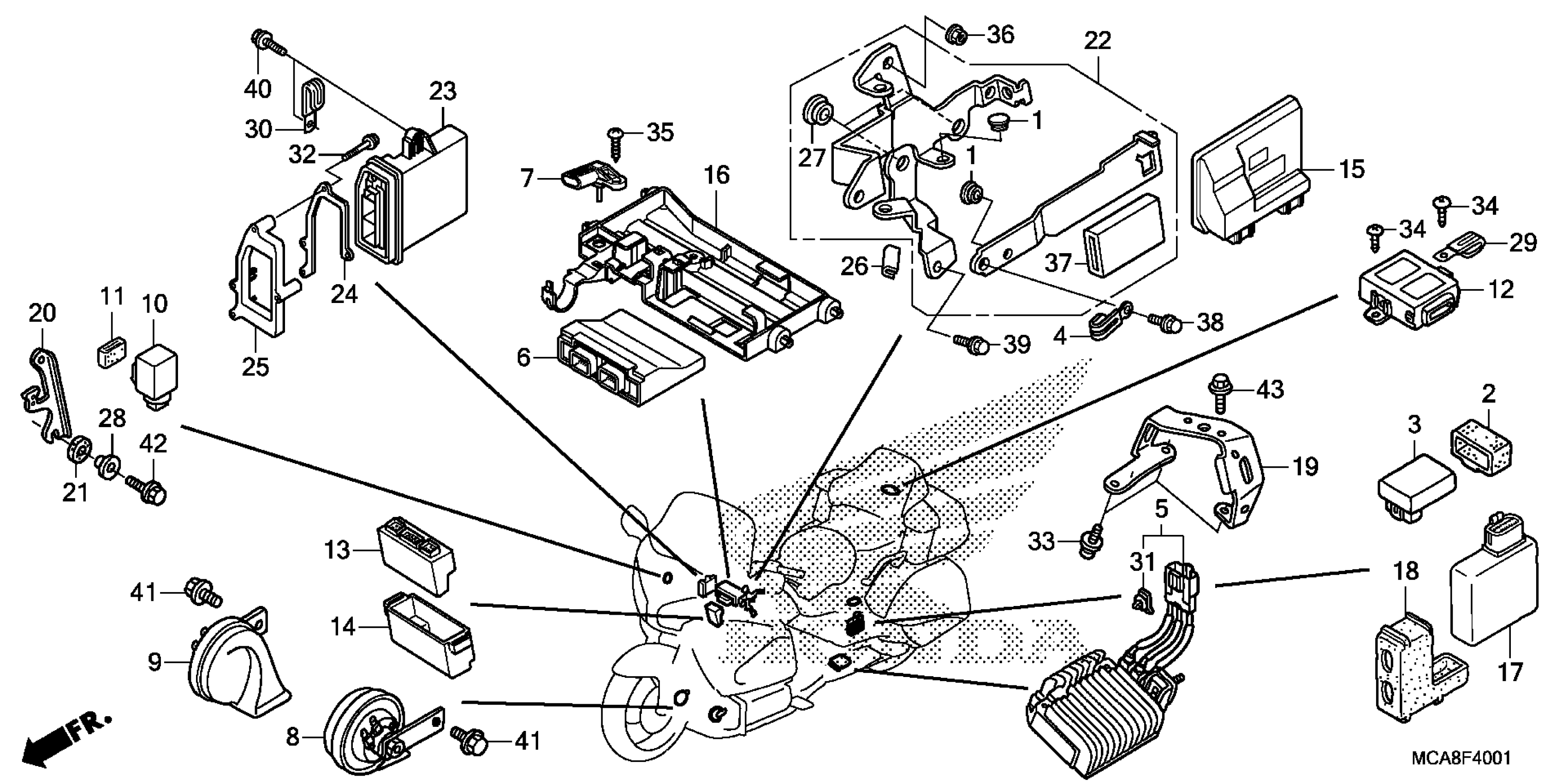

Honda GL18008AC (14) MOTORCYCLE, JPN, VIN# JH2SC68M-EK200001 TO JH2SC68M-EK299999 CONTROL UNIT (AIRBAG) Diagram

#

Description
Price

1

RUBBER, FUEL PUMP STOPPER

16712-MN5-000

$2.64

2

CUSHION, REVERSE REGULATOR

30401-MCA-000

$5.43

3

REGULATOR, REVERSE

31710-MCA-S41

$142.39

4

CLIP, WIRE HARNESS

32170-KR5-000

$1.43

5

RESISTOR ASSY., REVERSE

36280-MCA-A61

$194.19

6

CONTROLLER, AUTO CRUISE

36700-MCA-S41

$537.41

7

SENSOR ASSY., MAP

37830-MEL-003

$116.08

8

HORN ASSY. (HIGH)

38110-MCA-003

$81.23

9

HORN ASSY. (LOW)

38120-MCA-003

$81.23

10

RELAY, TURN SIGNAL

38301-KTF-671

$32.56

11

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$2.80

12

CONTROL UNIT, TRUNK LOCK & OPEN

38380-MCA-S41

Unavailable

13

ABS CONTROL UNIT

38600-MCA-A71

$899.41

14

CUSHION, ABS CONTROL UNIT

38605-MCA-A80

$19.14

15

UNIT COMP PGM-FI/IGN This part replaces 38770-MCA-R63.

38770-MCA-R64

$1,311.90

15

UNIT COMP PGM-FI/IGN

38770-MCA-R64

$1,311.90

16

TRAY, AUTO CRUISE UNIT

38775-MCA-S40

$14.43

17

HEATER UNIT, SEAT

39305-MCA-S41

$249.16

18

CUSHION, SEAT HEATER UNIT

39310-MCA-A71

$4.17

19

STAY, REVERSE RESISTOR

50331-MCA-S40

$29.64

20

PLATE, STAY (UPPER)

64513-MCA-A60

$4.86

21

RUBBER, SEAT HINGE

77218-GB2-720

$2.43

22

STAY ASSY., RETAINER

77835-MCA-A80

$34.29

23

AIRBAG UNIT (KEIHIN) (CONTRLD PART:CONTACT TECHLINE OR USE TL CONNECT TO ORDER)

77960-MCA-S81

$616.22

24

HOLDER A, CONNECTOR COVER

77961-MCA-A80

$5.32

25

HOLDER B, CONNECTOR COVER

77962-MCA-A80

$55.03

26

SEAL, SADDLEBAG

81215-MZ0-700

$1.20

27

GROMMET, SIDE COVER

83551-376-000

Unavailable

28

WASHER (6X20)

90512-MBY-000

$5.23

29

CLIP

91411-679-000

$14.75

30

CLIP (2X70)

91413-679-000

$8.30

31

CLIP, CONNECTOR (BROWN)

91556-SP0-003

$4.58

32

SCREW, PAN (4X25)

93500-04025-0A

$1.71

33

SCREW-WASHER (5X8)

93892-05008-08

$0.96

34

SCREW, TAPPING (5X12)

93903-25280

$1.23

35

SCREW, TAPPING (5X20)

93903-25480

$0.61

36

NUT, FLANGE (6MM)

94050-06080

$0.59

37

BULK HOSE, VACUUM (14X1000) (14X100) (BULK HOSE: 95005-14001-30M)

95005-14001-30M

Unavailable

38

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

39

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.48

40

BOLT, FLANGE (6X18)

95701-06018-08

$1.48

41

BOLT, FLANGE (8X16)

95701-08016-08

$1.59

42

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

43

BOLT, FLANGE (6X16)

96001-06016-07

$0.96
