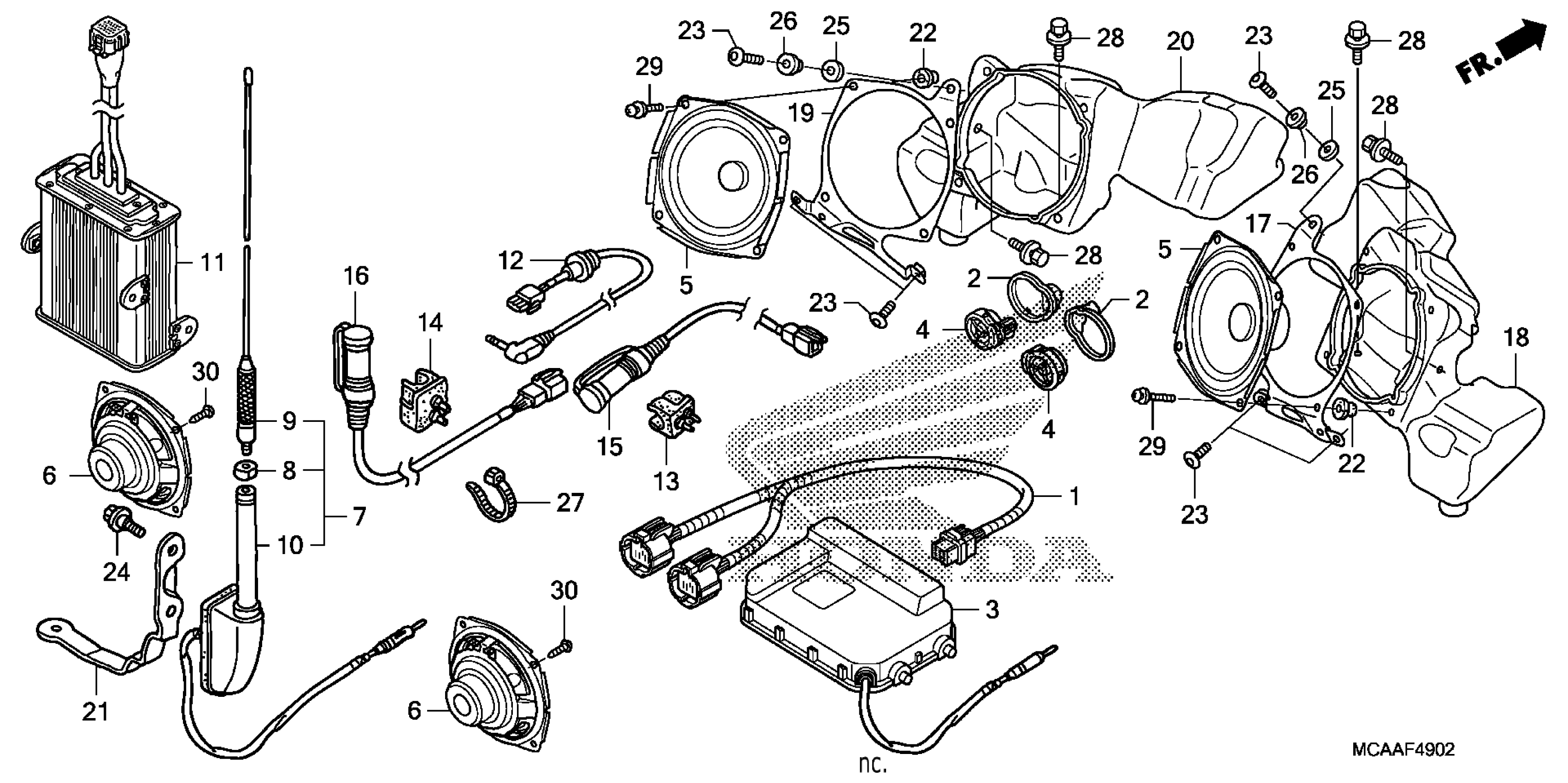

Honda GL18008A (10) GOLD WING, USA, VIN# 1HFSC47M-AA900001 AUDIO UNIT (GL1800'06-) (AIRBAG) Diagram

SUB-HARNESS, AUDIO & HAZARD SWITCH

32196-MCA-A80

$56.34

COVER, TWEETER

33112-MCA-A70

$6.20

AUDIO UNIT

39115-MCA-R61

$3,356.49

SPEAKER ASSY., TWEETER This part replaces 39120-S6M-A01.

39120-MCA-S41

$49.66

SPEAKER UNIT, FR. This part replaces 39130-MCA-A71.

39130-MCA-S41

$325.87

SPEAKER UNIT, FR.

39130-MCA-S41

$325.87

SPEAKER UNIT, RR. This part replaces 39140-MCA-A71.

39140-MCA-S41

$325.93

SPEAKER UNIT, RR.

39140-MCA-S41

$325.93

ANTENNA ASSY., RADIO

39150-MCA-A62

$237.43

NUT, ANTENNA

39153-MN5-003

$4.12

ELEMENT, ANTENNA (COO) This part replaces 39157-MCA-A62.

39157-MCA-305

$68.16

ELEMENT, ANTENNA (COO)

39157-MCA-305

$68.16

FEEDER, ANTENNA

39158-MCA-A61

$81.44

AMPLIFIER

39160-MCA-A71

Unavailable

CORD (AUX) This part replaces 39170-MCA-000.

39170-MCA-010

$53.20

CORD (AUX)

39170-MCA-010

$53.20

CONNECTOR, FR. HOLDER

39242-MCA-000

$7.36

CONNECTOR, RR. HOLDER

39243-MCA-000

$7.36

LEAD, DRIVER HEAD SET JUNCTION

39245-MCA-H90

$90.51

LEAD, PASSENGER HEAD SET JUNCTION

39246-MCA-003

$98.02

PLATE, R. SPEAKER BOX

64237-MCA-A70

$14.30

BOX, R. FR. SPEAKER This part replaces 64243-MCA-A60.

64243-MCA-S40

$123.03

BOX, R. FR. SPEAKER

64243-MCA-S40

$123.03

PLATE, L. SPEAKER BOX

64247-MCA-A70

$14.30

BOX, L. FR. SPEAKER This part replaces 64248-MCA-A60.

64248-MCA-S40

$123.03

BOX, L. FR. SPEAKER

64248-MCA-S40

$123.03

PLATE, ANTENNA SETTING

81175-MCA-010

$20.52

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

SCREW, PAN (6X14)

90118-MR1-000

$3.10

BOLT, FLANGE (6MM)

90139-MCA-A60

$2.92

WASHER, BUMPER BOLT

90148-SA0-000

$3.62

WASHER (6X20) COLLAR, HEADLIGHT SETTING

90512-300-000

$3.08

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

BOLT-WASHER (6X12)

93404-06012-07

$1.55

BOLT-WASHER (6X12) This part replaces 93404-06012-08.

93404-06012-07

$1.55

SCREW-WASHER (5X20)

93892-05020-07

$1.49

SCREW, TAPPING (5X12)

93901-25280

$1.49
