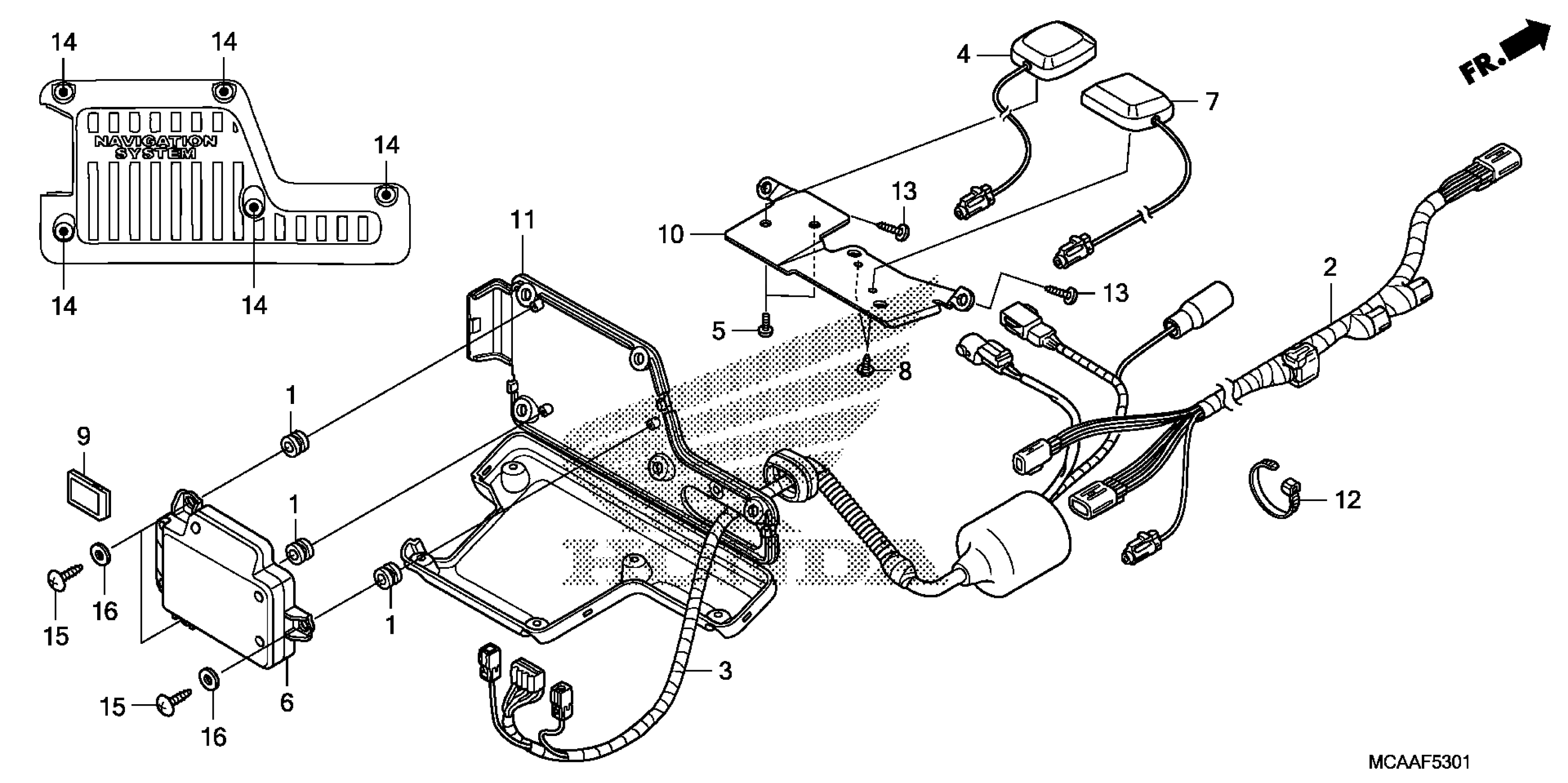

Honda GL18008A (09) GOLD WING, USA, VIN# 1HFSC47M-9A800001 TO 1HFSC47M-9A899999 NAVIGATION & XM UNIT Diagram

RUBBER, MOUNTING

19639-GBC-000

$1.49

SUB-HARNESS, NAVIGATION

32119-MCA-R60

$107.30

SUB-HARNESS, NAVIGATION UNIT

32150-MCA-R40

$106.41

ANTENNA ASSY., XM

39180-MCA-R40

$117.84

SCREW, PAN (3X6)

39181-MCA-R40

$1.79

NAVIGATION & XM UNIT (CONTRLD PART:CONTACT TECHLINE OR USE TL CONNECT TO ORDER)

39201-MCA-R40

Unavailable

ANTENNA ASSY., NAVIGATION

39230-MCA-R40

Unavailable

SCREW, TAPPING (2.5X5)

39231-MCA-R40

$1.79

CARD, SD (2GB) (CONTRLD PART:CONTACT TECHLINE OR USE TL CONNECT TO ORDER)

39250-MCA-R40

$495.13

CARD, SD (MAP DATA 2018 ) | (Optional).

39250-MCA-W36

Unavailable

STAY, RECEIVER

64270-MCA-R40

$10.25

COVER, NAVIGATION UNIT

81142-MCA-A70

$48.48

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

SCREW, TAPPING (4X12)

93903-24380

$1.49

SCREW, TAPPING (5X12)

93903-25280

$1.49

SCREW, TAPPING (5X12) (PO)

93913-15220

$1.49

WASHER, PLAIN (5MM)

94103-05800

$1.49
