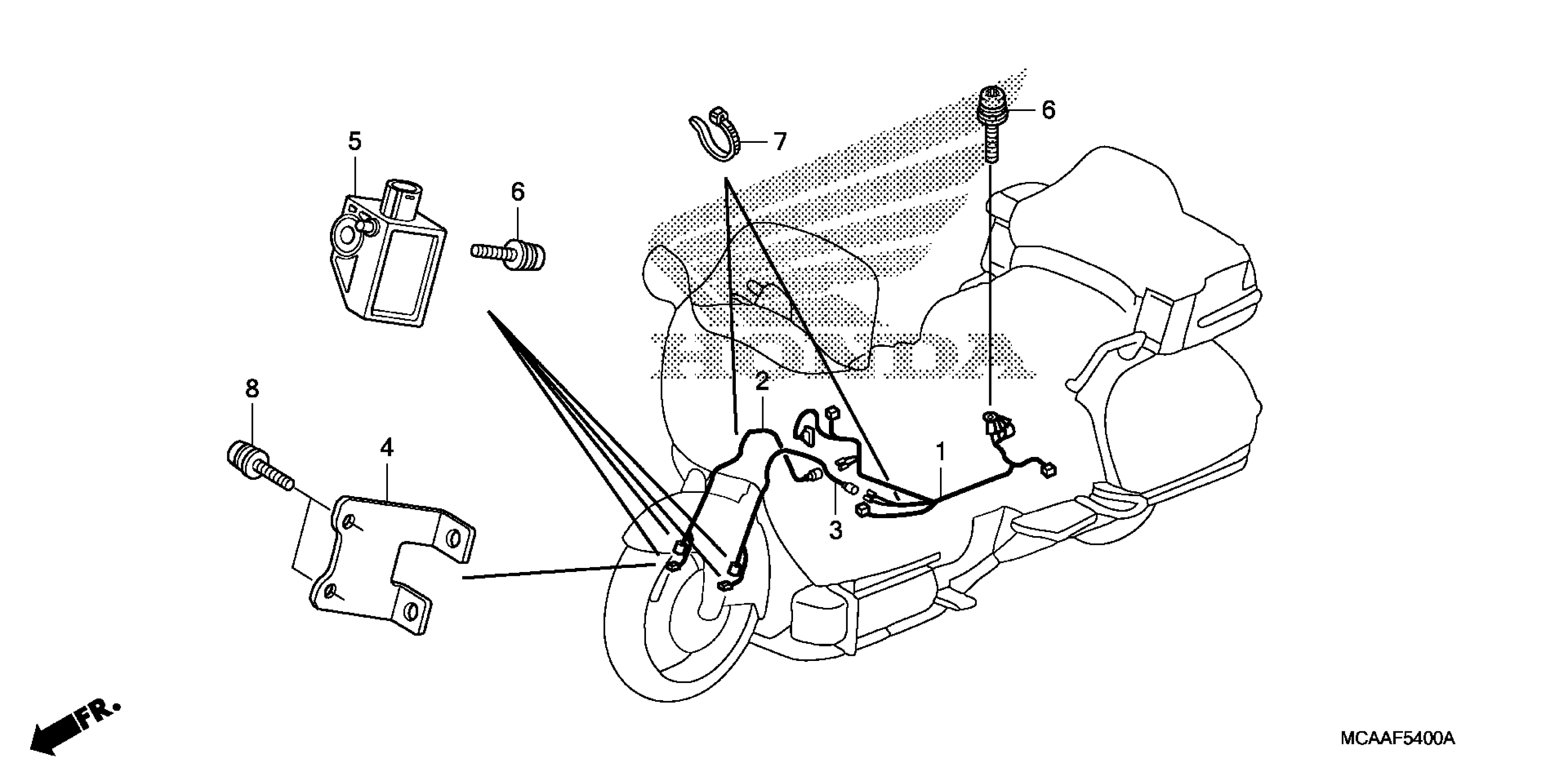

Honda GL18008A (09) GOLD WING, USA, VIN# 1HFSC47M-9A800001 TO 1HFSC47M-9A899999 AIRBAG HARNESS Diagram

#

Description

Price

1

SUB-HARNESS, AIRBAG

32191-MCA-A80

$427.41

2

SUB-HARNESS, R. G SENSOR

32192-MCA-A80

$393.30

3

SUB-HARNESS, L. G SENSOR

32193-MCA-A80

$423.32

4

COVER, R. G SENSOR (UPPER)

51612-MCA-A80

$6.54

5

SENSOR ASSY., G

77930-MCA-A81

$94.29

6

BOLT, TORX GROUND (6X20)

90137-S84-A01

$5.38

7

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.90

8

BOLT, FLANGE (6X16)

96001-06016-07

$0.96
