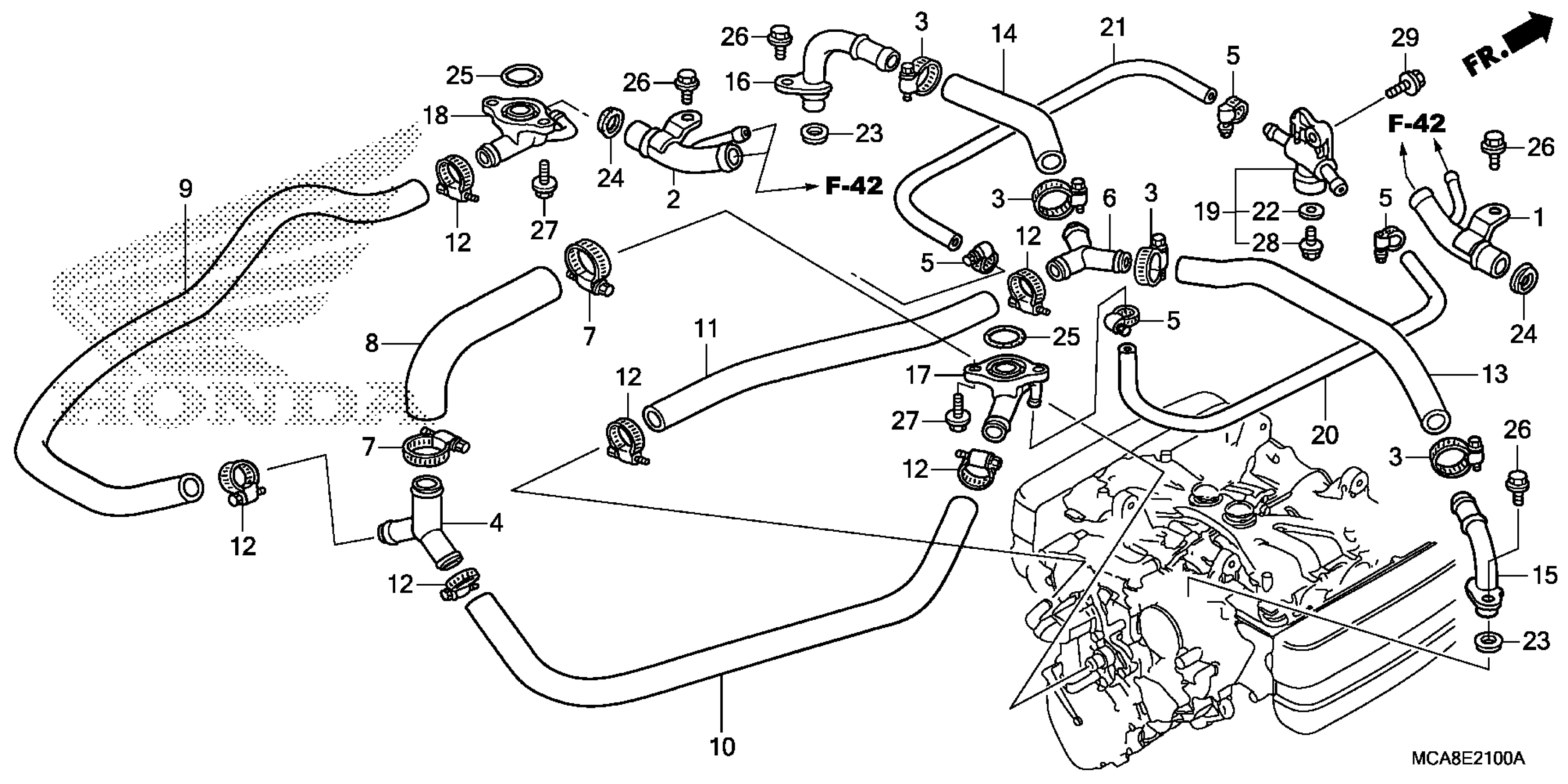

Honda GL18007AC (17) MOTORCYCLE, JPN, VIN# JH2SC68N-HK300001 WATER PIPE Diagram

#

Description
Price

1

PIPE, R. WATER

19411-MCA-780

$33.15

2

PIPE, L. WATER

19421-MCA-780

$33.15

3

CLAMP, WATER HOSE (25MM)

19504-KY1-003

$10.29

4

JOINT, THREE WAY

19506-MCA-000

$14.08

5

CLAMP, WATER HOSE

19507-MAL-600

$5.69

6

JOINT, THREE WAY

19507-MCA-000

$8.51

7

CLAMP, R. RADIATOR HOSE

19509-MM5-003

$13.58

8

HOSE A, WATER

19511-MCA-000

$16.09

9

HOSE B, WATER

19512-MCA-S40

$30.52

10

HOSE C, WATER

19513-MCA-S40

$29.79

11

HOSE A, BYPASS

19516-MCA-000

$21.26

12

CLAMP, HOSE (24-32MM)

19516-ML7-691

$14.40

13

HOSE B, BYPASS

19517-MCA-000

$13.34

14

HOSE C, BYPASS

19518-MCA-000

$6.82

15

PIPE, R. BYPASS

19530-MCA-000

$28.82

16

PIPE, L. BYPASS

19540-MCA-000

$38.39

17

JOINT, R. WATER HOSE

19710-MCA-010

$18.62

18

JOINT, L. WATER HOSE

19720-MCA-000

$18.03

19

JOINT, DRAIN

19730-MCA-000

Unavailable

20

HOSE A, DRAIN

19732-MCA-010

$8.52

21

HOSE B, DRAIN

19733-MCA-000

$5.67

22

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

23

SEAL, WATER PIPE

91315-MCA-A00

$2.85

24

SEAL, WATER PIPE (22.5MM)

91316-MCA-A00

$4.35

25

O-RING (23X2.4)

91317-MCA-A00

$2.62

26

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

27

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

28

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

29

BOLT, FLANGE (6X16)

96300-06016-00

$1.49

29

BOLT, FLANGE (6X16) This part replaces 96400-06016-00.

96300-06016-00

$1.49
