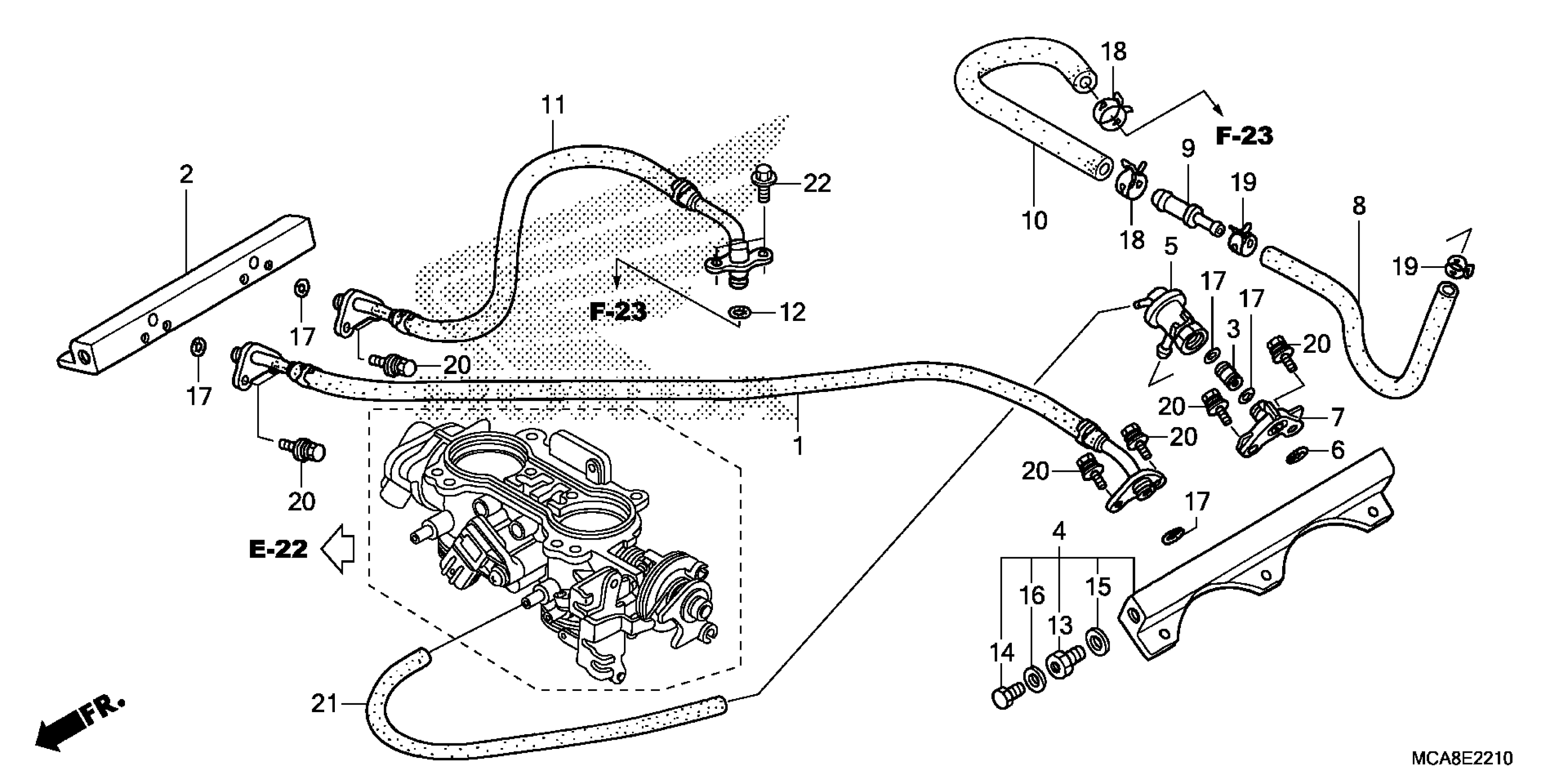

Honda GL18007AC (17) MOTORCYCLE, JPN, VIN# JH2SC68N-HK300001 THROTTLE BODY (TUBING) Diagram

HOSE, FUEL FEED

16527-MCA-A61

$99.51

PIPE, R. FUEL

16610-MCA-780

$111.95

JOINT, STRAIGHT

16614-MCA-000

$4.52

PIPE, L. FUEL

16620-MCA-780

$414.39

REGULATOR ASSY., PRESSURE

16740-MCA-003

$76.08

O-RING, PRESSURE REGULATOR

16741-PG7-005

$3.47

STAY, PRESSURE REGULATOR

16745-MCA-000

$17.25

HOSE, FUEL RETURN

17525-MCA-003

$47.21

JOINT, FUEL RETURN

17526-MCA-000

$6.95

HOSE A, FUEL RETURN

17527-MCA-A60

$12.31

HOSE, FUEL FEED

17528-MCA-A61

$204.41

O-RING (7.52X3.53)

17530-MCA-000

$4.95

BOLT, BANJO (12MM)

90008-MCA-000

$10.00

BOLT, SEALING (6MM)

90009-PP4-E01

$6.54

WASHER, SEALING (12MM)

90428-PD6-003

$5.20

WASHER, SEALING (6MM)

90430-PD6-003

$4.01

O-RING (7.8X1.9)

91302-MCA-000

$2.30

CLAMP, TUBE (D12) (FRAME NO.)

91405-PD1-004

$9.24

CLAMP, FUEL HOSE (D10.5)

91406-SL4-931

$4.88

BOLT-WASHER (6X16)

93403-06016-00

$1.55

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
