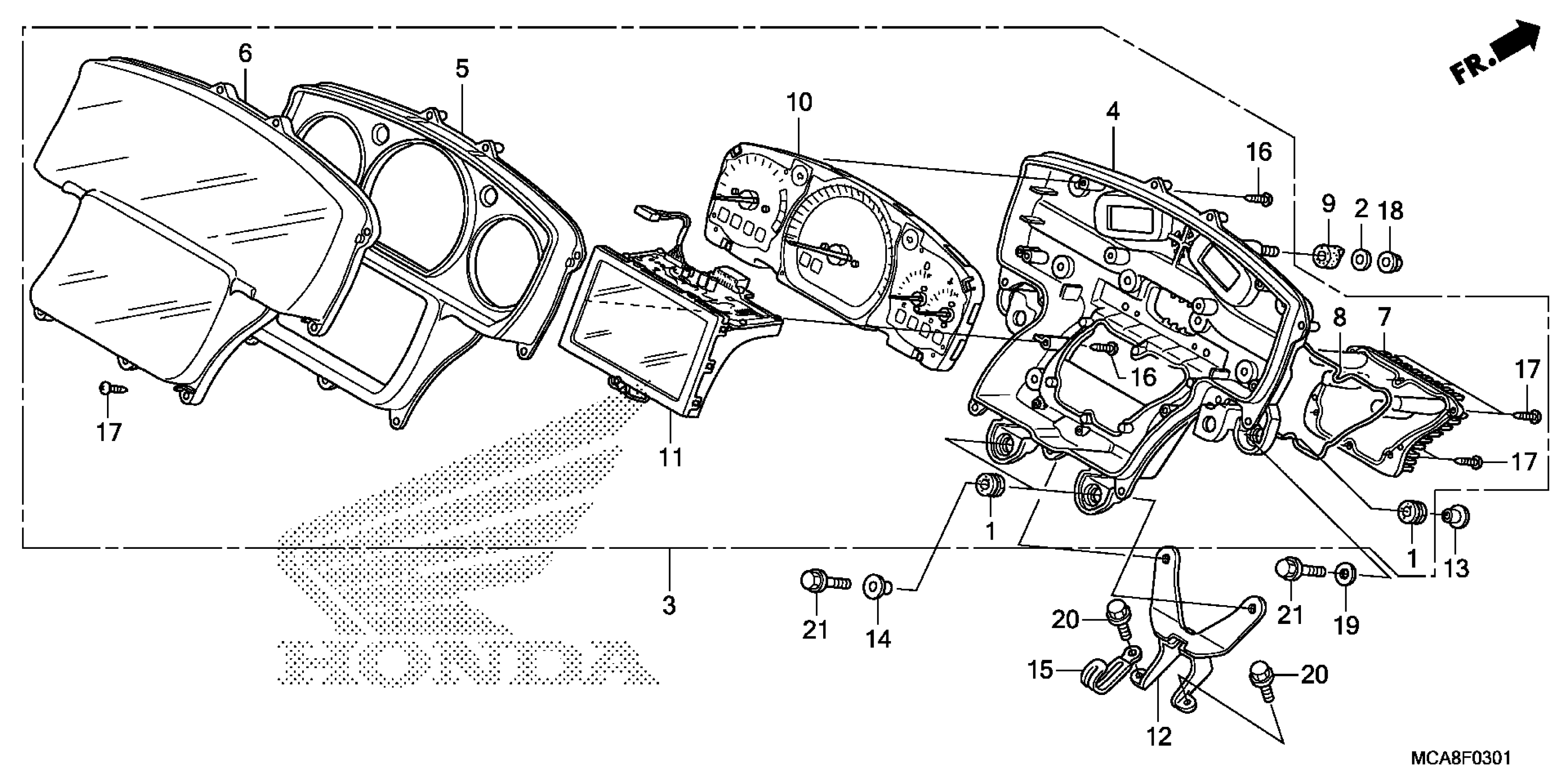

Honda GL18007AC (17) MOTORCYCLE, JPN, VIN# JH2SC68N-HK300001 SPEEDOMETER (NAVIGATION) Diagram

#

Description
Price

1

GROMMET, AIR CLEANER HOUSING

17251-KE8-690

$2.47

2

WASHER, PIVOT (Honda Code 0283556)

17936-921-000

$1.49

3

METER ASSY., COMBINATION (MPH/KPH)(COO)

37100-MCA-307

$5,201.15

4

CASE ASSY. (LOWER)

37101-MCA-A81

$219.80

5

PLATE ASSY., REFLECTING

37102-MCA-H31

$114.18

6

LENS

37103-MCA-H31

$176.72

6

LENS This part replaces 37103-MCA-305.

37103-MCA-H31

$176.72

7

HEAT SINK

37104-MCA-H31

$152.56

8

GASKET

37105-MCA-H31

$5.05

9

RUBBER, METER SETTING

37109-MBG-000

$2.34

10

METER, COMBINATION

37110-MCA-S72

$872.23

10

METER, COMBINATION This part replaces 37110-MCA-307.

37110-MCA-S72

$872.23

11

LCD ASSY., COLOR

37230-MCA-S82

$3,696.41

11

LCD ASSY., COLOR This part replaces 37230-MCA-306.

37230-MCA-S82

$3,696.41

12

STAY, METER MOUNTING

53133-MCA-A61

$14.66

13

COLLAR, FUEL TANK

90509-750-000

$4.14

14

COLLAR, SIDE COVER SETTING

90522-KF0-000

$4.48

15

CLIP, WIRE

91406-166-000

$3.83

16

SCREW, TAPPING (3X16)

93903-22420

$1.49

17

SCREW, TAPPING (4X16)

93903-24420

$1.49

18

NUT, FLANGE (6MM)

94050-06080

$1.49

19

WASHER, PLAIN (6MM)

94103-06000

$1.49

20

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

21

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
