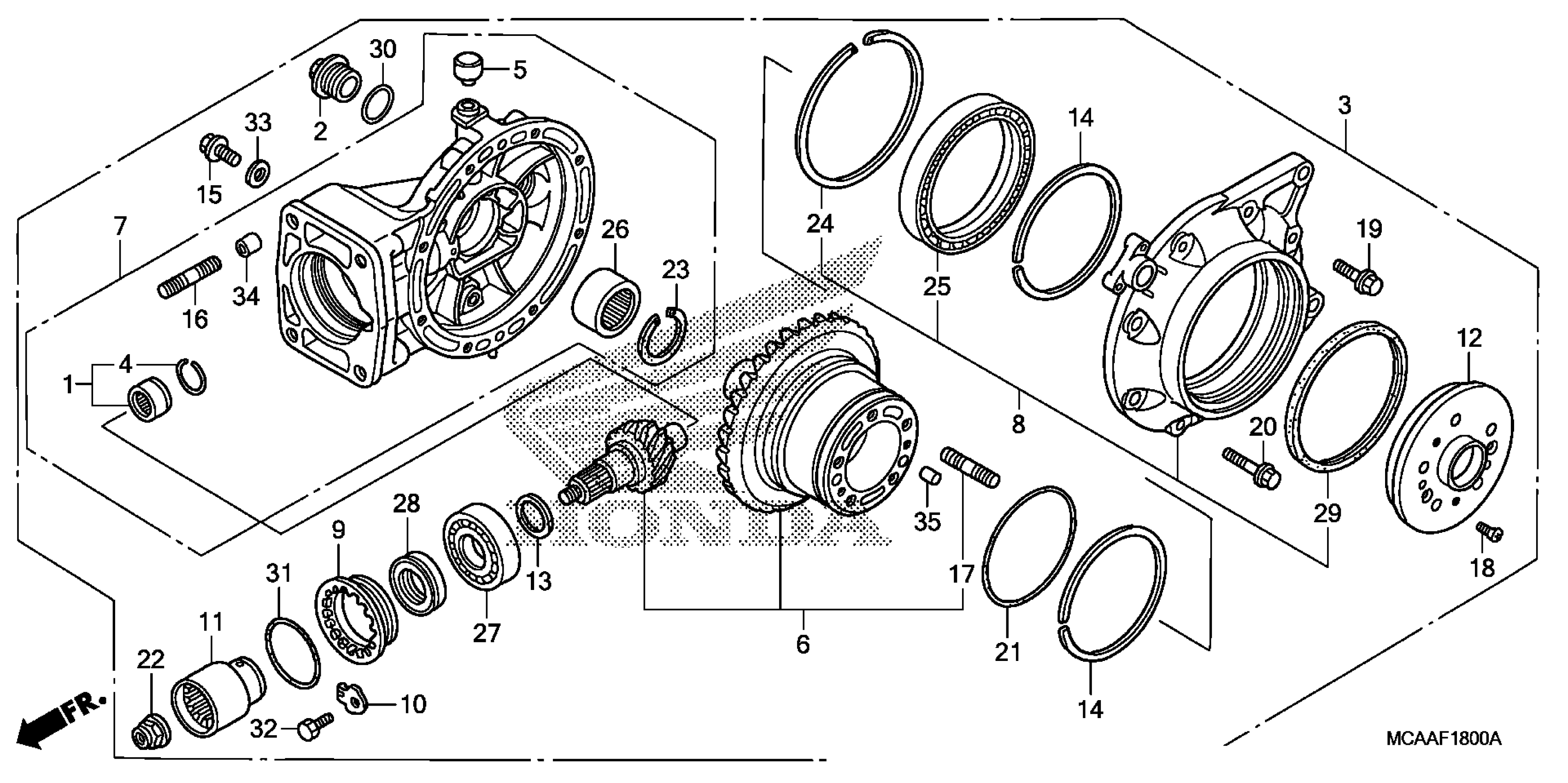

Honda GL18007A (07) GOLD WING, USA, VIN# 1HFSC47L-7A600001 TO 1HFSC47L-7A699999 FINAL DRIVEN GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06910-MCA-000

$18.21

2

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

3

GEAR ASSY., FINAL

41300-MCA-A21

$1.00

4

RING, STOPPER

41305-MB4-770

$5.62

5

CAP, BREATHER

41306-MB0-020

$9.24

6

GEAR SET, FINAL

41310-MCA-010

$544.92

7

CASE SUB-ASSY., FINAL GEAR

41311-MCA-A21

$1,207.38

8

COVER SUB-ASSY., FINAL GEAR

41320-MCA-000

$389.10

9

RETAINER, BEARING

41331-MN5-000

$115.31

10

LOCK A, BEARING ADJUSTING (SINGLE TAB)

41332-415-000

$2.51

10

LOCK B, BEARING ADJUSTING (DOUBLE TABS)

41333-415-000

$2.51

11

JOINT, PINION

41410-MN5-000

$62.40

12

FLANGE, FINAL GEAR SIDE

41441-MCA-010

$164.98

13

SHIM A, PINION GEAR (1.32)

41450-MG9-000

$7.18

13

SHIM B, PINION GEAR (1.38)

41451-MG9-000

$7.18

13

SHIM C, PINION GEAR (1.44)

41452-MG9-000

$7.18

13

SHIM D, PINION GEAR (1.50)

41453-MG9-000

$7.18

13

SHIM E, PINION GEAR (1.56)

41454-MG9-000

$7.18

13

SHIM F, PINION GEAR (1.62)

41455-MG9-000

$7.18

13

SHIM G, PINION GEAR (1.68)

41456-MG9-000

$7.18

14

SHIM A, RING GEAR (1.82)

41530-MCA-000

$7.85

14

SHIM B, RING GEAR (1.88)

41531-MCA-000

$7.85

14

SHIM C, RING GEAR (1.94)

41532-MCA-000

$7.85

14

SHIM D, RING GEAR (2.00)

41533-MCA-000

$7.85

14

SHIM E, RING GEAR (2.06)

41534-MCA-000

$7.85

14

SHIM F, RING GEAR (2.12)

41535-MCA-000

$7.85

14

SHIM G, RING GEAR (2.18)

41536-MCA-000

$7.85

14

SHIM H, RING GEAR (2.24)

41537-MCA-000

$7.85

14

SHIM I, RING GEAR (2.30)

41538-MCA-000

$7.85

14

SHIM J, RING GEAR (2.36)

41539-MCA-000

$7.85

14

SHIM K, RING GEAR (2.42)

41540-MCA-000

$7.85

14

SHIM L, RING GEAR (2.48)

41541-MCA-000

$7.85

14

SHIM M, RING GEAR (2.54)

41542-MCA-000

$7.57

14

SHIM N, RING GEAR (2.60)

41543-MCA-000

$7.95

14

SHIM P, RING GEAR (2.66)

41544-MCA-000

$8.28

15

BOLT, PLUG (14MM)

90118-MCH-000

$6.78

16

BOLT, STUD (12X53)

90124-MCA-300

$5.02

17

BOLT, STUD (12X46)

90125-MCA-300

$4.95

18

SCREW, FLAT (6X16)

90132-MCA-000

$1.49

19

BOLT, FLANGE (8X30)

90133-MCA-000

$1.49

20

BOLT, FLANGE (10X38)

90134-MCA-000

$2.48

21

O-RING

90351-MCA-003

$5.81

22

NUT, HEX. (16MM)

90381-MT3-000

$7.95

23

CIRCLIP (INNER) (47MM)

90652-MCA-003

$4.34

24

CIRCLIP (INNER) (125MM)

90653-MCA-000

$19.64

25

BEARING, RADIAL BALL (100X125X26)

91051-MCA-003

$118.51

26

BEARING, NEEDLE (30X47X23)

91052-MCA-003

$29.10

27

BEARING, RADIAL BALL (QJ3/28V1)

91061-MT3-003

$67.87

28

OIL SEAL (39X56X7) (NOK)

91262-MY3-003

$13.47

29

OIL SEAL (110X125X7)

91265-MCA-003

$21.71

30

O-RING (30.8MM) (Honda Code 0001065)

91302-001-020

$3.75

31

O-RING (64.5X3.5) (ARAI)

91359-MG9-003

$4.53

32

BOLT, HEX. (6X12) BOLT, FLANGE (6X12)

92101-06012-0A

$1.49

33

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

34

PIN A, DOWEL (14X20)

94301-14200

$2.28

35

PIN, DOWEL (10X16)

94303-10160

$2.34
