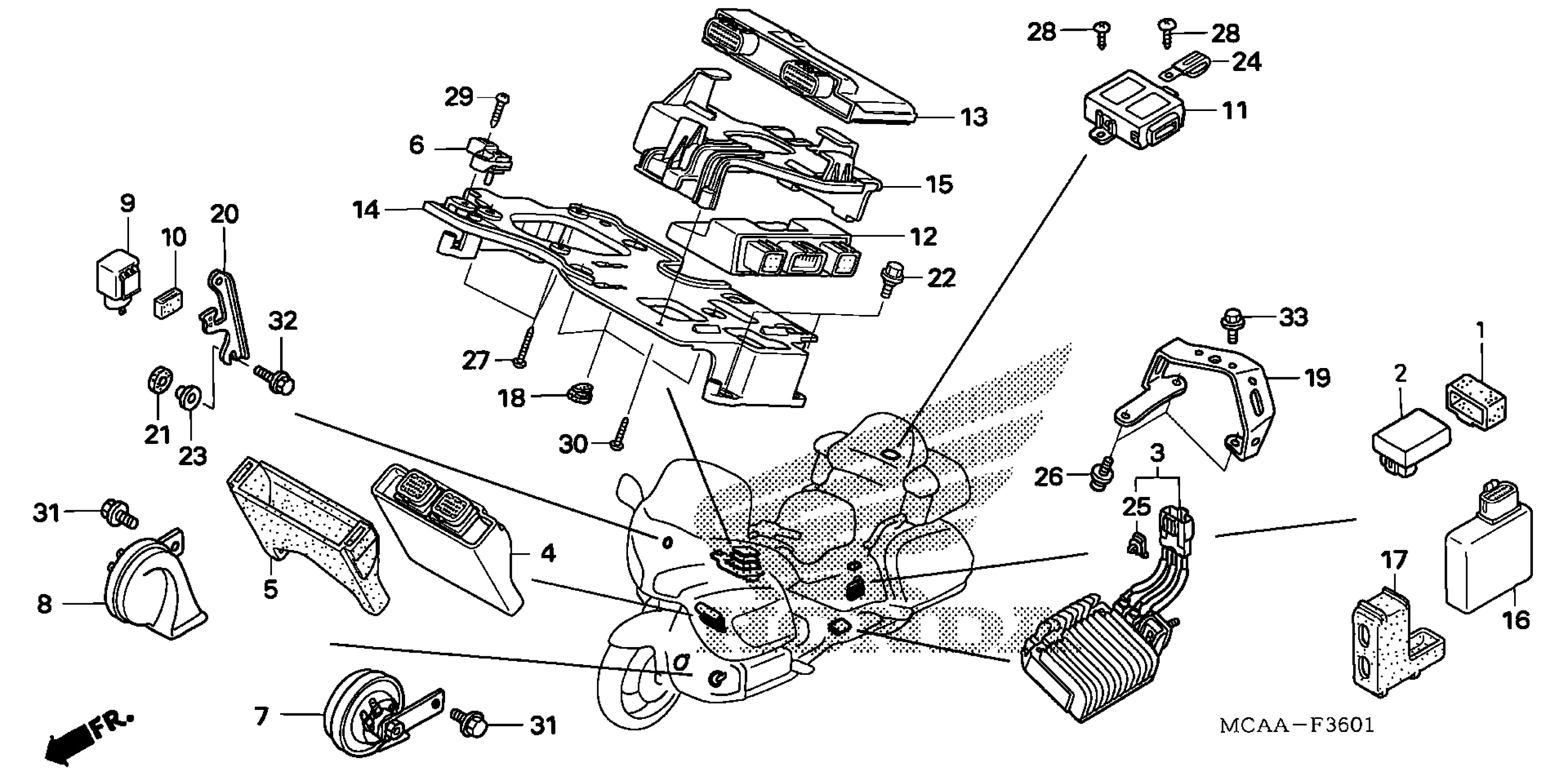

Honda GL18007A (07) GOLD WING, USA, VIN# 1HFSC47L-7A600001 TO 1HFSC47L-7A699999 CONTROL UNIT (GL1800'06-) Diagram

CUSHION, REVERSE REGULATOR

30401-MCA-000

$6.15

REGULATOR, REVERSE

31710-MCA-A61

$48.93

RESISTOR ASSY., REVERSE This part replaces 36280-MCA-A60.

36280-MCA-A61

$219.66

RESISTOR ASSY., REVERSE

36280-MCA-A61

$219.66

CONTROLLER, AUTO CRUISE

36700-MCA-S41

$607.89

CONTROLLER, AUTO CRUISE This part replaces 36700-MCA-003.

36700-MCA-S41

$607.89

CUSHION, CONTROLLER UNIT

36705-MCA-A61

$226.00

SENSOR ASSY., MAP

37830-MEL-003

$129.26

HORN ASSY. (HIGH)

38110-MCA-003

$89.20

HORN ASSY. (LOW)

38120-MCA-003

$89.20

RELAY, TURN SIGNAL (MITSUBA)

38301-MEG-000

$39.31

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$3.01

CONTROL UNIT, TRUNK LOCK & OPEN

38380-MCA-A41

$133.48

ABS CONTROL UNIT

38600-MCA-A71

$987.75

PGM-FI UNIT

38770-MCA-A73

Unavailable

STAY, PGM-FI UNIT

38771-MCA-A60

Unavailable

STAY A, PGM-FI UNIT

38772-MCA-A60

$68.66

HEATER UNIT, SEAT

39305-MCA-A71

$103.39

CUSHION, SEAT HEATER UNIT

39310-MCA-A71

$4.59

PLUG, HOLE

50318-041-600

$2.11

STAY, REVERSE RESISTOR

50331-MCA-A60

$10.46

PLATE, STAY (UPPER)

64513-MCA-A60

$5.49

RUBBER, SEAT HINGE

77218-GB2-720

$2.67

BOLT, FR. FENDER FIXING

90106-MM9-000

$2.97

WASHER (6X20)

90512-MBY-000

$5.24

CLIP

91411-679-000

$16.20

CLIP, CONNECTOR (BROWN)

91556-SP0-003

$5.03

SCREW-WASHER (5X8)

93892-05008-08

$1.49

SCREW, TAPPING (4X20)

93903-14580

$1.49

SCREW, TAPPING (5X12)

93903-25280

$1.49

SCREW, TAPPING (5X20)

93903-25480

$1.49

SCREW, TAPPING (4X12) (PO)

93913-24380

$1.49

BOLT, FLANGE (8X10)

95701-08010-08

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
