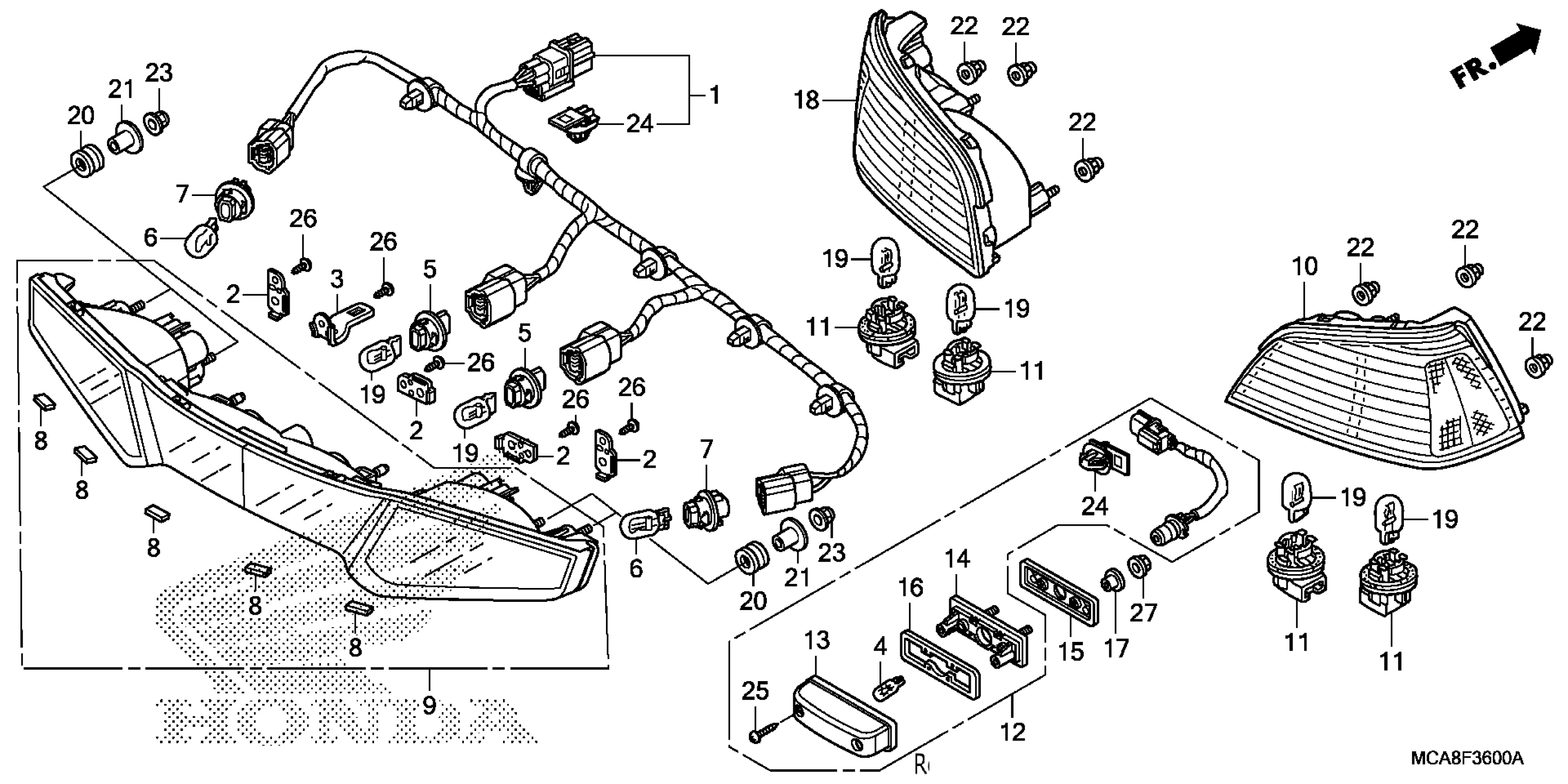

Honda GL18006YA (17) MOTORCYCLE, JPN, VIN# JH2SC68N-HK300001 REAR COMBINATION LIGHT Diagram

SUB-HARNESS, RR. COMBINATION LIGHT

32126-MCA-S40

$69.36

STAY, 1

32161-MCA-S41

$1.93

STAY, 2

32162-MCA-S41

$5.65

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.66

SOCKET (T20 W)

33302-S5A-A01

$40.83

BULB (12V 21W)

33303-SCK-003

$7.90

BULB (12V 21W) This part replaces 33303-S2R-003.

33303-SCK-003

$7.90

SOCKET (T20 S) (AMBER)

33303-SAA-003

$15.51

RUBBER, SPACER

33501-MCA-S41

$2.45

COMB UNIT, RR.

33510-MCA-S42

$584.19

COMB UNIT, RR. This part replaces 33510-MCA-315.

33510-MCA-S42

$584.19

HOUSING, R.

33710-MCA-S41

$180.43

HOUSING, R. This part replaces 33710-MCA-305.

33710-MCA-S41

$180.43

SOCKET

33720-GZ9-003

$11.64

LIGHT ASSY., LICENSE (12V 5W) (COO) This part replaces 33720-MCA-S41.

33720-MJG-305

$96.45

LIGHT ASSY., LICENSE (12V 5W) (COO)

33720-MJG-305

$96.45

COVER, LICENSE

33721-GET-671

$17.41

BASE, LICENSE

33723-MER-D01

$20.64

RUBBER, LICENSE LIGHT

33728-MFL-000

$2.70

GASKET, LENS

33729-MCZ-003

$8.62

COLLAR, REGULATOR MOUNTING

33731-MJ0-940

$2.17

HOUSING, L. TRUNK TAIL

33760-MCA-S41

$180.43

HOUSING, L. TRUNK TAIL This part replaces 33760-MCA-305.

33760-MCA-S41

$180.43

BULB, WEDGE BASE (12V 21/5W ECE) (STANLEY)

34906-MBB-611

$3.73

RUBBER, FR. FENDER MOUNTING (Honda Code 0329987)

61103-357-000

Unavailable

COLLAR, FR. FENDER (WHITE) This part replaces 61104-MA6-720.

61104-428-010

$4.22

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.22

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.22

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

$4.22

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.21

NUT, HEX. CAP (6MM)

90207-RAA-A00

$2.10

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.86

SCREW, TAPPING (4X16)

93901-24480

$0.75

SCREW, TAPPING (5X14) (PO)

93913-25320

$0.71

NUT, FLANGE (5MM)

94050-05080

$0.33
