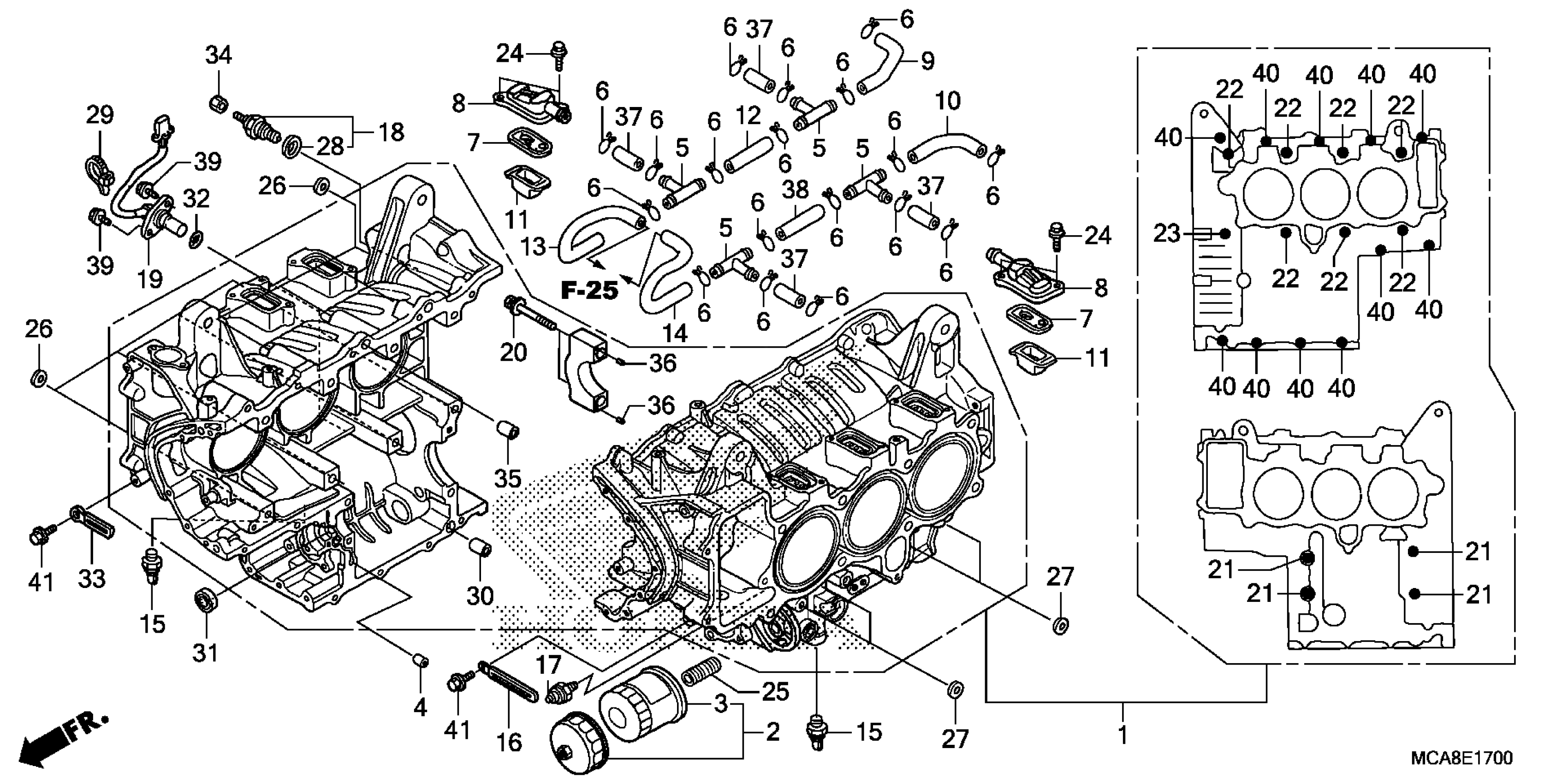

Honda GL18006YA (17) MOTORCYCLE, JPN, VIN# JH2SC68N-HK300001 CYLINDER BLOCK Diagram

#

Description
Price

1

BLOCK ASSY., CYLINDER

11000-MJR-670

$3,336.23

2

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$17.70

2

FILTER SET, OIL | (Optional).

15010-MKR-305

$17.70

3

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$13.80

3

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$13.80

4

ORIFICE (2.3MM)

15515-MCA-000

$4.52

5

JOINT, BREATHER (THREE-WAY)

15772-KK0-000

$11.04

6

CLIP, OIL DRAIN TUBE

17316-611-000

$8.28

7

VALVE, REED

18601-KGB-611

$24.13

8

COVER, REED VALVE

18612-MBA-601

$13.16

9

TUBE, R. AIR IN.

18651-MCA-780

$8.32

10

TUBE, L. AIR IN.

18652-MCA-000

$6.16

11

PLATE, AIR IN.

18653-MCA-000

$3.06

12

TUBE (12X62)

18655-MCA-000

$3.10

13

TUBE, R. AIR IN.

18662-MCA-A60

$8.62

14

TUBE, L. AIR IN.

18663-MCA-A60

$7.26

15

SENSOR ASSY., KNOCK

30530-MCA-003

$130.74

16

CLIP, WIRE HARNESS

32170-443-850

$4.68

17

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$38.10

18

SWITCH ASSY., NEUTRAL (TOYO)

35600-MM5-003

$16.98

19

SENSOR ASSY., SPEED

37700-MCA-A61

$126.88

20

BOLT, UBS (12X77.5)

90003-MEC-000

$5.09

21

BOLT, FLANGE (8X135)

90006-MM5-640

$6.13

22

BOLT, FLANGE (10X120) (SATO)

90009-371-015

$9.61

23

BOLT, FLANGE (10X197)

90011-MJR-670

$10.26

24

BOLT, FLANGE (5X14)

90012-896-750

$1.14

25

BOSS, OIL FILTER (Honda Code 1243435)

90019-MB0-000

$7.73

26

WASHER, SPECIAL (11X21X2.3)

90438-463-000

$2.42

27

WASHER, SEALING (8MM)

90441-MG8-000

$2.07

28

WASHER, NEUTRAL

90443-MJ6-000

$1.75

29

BAND, WIRE (BLACK)

90652-KT1-771

$4.16

30

COLLAR (15X20)

90702-371-000

$5.35

31

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$3.77

32

O-RING (18.1X3.6)

91302-MAL-601

$3.28

33

CLIP (4X60)

91410-KT7-000

$4.58

34

NUT, HEX. (4MM)

94001-04000-0S

$0.94

35

PIN A, DOWEL (12X20)

94301-12200

$2.25

36

PIN C, DOWEL (4X6.5)

94303-04065

$2.04

37

BULK HOSE, VACUUM (12X1000) (120X210) (BULK HOSE: 95005-12001-10M)

95005-12001-10M

Unavailable

38

BULK HOSE, VACUUM (12X1000) (120X210) (BULK HOSE: 95005-12001-10M)

95005-12001-10M

Unavailable

39

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.48

40

BOLT, FLANGE (6X35)

95701-06035-00

$1.71

41

BOLT, FLANGE (6X12)

96001-06012-00

$1.64
