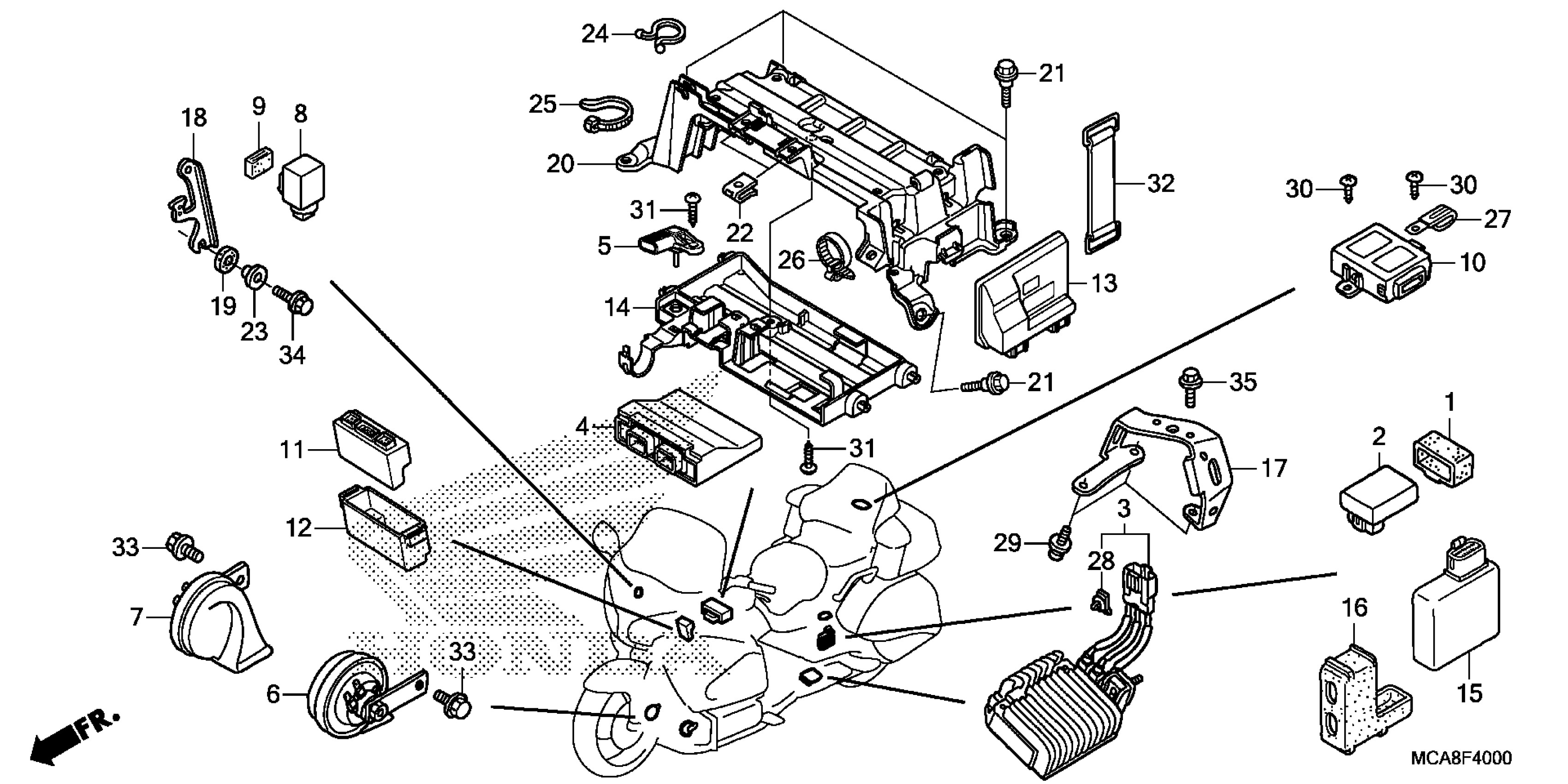

Honda GL18006YA (17) MOTORCYCLE, JPN, VIN# JH2SC68N-HK300001 CONTROL UNIT Diagram

CUSHION, REVERSE REGULATOR

30401-MCA-010

$7.54

REGULATOR, REVERSE

31710-MCA-S41

$158.58

RESISTOR ASSY., REVERSE | Use up to Frame SN HK300334.

36280-MCA-A61

$219.66

RESISTOR ASSY., RVS | Use from Frame SN HK300335.

36280-MCA-A62

$175.33

CONTROLLER, AUTO CRUISE

36700-MCA-S41

$607.89

SENSOR A, MASTER POWER PRESSURE

46401-TM8-A01

$202.72

HORN ASSY. (HIGH)

38110-MCA-003

$89.20

HORN ASSY. (LOW)

38120-MCA-003

$89.20

RELAY, TURN SIGNAL

38301-KTF-671

$37.34

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$3.01

CONTROL UNIT, TRUNK LOCK & OPEN

38380-MCA-S41

Unavailable

ABS CONTROL UNIT

38600-MCA-A71

$987.75

CUSHION, ABS CONTROL UNIT

38605-MCA-A80

$21.02

PGM-FI UNIT

38770-MJK-AA1

$1,366.93

TRAY, AUTO CRUISE UNIT

38775-MCA-S40

$15.85

HEATER UNIT, SEAT

39305-MCA-S41

$273.62

CUSHION, SEAT HEATER UNIT

39310-MCA-A71

$4.59

STAY, REVERSE RESISTOR

50331-MCA-S40

$32.56

PLATE, STAY (UPPER)

64513-MCA-A60

$5.49

RUBBER, SEAT HINGE

77218-GB2-720

$2.67

STAY, SHELTER CASE

83120-MCA-S40

$42.69

BOLT, FR. FENDER FIXING

90106-MM9-000

$2.97

NUT, CLIP (6MM)

90344-GM9-000

$4.75

WASHER (6X20)

90512-MBY-000

$5.24

CLIP, PURSE LOCK

90630-751-000

$1.92

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

STRAP, CABLE (118MM) (BLACK) (Honda Code 1170653)

90672-SA0-003

$6.24

CLIP

91411-679-000

$16.20

CLIP, CONNECTOR (BROWN)

91556-SP0-003

$5.03

SCREW-WASHER (5X8)

93892-05008-08

$1.49

SCREW, TAPPING (5X12)

90121-MJK-N20

$2.04

SCREW, TAPPING (5X20)

93903-25480

$1.49

BAND B2, BATTERY

95012-13001

$5.28

BOLT, FLANGE (8X16)

95701-08016-08

$1.80

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
