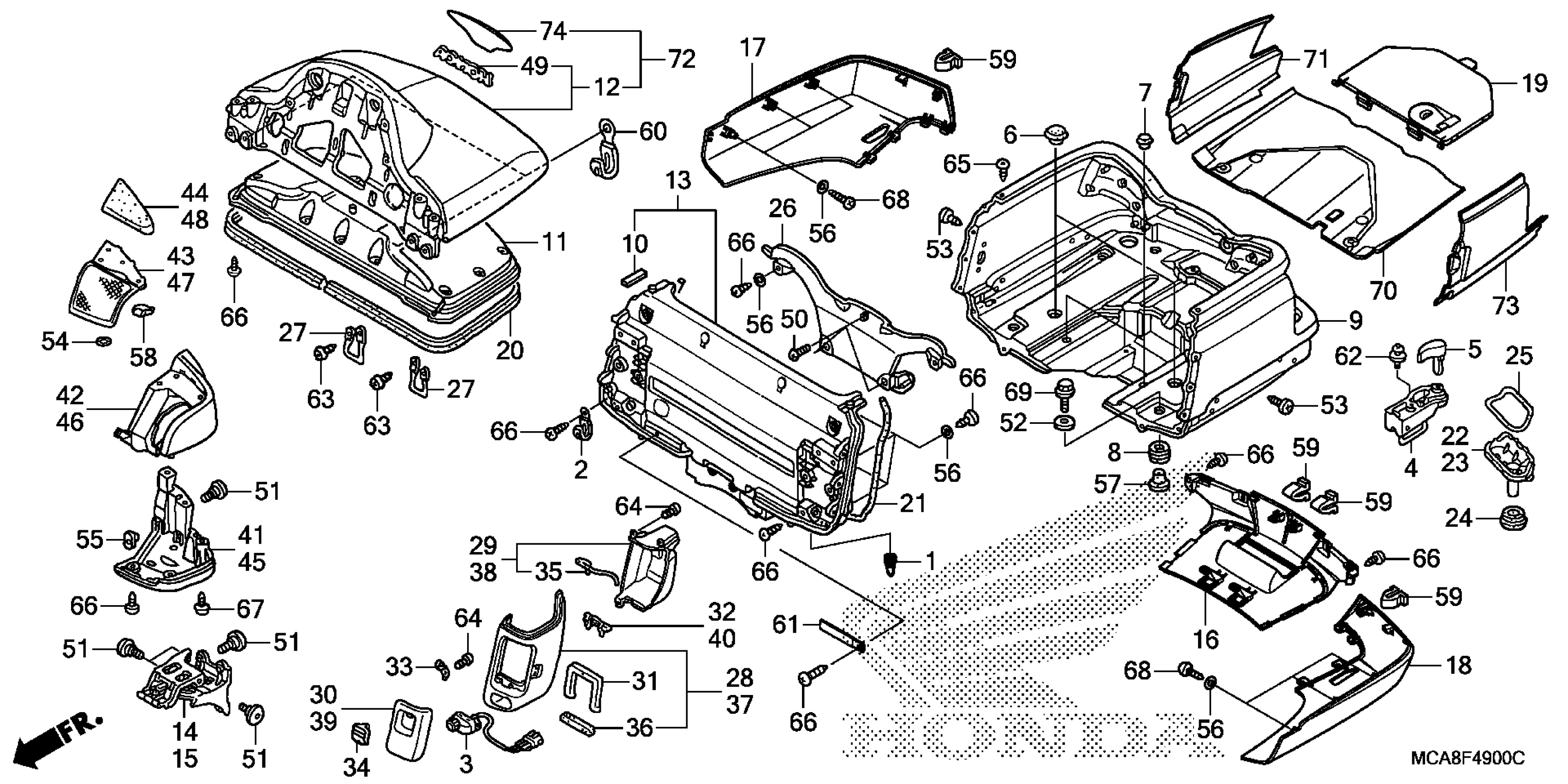

Honda GL18005AC (17) MOTORCYCLE, JPN, VIN# JH2SC68H-HK500001 TRUNK BOX Diagram

TUBE, DRAIN

17358-VM4-000

$9.44

CLIP, PULSER WIRE

32925-958-000

$2.76

SWITCH ASSY., PASSENGER SEAT HEATER

39500-MCA-S41

$103.38

HOLDER ASSY., HELMET

50710-MCA-003

$25.62

KNOB ASSY., HELMET HOLDER

50714-MCA-S40

$5.78

CAP, MAIN STAND PIPE

50750-MB0-000

$5.64

RUBBER, STOPPER

80105-MAH-610

$6.63

RUBBER, TRUNK MOUNTING

80202-MCA-000

$2.51

BOX ASSY., TRUNK *R342C* (CANDY PROMINENCE RED)

81110-MJK-A80ZA

$1,624.34

BOX ASSY., TRUNK *NHB53P* (PEARL GLARE WHITE)

81110-MJK-A80ZC

$1,502.38

SEAL, TRUNK PANEL

81112-MCA-S40

$0.66

INNER LID, TRUNK

81123-MCA-000

$65.53

LID SET, TRUNK *R342C* (WL) (CANDY PROMINENCE RED)

81125-MCA-A60YH

$948.00

LID SET, TRUNK *NHB53P* (WL) (PEARL GLARE WHITE)

81125-MCA-A60YK

$892.59

PANEL SET, FR. TRUNK

81129-MCA-S50

$299.56

HINGE, R. TRUNK

81130-MCA-000

$86.42

HINGE, L. TRUNK

81135-MCA-A60

$80.86

COVER, TRUNK (LOWER) *R342C* (CANDY PROMINENCE RED)

81141-MCA-S40ZG

$117.34

COVER, TRUNK (LOWER) *NHB53P* (PEARL GLARE WHITE)

81141-MCA-S40ZJ

$107.82

COVER, R. TRUNK (LOWER) *R342C* (CANDY PROMINENCE RED)

81143-MCA-S40ZG

$85.65

COVER, R. TRUNK (LOWER) *NHB53P* (PEARL GLARE WHITE)

81143-MCA-S40ZJ

$80.25

COVER, L. TRUNK (LOWER) *R342C* (CANDY PROMINENCE RED)

81148-MCA-S40ZG

$85.65

COVER, L. TRUNK (LOWER) *NHB53P* (PEARL GLARE WHITE)

81148-MCA-S40ZJ

$80.25

COVER, TRUNK (INNER)

81171-MCA-S40

$31.81

RUBBER, TRUNK SEAL

81181-MCA-000

$32.29

RUBBER, FR. PANEL

81183-MCA-000

$22.62

COVER, R. TRUNK LIGHT

81191-MCA-000

$21.71

COVER, L. TRUNK LIGHT

81192-MCA-000

$21.71

RUBBER, TRUNK LIGHT SEAL (LOWER)

81193-MCA-000

$4.09

RUBBER, TRUNK LIGHT SEAL (UPPER)

81194-MCA-000

$6.69

COVER, TRUNK CATCH

81309-MCA-000

$57.99

ROD, TRUNK STRIKER

81328-MCA-780

$9.51

OUTER, R. TRUNK POCKET *NH1* (BLACK)

82111-MCA-A60ZA

$232.00

INNER, R. TRUNK POCKET

82112-MCA-A60

$22.78

LID, R. TRUNK POCKET *NH1* (BLACK)

82120-MCA-A60ZA

$19.46

RUBBER A, TRUNK POCKET SEAL

82130-MCA-300

$2.63

RUBBER, R. HINGE

82141-MCA-A60

$13.72

SPRING, TRUNK POCKET

82150-MCA-000

$4.34

LEVER, TRUNK POCKET *NH1* (BLACK)

82160-MCA-A60ZA

$12.22

RUBBER C, TRUNK POCKET SEAL

82190-MCA-A60

$2.54

RUBBER, SEAT HEATER SWITCH (L. SIDE ONLY)

82207-MCA-A60

$3.69

OUTER, L. TRUNK POCKET *NH1* (BLACK)

82211-MCA-A60ZA

$232.00

INNER, L. TRUNK POCKET

82212-MCA-A60

$22.78

LID, L. TRUNK POCKET *NH1* (BLACK)

82220-MCA-A60ZA

$19.46

RUBBER, L. HINGE

82241-MCA-A60

$16.50

BODY, R. ARMREST *NH1* (BLACK)

82310-MCA-A60ZA

$62.22

COVER A, R. ARMREST *NH1* (BLACK)

82320-MCA-A60ZA

$42.44

COVER B, R. ARMREST *NH1* (BLACK)

82330-MCA-S40ZA

$26.03

CUSHION, R. ARMREST *NH1* (BLACK)

82340-MCA-A60ZA

$56.43

BODY, L. ARMREST *NH1* (BLACK)

82410-MCA-A60ZA

$62.22

COVER A, L. ARMREST *NH1* (BLACK)

82420-MCA-A60ZA

$42.44

COVER B, L. ARMREST *NH1* (BLACK)

82430-MCA-S40ZA

$38.31

CUSHION, L. ARMREST *NH1* (BLACK)

82440-MCA-A60ZA

$56.43

EMBLEM, RR. TRUNK (HONDA)

87111-MCA-A60

$23.65

SCREW (5X12)

90112-MJK-N20

$2.07

SCREW, PAN (6X11)

90106-KY2-701

$4.05

WASHER, TANK SETTING

90136-428-870

$1.44

SCREW, TAPPING (5X12)

90140-MCA-000

$0.85

NUT, CLIP

90301-GE0-000

$1.97

NUT, PLATE (6MM)

90302-MN5-300

$1.91

WASHER, THRUST (5MM)

90504-964-000

$1.75

COLLAR, TRUNK MOUNTING

90505-MCA-000

$6.06

CLIP, SNAP FITTING

90666-S84-A01

$0.59

CLIP, SNAP FITTING (PO)(NATURAL)

90666-SDA-A01

$0.76

CLIP, WIRE HARNESS

91405-MG1-000

$2.24

CLIP (2X70)

91410-MN1-671

$2.82

SCREW-WASHER (6X12)

93893-06012-07

$1.41

SCREW, TAPPING (5X16)

93901-25380

$0.84

SCREW, TAPPING (4X10)

90114-MJK-N20

$2.09

SCREW, TAPPING (5X8)

93903-25080

$0.76

SCREW, TAPPING (5X12)

90121-MJK-N20

$2.07

SCREW, TAPPING (5X16)

90113-MJK-N20

$2.07

SCREW, TAPPING (5X14) (PO)

93913-25380

$0.84

BOLT, FLANGE (6X28)

96001-06028-00

$2.59

MAT, TRUNK BOX

81115-MJK-A80

$105.79

MAT, R. TRUNK BOX SIDE

81120-MJK-A80

$38.68

MAT, L. TRUNK BOX SIDE

81130-MJK-A80

$38.68
