Partiron

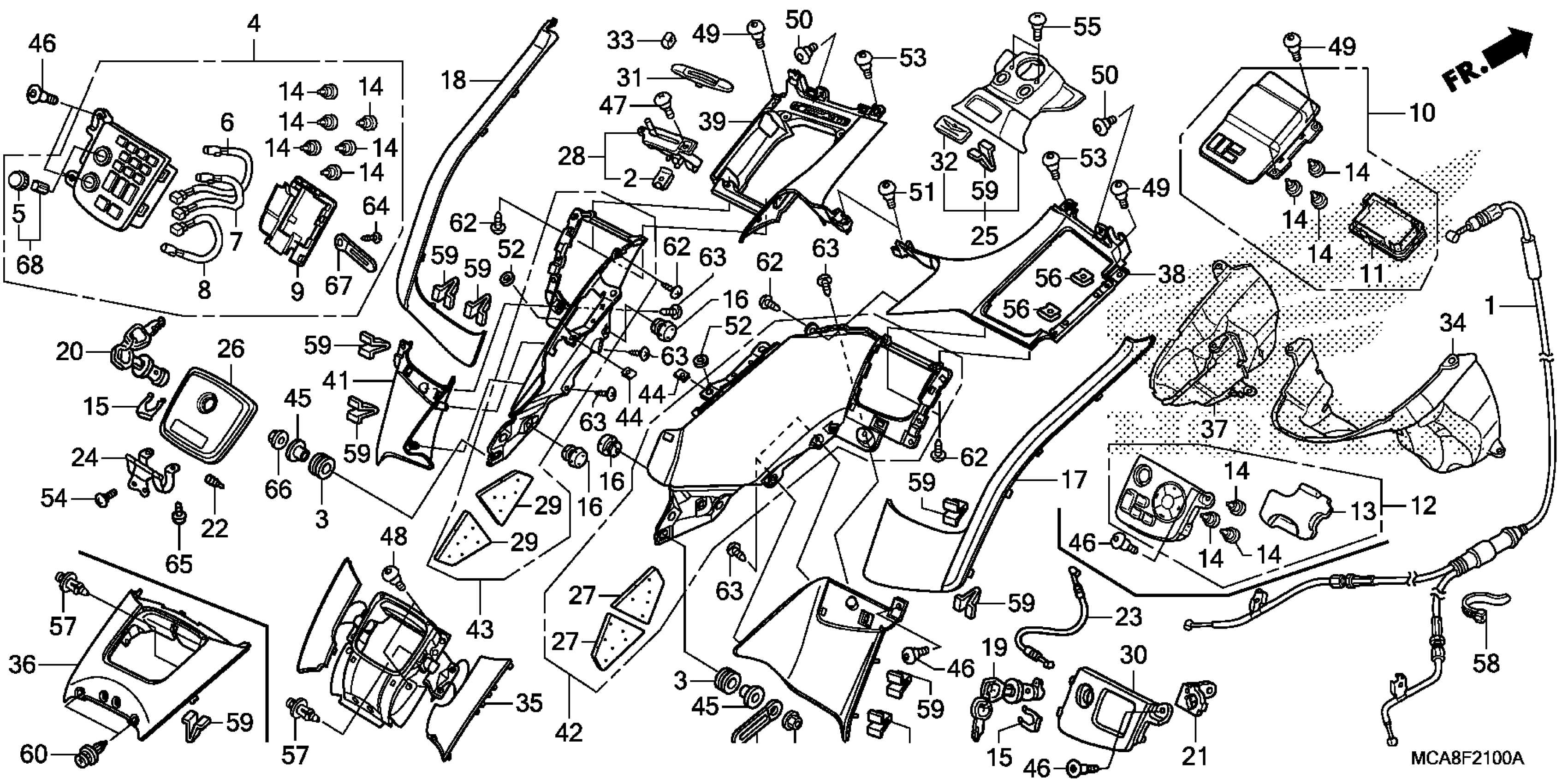

Honda GL18005AC (17) MOTORCYCLE, JPN, VIN# JH2SC68H-HK500001 SHELTER Diagram

#

Description
Price

1

CABLE, EX. PIPE PROTECTOR ADJUSTING

18337-MCA-S40

$97.57

2

NUT, SETTING (6MM)

19014-KEA-003

$2.95

3

RUBBER, TAILLIGHT

33712-KT1-670

$4.28

4

SWITCH ASSY., AUDIO & HAZARD

35600-MCA-S81

$723.29

5

KNOB, MODE SELECT

35601-MCA-A81

$10.19

6

BULB A, A (T3) (PCB) (VOLUME ORNAMENT)

35602-MCA-A81

$9.57

7

BULB B, B (T3) (PCB) (MODE ORNAMENT)

35603-MCA-A81

$9.57

8

BULB C, C (T3) (PCB) (FOR HAZARD SW)

35604-MCA-A81

$9.57

9

COVER

35610-MCA-A81

$13.53

10

SWITCH ASSY., LEVELING *NH1* (BLACK)

35820-MCA-R61ZA

$264.60

11

COVER

35821-MCA-A81

$8.53

12

SWITCH ASSY., NAVIGATION PANEL

35900-MCA-A71

$261.71

13

COVER

35901-MCA-A70

$6.09

14

BULB

35902-MCA-A70

$10.13

15

SPRING, LOCK KEY SETTING

37222-MCA-000

$3.24

16

RUBBER, TENSIONER ARM

61112-727-000

$2.94

17

MOLDING, R. COWL TRIM *NH1* (BLACK)

64204-MCA-S40ZA

$21.61

18

MOLDING, L. COWL TRIM *NH1* (BLACK)

64214-MCA-S40ZA

$21.61

19

LOCK ASSY., POCKET LID

77233-MCA-A61

$75.19

20

LOCK ASSY., FUEL LID

77234-MCA-003

$78.06

21

PLATE, POCKET LOCK

77236-MCA-S40

$6.04

22

RUBBER, SHELTER LID

83132-MN5-000

$2.21

23

CABLE, POCKET LOCK

83133-MCA-S40

$10.54

24

HINGE

83140-MCA-000

$107.82

25

CENTER ASSY., FR. SHELTER *NH1* (BLACK)

83150-MCA-S40ZA

$92.93

26

LID, SHELTER *R342C* (CANDY PROMINENCE RED)

83153-MCA-S40ZJ

$28.87

26

LID, SHELTER *NHB53P* (PEARL GLARE WHITE)

83153-MCA-S40ZN

$27.71

27

MAT, R. TOP SHELTER

83154-MCA-S40

$11.03

28

LEVER ASSY., VENT ADJUSTER (LOWER)

83155-MCA-A70

$34.79

29

MAT, L. TOP SHELTER

83159-MCA-S40

$11.03

31

COVER, VENT ADJUSTER LEVER (LOWER) *NH1* (BLACK)

83161-MCA-S40ZA

$20.12

32

EMBLEM, GOLD WING

83162-MCA-000

$31.46

33

KNOB, VENT ADJUSTER LEVER (LOWER)

83163-MCA-A70

$4.93

34

COVER, R. SHELTER (INNER)

83165-MCA-A60

$36.29

36

SHELTER, CENTER TOP *R342C* (CANDY PROMINENCE RED)

83173-MCA-S40ZJ

$97.07

36

SHELTER, CENTER TOP *NHB53P* (PEARL GLARE WHITE)

83173-MCA-S40ZP

$90.93

37

COVER, L. SHELTER (INNER)

83175-MCA-A60

$36.29

38

SHELTER, R. FR. *NH1* (BLACK)

83177-MCA-S40ZA

$199.49

39

SHELTER, L. FR. *NH1* (BLACK)

83178-MCA-S40ZA

$199.49

40

PANEL, R. SHELTER TOP *R342C* (CANDY PROMINENCE RED)

83191-MCA-S40ZF

$31.47

40

PANEL, R. SHELTER TOP *NHB53P* (PEARL GLARE WHITE)

83191-MCA-S40ZH

$30.87

41

PANEL, L. SHELTER TOP *R342C* (CANDY PROMINENCE RED)

83192-MCA-S40ZF

$32.90

41

PANEL, L. SHELTER TOP *NHB53P* (PEARL GLARE WHITE)

83192-MCA-S40ZH

$30.87

42

SHELTER SET, R. TOP *R342C* (CANDY PROMINENCE RED)

83193-MCA-S40ZJ

$469.84

42

SHELTER SET, R. TOP *NHB53P* (PEARL GLARE WHITE)

83193-MCA-S40ZN

$440.29

43

SHELTER SET, L. TOP *R342C* (CANDY PROMINENCE RED)

83194-MCA-S40ZJ

$469.84

43

SHELTER SET, L. TOP *NHB53P* (PEARL GLARE WHITE)

83194-MCA-S40ZN

$440.29

45

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$3.90

46

SCREW, SPECIAL (5X14.5)

90119-MJK-N20

$2.37

47

BOLT, FR. DISK

90103-MN9-000

$4.66

49

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.47

50

SCREW, PAN (6X14)

90106-MM4-000

$3.71

51

SCREW, SPECIAL (6MM)

90137-MCA-000

$2.80

53

SCREW, PAN (6X14)

90113-MM5-000

$2.95

54

SCREW, VISOR SPECIAL SETTING

90115-KW7-900

$2.01

55

SCREW, PAN (5X18)

90150-GBT-600

$1.85

56

NUT, SPRING (5MM)

90320-GE2-760

$1.82

57

RIVET, PUSH (6MM) (Honda Code 7039845)

90602-GCT-000

$0.85

58

BAND, WIRE HARNESS

90620-SB2-003

$23.88

59

CLIP, SNAP FITTING (PO)(NATURAL)

90666-SDA-A01

$0.76

60

CLIP, BODY

90683-MBW-003

$1.93

61

CLIP (2X70)

91413-679-000

$8.51

62

SCREW, TAPPING (4X10)

90114-MJK-N20

$2.09

63

SCREW, TAPPING (4X12)

90120-MJK-N20

$2.09

64

SCREW, TAPPING (4X10) (PO)

93911-24110

$0.62

65

SCREW, TAPPING (4X12) (PO)

93913-24380

$0.84

66

NUT, FLANGE (6MM)

94050-06070

$1.34

67

CLIP (4X40)

94591-44000

$2.13

68

KNOB SET, MODE SELECT

35605-MCA-A81

$10.69
