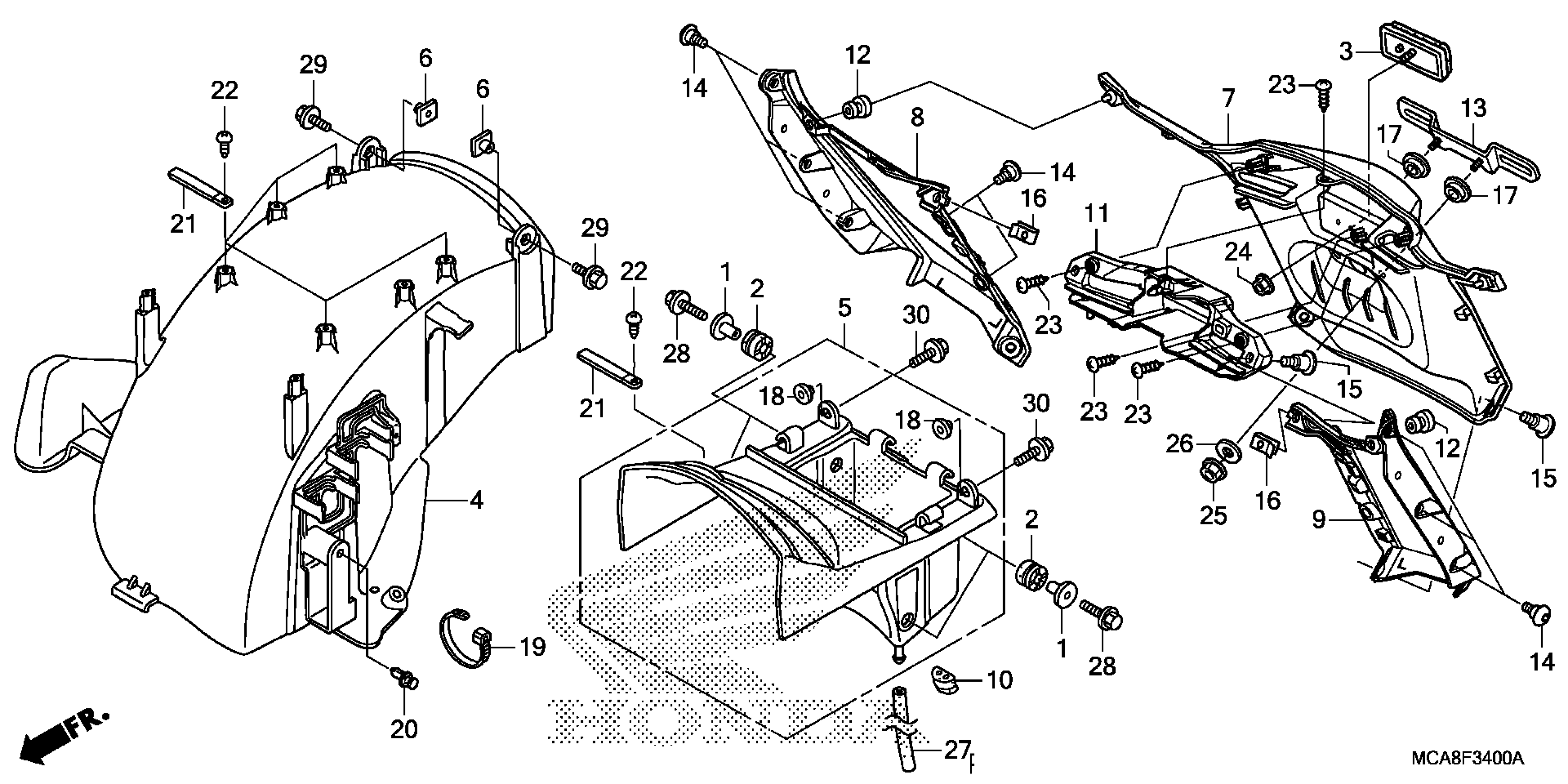

Honda GL18005AC (17) MOTORCYCLE, JPN, VIN# JH2SC68H-HK500001 REAR FENDER Diagram

COLLAR, RR. FENDER

17246-GN5-960

$3.57

RUBBER, RADIATOR MOUNTING

19051-MS8-000

$4.44

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

FENDER B, RR.

80101-MCA-A70

$114.64

FENDER C, RR.

80102-MCA-A70

$141.52

NUT, RR. FENDER

80104-KJ2-000

$4.08

FENDER A, RR. *NH1* (BLACK)

80106-MCA-S40ZA

$103.07

COVER SET, R. RR. SADDLEBAG *R342C* (CANDY PROMINENCE RED)

80110-MCA-S40ZJ

$117.98

COVER SET, R. RR. SADDLEBAG *NHB53P* (PEARL GLARE WHITE)

80110-MCA-S40ZN

$108.38

COVER SET, L. RR. SADDLEBAG *R342C* (CANDY PROMINENCE RED)

80120-MCA-S40ZJ

$125.20

COVER SET, L. RR. SADDLEBAG *NHB53P* (PEARL GLARE WHITE)

80120-MCA-S40ZN

$117.33

RUBBER, RR. FENDER (C)

80122-MCA-A70

$4.03

SUPPORT, RR. FENDER

80125-MCA-S40

$49.61

GROMMET, SIDE COVER (16MM ATTACHES PROTECTOR SET, SIDE TO COVER, PILLION STEP)

83501-MG7-000

$2.61

BRACKET, NUMBER PLATE

84700-MCA-S40

$16.31

SCREW, SPECIAL (5X11)

90122-MJK-N20

$2.48

BOLT, SPECIAL (6X8)

90116-MEW-920

$1.49

NUT, SPRING (6MM)

90320-MM5-000

$2.84

COLLAR, HEAT GUARD

90503-MCS-760

$2.31

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

BAND, WIRE HARNESS

90620-SB2-003

$24.63

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

CLIP (2X70)

91410-MN1-671

$3.05

SCREW, TAPPING (5X10)

93901-25120

$1.49

SCREW, TAPPING (5X12)

90121-MJK-N20

$2.04

NUT, FLANGE (5MM)

94050-05080

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (6MM)

94103-06000

$1.49

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45

BOLT, FLANGE (6X25)

95801-06025-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-07

$1.49

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
