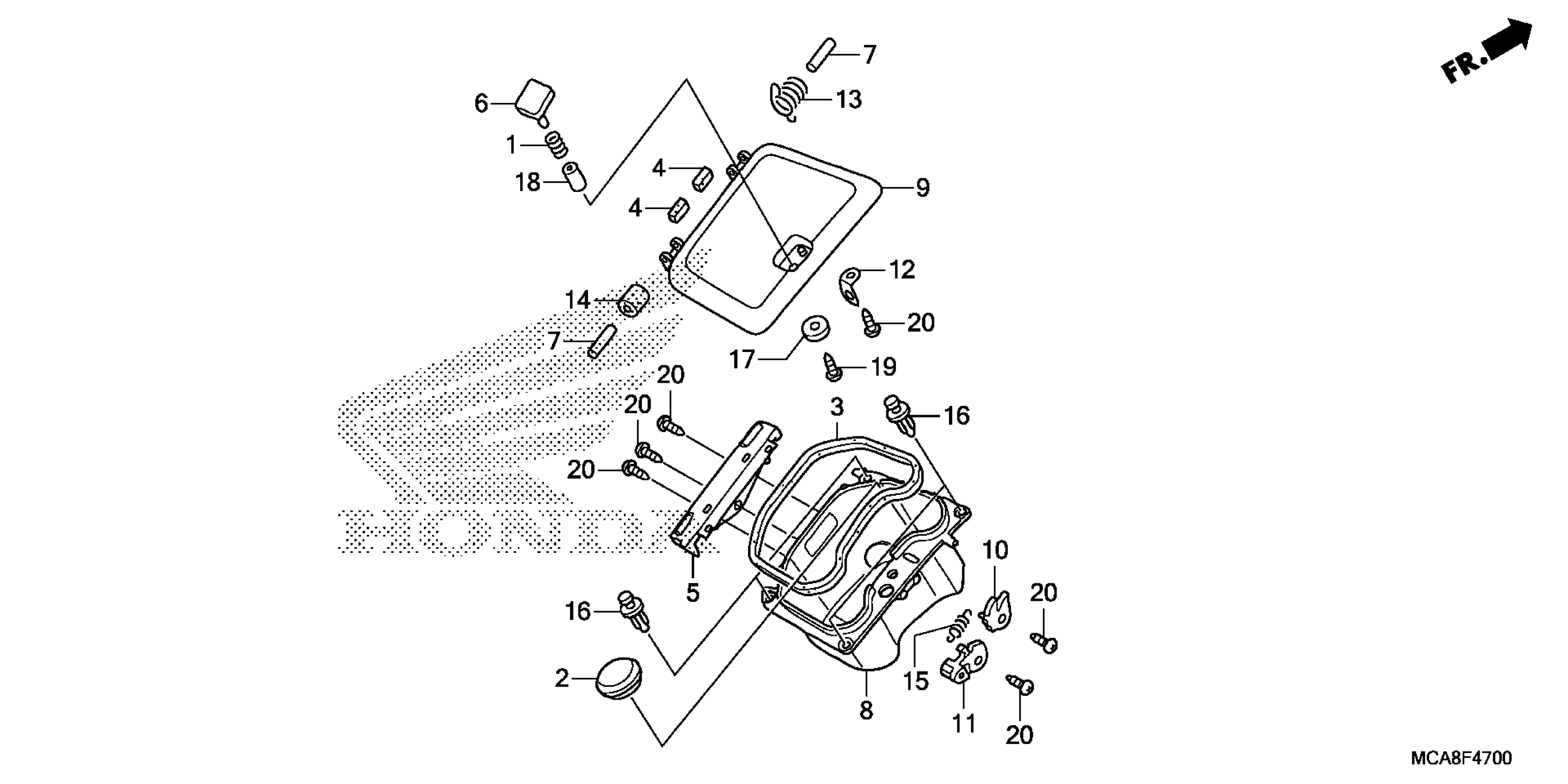

Honda GL18005AC (17) MOTORCYCLE, JPN, VIN# JH2SC68H-HK500001 POCKET Diagram

SPRING, COIL

38253-898-000

$1.53

GROMMET, WASHER HOLE

38564-SA5-000

$7.59

SEAL, POCKET

64228-MCA-A60

$4.80

SEAL, POCKET ARM

64229-MCA-A60

$3.31

HINGE, L. POCKET *NH1* (BLACK)

64412-MCA-S40ZA

$40.87

BUTTON, L. POCKET COVER OPEN

64414-MCA-S40

$6.34

PIN, POCKET

64419-MCA-A60

$1.49

POCKET, L. FR.

64420-MCA-S40

$24.48

COVER, L. POCKET *NH1* (BLACK)

64425-MCA-S40ZA

$54.30

CAM A, POCKET COVER LOCK

64428-MCA-000

$2.92

CAM B, POCKET COVER LOCK

64429-MCA-000

$2.92

PLATE, POCKET LOCK

64431-MCA-000

$4.13

SPRING B, FR. POCKET

64434-MCA-A60

$6.62

DAMPER, POCKET

64435-MCA-A60

$4.80

SPRING, POCKET LOCK CAM

64436-MCA-000

$4.83

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

WASHER, PLAIN (3MM)

90502-MCA-S40

$1.49

COLLAR A

91551-883-T00

$2.93

SCREW, TAPPING (3X12)

93903-22380

$1.49

SCREW, TAPPING (4X10)

90114-MJK-N20

$2.26
