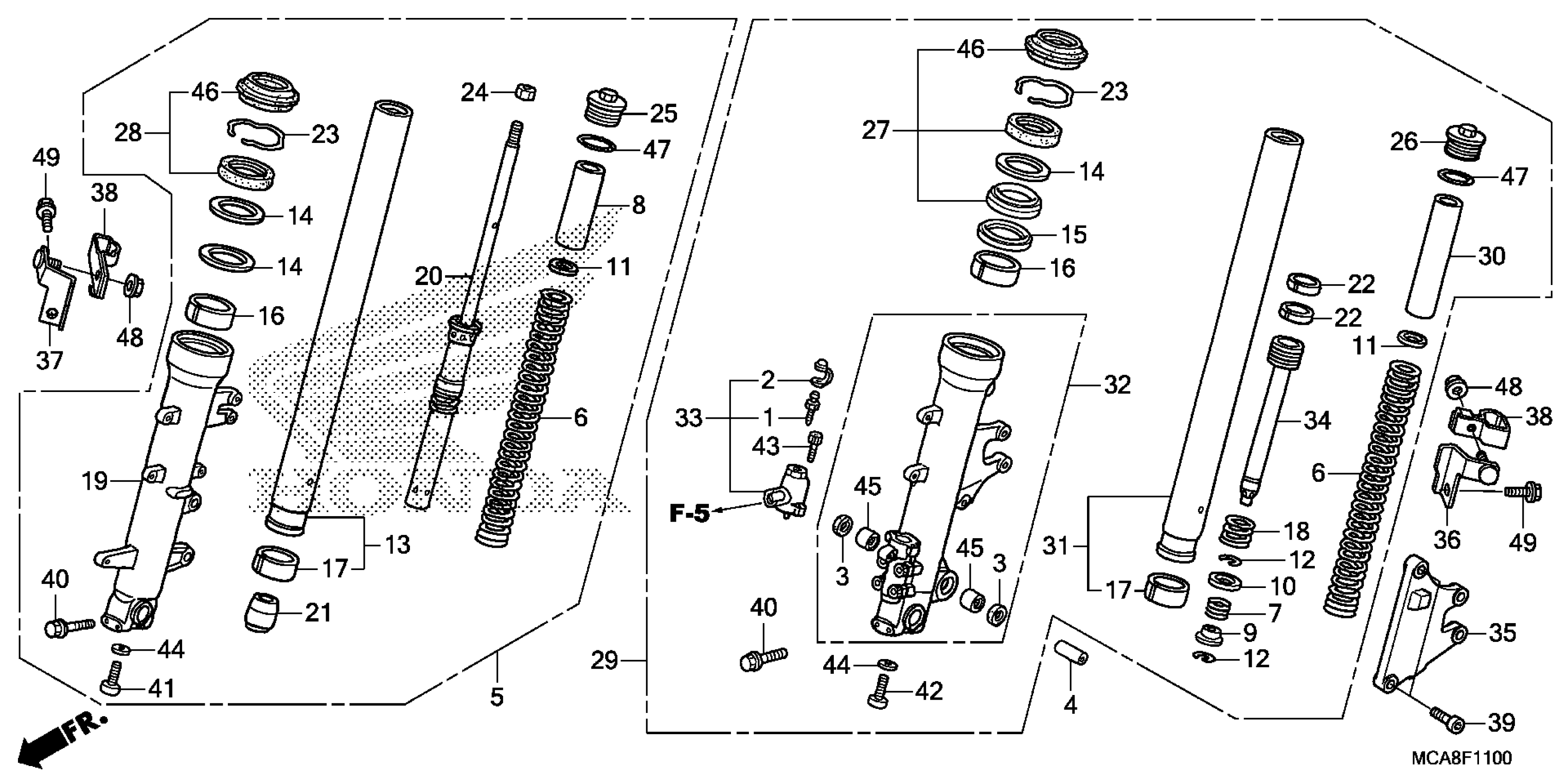

Honda GL18005AC (17) MOTORCYCLE, JPN, VIN# JH2SC68H-HK500001 FRONT FORK Diagram

#

Description
Price

1

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

2

CAP, BLEEDER

43353-461-771

$5.05

3

DUST SEAL, BRAKE CAM (NOK)

45134-KB7-005

$2.97

4

COLLAR, PIVOT

45452-MZ2-000

$10.04

5

FORK ASSY., R. FR. (SHOWA)

51400-MCA-S41

$1,122.69

5

FORK ASSY., R. FR. (SHOWA) This part replaces 51400-MCA-305.

51400-MCA-S41

$1,122.69

6

SPRING, FR. FORK

51401-MCA-A81

$16.94

7

SPRING, OIL LOCK

51402-MB7-611

$5.54

8

COLLAR, SPRING

51402-MCA-003

$5.03

9

VALVE, OIL LOCK

51403-MCA-003

$4.87

10

SEAT, SPRING

51404-MB7-611

$5.26

11

SEAT, SPRING

51405-KA4-711

$6.23

12

RING, STOPPER

51405-MB7-611

$2.92

13

PIPE, R. FR. FORK

51410-MCA-S41

$312.41

14

RING, BACK-UP

51412-KZ3-003

$9.43

15

RING, BACK-UP

51412-MCA-A61

$4.62

16

BUSH, GUIDE

51414-MFR-671

$21.68

17

BUSH, SLIDER

51415-MFR-671

$11.53

18

SPRING, FR. REBOUND (34.3N/MM, 3.5KGF/MM) (SHOWA)

51416-KA4-831

$14.15

19

CASE, R. (LOWER) (SHOWA)

51420-MCA-H51

$222.07

20

DAMPER, FR.

51430-MCA-013

$137.13

21

PIECE, OIL LOCK

51432-MCA-003

$9.85

22

RING, PISTON

51437-MCA-003

$7.83

23

RING, OIL SEAL STOPPER

51447-KZ3-003

$5.12

24

NUT, HEX. (10MM)

51451-MAJ-G41

$2.90

25

BOLT, FR. FORK

51454-MBR-003

$32.34

26

BOLT, FR. FORK

51454-MCA-003

$18.28

27

SEAL SET, FR. FORK

51490-MCA-S41

$35.47

28

SEAL SET, FR. FORK

51490-MFR-671

$30.00

29

FORK ASSY., L. FR. (SHOWA)

51500-MCA-S41

$1,122.69

29

FORK ASSY., L. FR. (SHOWA) This part replaces 51500-MCA-305.

51500-MCA-S41

$1,122.69

30

COLLAR B, SPRING

51502-MCA-003

$5.03

31

PIPE, L. FR. FORK

51510-MCA-S41

$312.41

32

CASE ASSY., L. (LOWER) (CONTRLD PART:CONTACT TECHLINE OR USE TL CONNECT TO ORDER)

51520-MCA-A61

$258.34

33

CASE, PLUNGER

51530-MCA-A61

$269.80

34

PIPE, SEAT

51540-MCA-003

$232.70

40

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

41

BOLT, SOCKET (8X27) BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

42

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

43

BOLT, SOCKET (5X18)

90118-MCA-003

$4.43

44

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

45

BEARING, NEEDLE (14X20X12)

91101-KG8-003

$38.54

46

DUST SEAL

91254-MCH-C11

$12.78

47

O-RING (37.2X2.4) (SHOWA)

91356-MW0-003

$2.92
