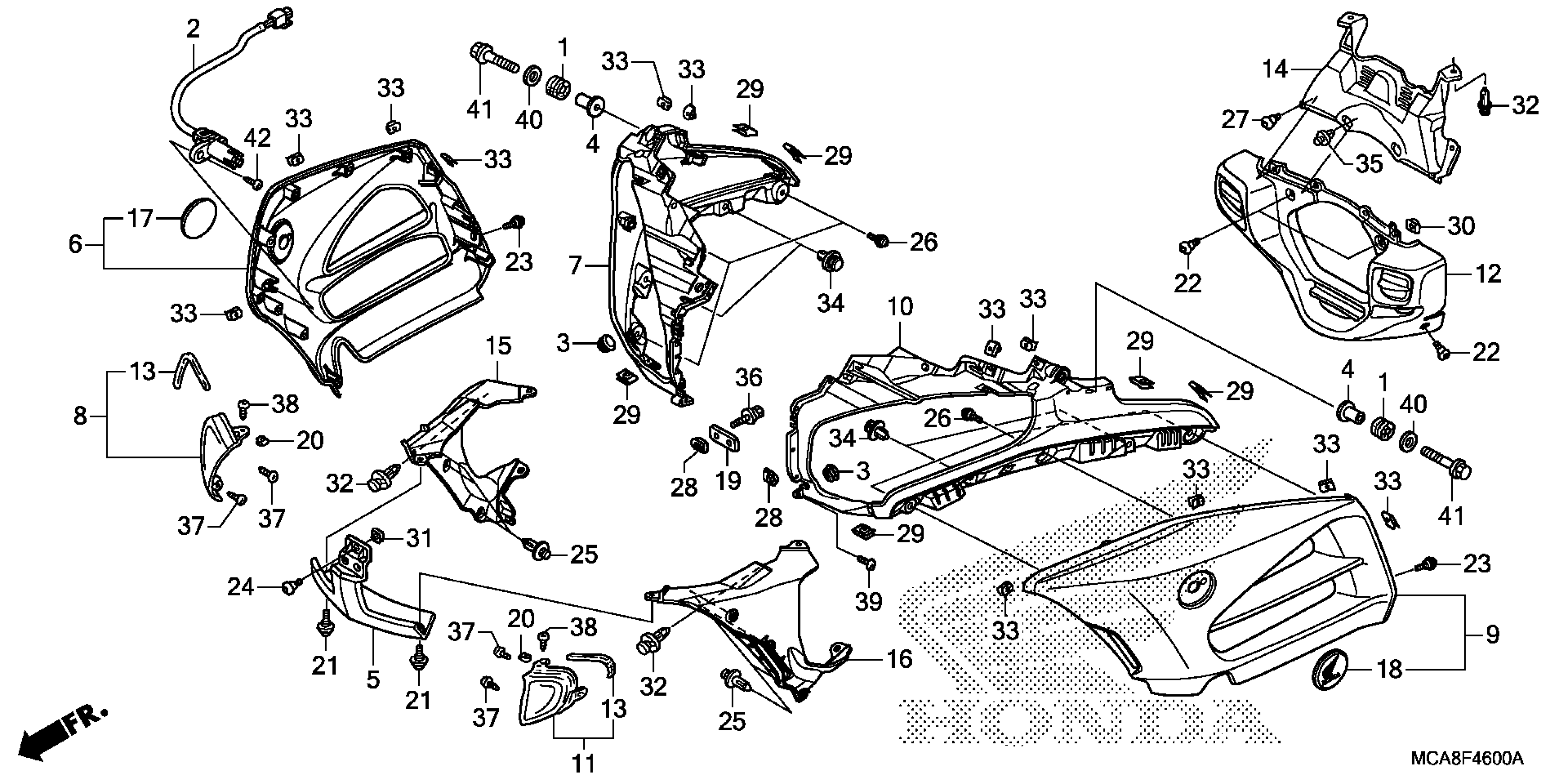

Honda GL18005AC (17) MOTORCYCLE, JPN, VIN# JH2SC68H-HK500001 COWL Diagram

#

Description
Price

1

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.16

2

SENSOR, TEMPERATURE (OPEN AIR)

37890-MCA-S41

$57.84

3

PLUG, HANDLE COVER (LOWER)

53125-174-670

$1.79

4

COLLAR, FR. FENDER SETTING

61101-MN4-000

$5.19

5

COWL, FR. CENTER *R342C* (CANDY PROMINENCE RED)

64216-MCA-000YS

$45.38

5

COWL, FR. CENTER *NHB53P* (PEARL GLARE WHITE)

64216-MCA-000YX

$43.53

6

COWL SET, R. MIDDLE *R342C* (WL) (CANDY PROMINENCE RED)

64280-MJK-N20ZA

$228.91

6

COWL SET, R. MIDDLE *NHB53P* (WL) (PEARL GLARE WHITE)

64280-MJK-N20ZB

$219.03

7

COWL, R. SIDE *R342C* (CANDY PROMINENCE RED)

64282-MCA-S40ZJ

$428.37

7

COWL, R. SIDE *NHB53P* (PEARL GLARE WHITE)

64282-MCA-S40ZP

$428.41

8

COVER, R. HEADLIGHT SIDE *NH303M* (MAT AXIS GRAY METALLIC)

64286-MCA-S40ZA

$27.78

9

COWL SET, L. MIDDLE *R342C* (WL) (CANDY PROMINENCE RED)

64290-MJK-N20ZA

$238.90

9

COWL SET, L. MIDDLE *NHB53P* (WL) (PEARL GLARE WHITE)

64290-MJK-N20ZB

$228.56

10

COWL, L. SIDE *R342C* (CANDY PROMINENCE RED)

64292-MCA-S40ZJ

$419.13

10

COWL, L. SIDE *NHB53P* (PEARL GLARE WHITE)

64292-MCA-S40ZN

$402.46

11

COVER, L. HEADLIGHT SIDE *NH303M* (MAT AXIS GRAY METALLIC)

64296-MCA-S40ZA

$27.78

12

COWL, FR. (LOWER) *NH167MU* (IRON NAIL SILVER METALLIC-U)

64302-MCA-S40ZA

$272.94

13

SEAL, AIR DUCT

64448-MCA-A60

$1.54

14

COWL, CENTER (INNER)

64501-MCA-A60

$62.51

15

COWL, R. (INNER)

64502-MCA-S40

$76.93

16

COWL, L. (INNER)

64503-MCA-S40

$76.93

17

BADGE, R. PRODUCT

86211-MJK-N20

$34.28

18

BADGE, L. PRODUCT

86212-MJK-N20

$34.28

19

PLATE, HEADLIGHT (LOWER)

64517-MCA-000

$2.75

20

NUT, CENTER PANEL

66871-611-000

$5.35

21

SCREW, SPECIAL (5X12)

90105-MB1-000

$3.19

22

SCREW, PAN (6X11)

90106-KY2-701

$4.05

23

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.47

24

SCREW, PAN (6X17)

90107-MM5-000

$4.81

25

RIVET, PUSH

90116-MCS-G00

$1.28

26

SCREW, PAN (5X13)

90117-MN5-000

$2.10

27

SCREW, SPECIAL (6MM)

90137-MCA-000

$2.80

28

NUT, AIR SPOILER CLIP

90305-SM4-000

$4.35

29

NUT, SPRING (5MM)

90320-GE2-760

$1.82

30

NUT, SPRING (6MM)

90320-MM5-000

$2.62

31

NUT, SPRING (6MM)

90320-747-000

$2.16

32

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.54

33

NUT, CLIP (5MM)

90677-KAN-961

$3.89

34

CLIP, FENDER (INNER)

91512-SX0-003

$2.66

35

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$4.04

36

BOLT-WASHER (6X30)

93404-06030-08

$2.78

37

SCREW, TAPPING (4X10)

90114-MJK-N20

$2.09

38

SCREW, TAPPING (4X12)

90120-MJK-N20

$2.09

39

SCREW, TAPPING (5X16)

90113-MJK-N20

$2.07

40

WASHER, PLAIN (6MM)

94103-06000

$0.91

41

BOLT, FLANGE (6X25)

96001-06025-00

$2.49

42

SCREW, TAPPING (4X12)

93903-24380

Unavailable
