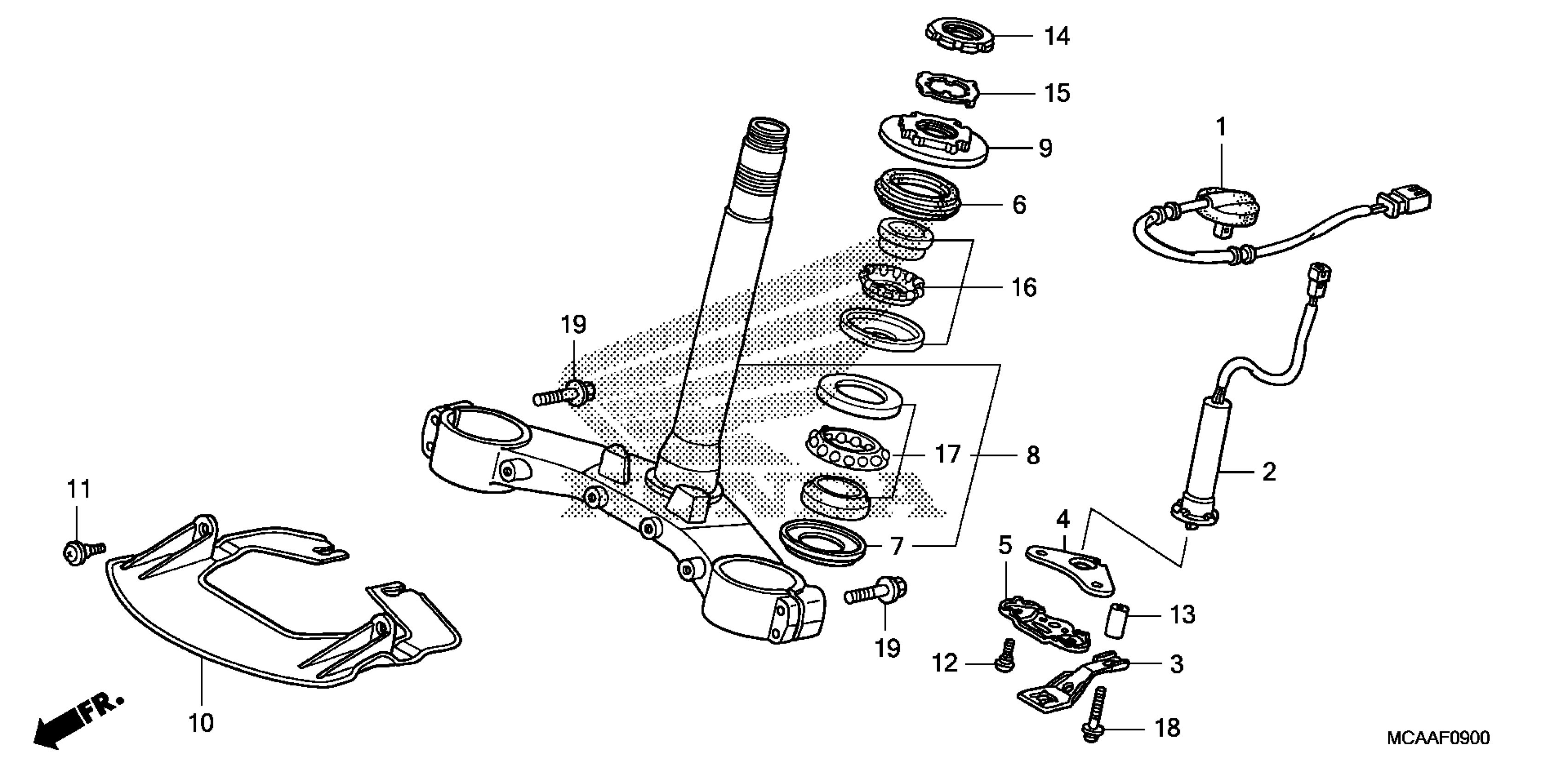

Honda GL18005A (09) GOLD WING, USA, VIN# 1HFSC47H-9A800001 TO 1HFSC47H-9A899999 STEERING STEM Diagram

CANCEL UNIT, TURN SIGNAL

35220-MCA-003

$245.51

SUPPORT, SENSOR

50231-MB9-010

$8.90

PLATE, ANGLE SENSOR (UPPER)

50261-MCA-000

$8.12

PLATE, ANGLE SENSOR (LOWER)

50262-MCA-000

$6.61

DUST SEAL, STEERING HEAD (ARAI)

53214-KA4-701

$6.16

DUST SEAL, STEERING HEAD (ARAI)

53214-MR7-003

$5.42

STEM SUB-ASSY., STEERING

53219-MCA-A00

$371.17

THREAD, STEERING HEAD TOP

53220-MW0-000

$17.18

PROTECTOR, WIND

61403-MCA-000

$23.33

SCREW, HINGE PATCH

90101-GE0-000

$2.77

SCREW, SPECIAL (5MM)

90106-MBA-610

$2.80

COLLAR, SENSOR SUPPORT

90113-MCA-000

$6.12

THREAD, STEERING HEAD TOP (B)

90302-425-830

$19.51

WASHER, LOCK

90506-425-830

$6.56

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$31.88

BEARING, HEAD PIPE (NTN)

91016-MR7-003

$41.56

SCREW-WASHER (5X30)

93894-05030-08

$5.61

BOLT, FLANGE (8X35)

90103-MCA-A80

$2.42
