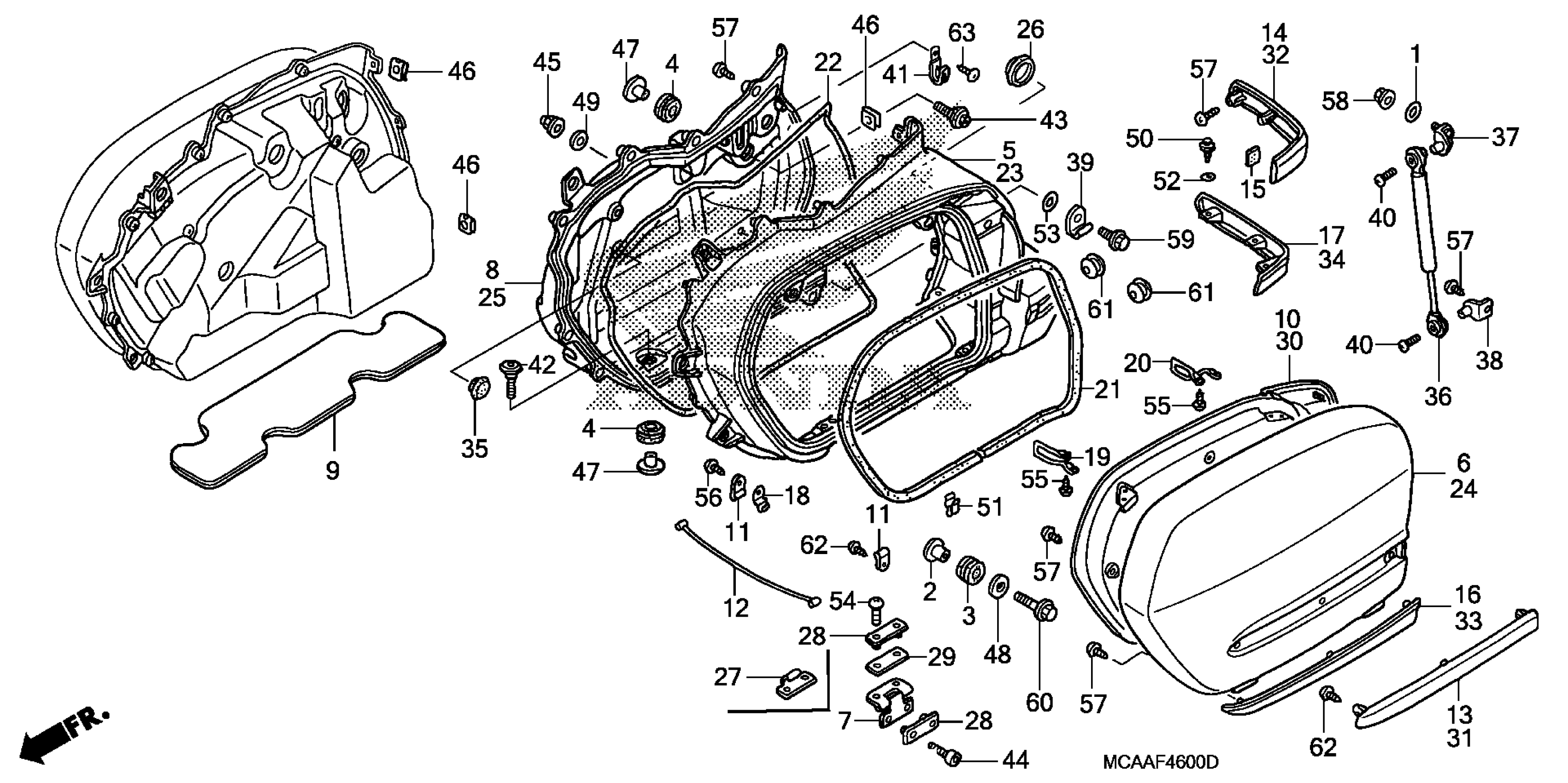

Honda GL18005A (09) GOLD WING, USA, VIN# 1HFSC47H-9A800001 TO 1HFSC47H-9A899999 SADDLEBAG Diagram

O-RING (4.8X1.9)

15142-PE0-000

$2.65

COLLAR, RADIATOR MOUNTING

19052-KA3-710

$6.44

RUBBER, HEADLIGHT GUARD

61320-KZ9-000

$4.38

RUBBER, SADDLEBAG MOUNTING

80201-MCA-000

$14.03

BODY, R. SADDLEBAG *B205M* (MONTEREY BLUE METALLIC)

81211-MCA-A60ZP

$492.28

BODY, R. SADDLEBAG *NHA54M* (PEWTER SILVER METALLIC)

81211-MCA-A60ZQ

Unavailable

BODY, R. SADDLEBAG *R287M* (BLOODSTONE RED METALLIC)

81211-MCA-A60ZR

$492.22

BODY, R. SADDLEBAG *B191M* (COLOMBIA BLUE METALLIC)

81211-MCA-A60ZS

$299.13

BODY, R. SADDLEBAG *YR292M* (MESQUITE BROWN METALLIC)

81211-MCA-A60ZT

$492.22

BODY, R. SADDLEBAG *Y130P* (PEARL HOT ROD YELLOW)

81211-MCA-A60ZU

$492.28

LID, R. SADDLEBAG *Y130P* (PEARL HOT ROD YELLOW)

81221-MCA-000ZD

Unavailable

LID, R. SADDLEBAG *R287M* (BLOODSTONE RED METALLIC)

81221-MCA-000ZM

Unavailable

LID, R. SADDLEBAG *B205M* (MONTEREY BLUE METALLIC)

81221-MCA-000YE

$415.48

LID, R. SADDLEBAG *NHA54M* (PEWTER SILVER METALLIC)

81221-MCA-000YF

Unavailable

LID, R. SADDLEBAG *B191M* (COLOMBIA BLUE METALLIC)

81221-MCA-000YG

$397.57

LID, R. SADDLEBAG *YR292M* (MESQUITE BROWN METALLIC)

81221-MCA-000YH

Unavailable

HINGE, SADDLEBAG

81230-MCA-000

$31.43

PANEL, R. SADDLEBAG

81231-MCA-000

$80.70

GUARD, SADDLEBAG HEAT

81232-MCA-A40

$14.74

INNER LID, R. SADDLEBAG

81241-MCA-000

$58.74

STAY B, LID STOPPER

81254-MN5-000

$4.86

CABLE, SADDLEBAG STOPPER

81259-MCA-000

$4.28

MOLDING, R. SADDLEBAG SIDE *Y130P* (PEARL HOT ROD YELLOW)

81261-MCA-000ZD

$175.87

MOLDING, R. SADDLEBAG SIDE *R287M* (BLOODSTONE RED METALLIC)

81261-MCA-000ZM

Unavailable

MOLDING, R. SADDLEBAG SIDE *B205M* (MONTEREY BLUE METALLIC)

81261-MCA-000YE

$171.29

MOLDING, R. SADDLEBAG SIDE *NHA54M* (PEWTER SILVER METALLIC)

81261-MCA-000YF

$171.25

MOLDING, R. SADDLEBAG SIDE *B191M* (COLOMBIA BLUE METALLIC)

81261-MCA-000YG

$161.97

MOLDING, R. SADDLEBAG SIDE *YR292M* (MESQUITE BROWN METALLIC)

81261-MCA-000YH

Unavailable

MOLDING, R. RR. SADDLEBAG *Y130P* (PEARL HOT ROD YELLOW)

81271-MCA-000ZD

$177.09

MOLDING, R. RR. SADDLEBAG *R287M* (BLOODSTONE RED METALLIC)

81271-MCA-000ZM

Unavailable

MOLDING, R. RR. SADDLEBAG *B205M* (MONTEREY BLUE METALLIC)

81271-MCA-000YE

$168.86

MOLDING, R. RR. SADDLEBAG *NHA54M* (PEWTER SILVER METALLIC)

81271-MCA-000YF

$176.45

MOLDING, R. RR. SADDLEBAG *B191M* (COLOMBIA BLUE METALLIC)

81271-MCA-000YG

$167.36

MOLDING, R. RR. SADDLEBAG *YR292M* (MESQUITE BROWN METALLIC)

81271-MCA-000YH

$167.36

TAPE (25X25)

81272-MCA-300

$1.52

MOLDING, R. SADDLEBAG SIDE (LOWER) *Y130P* (PEARL HOT ROD YELLOW)

81281-MCA-000ZD

$97.75

MOLDING, R. SADDLEBAG SIDE (LOWER) *R287M* (BLOODSTONE RED METALLIC)

81281-MCA-000ZM

$101.48

MOLDING, R. SADDLEBAG SIDE (LOWER) *B205M* (MONTEREY BLUE METALLIC)

81281-MCA-000YE

$91.07

MOLDING, R. SADDLEBAG SIDE (LOWER) *NHA54M* (PEWTER SILVER METALLIC)

81281-MCA-000YF

$102.04

MOLDING, R. SADDLEBAG SIDE (LOWER) *B191M* (COLOMBIA BLUE METALLIC)

81281-MCA-000YG

$40.10

MOLDING, R. SADDLEBAG SIDE (LOWER) *YR292M* (MESQUITE BROWN METALLIC)

81281-MCA-000YH

$101.25

MOLDING, R. RR. SADDLEBAG (LOWER) *Y130P* (PEARL HOT ROD YELLOW)

81282-MCA-000ZD

$98.58

MOLDING, R. RR. SADDLEBAG (LOWER) *R287M* (BLOODSTONE RED METALLIC)

81282-MCA-000ZM

Unavailable

MOLDING, R. RR. SADDLEBAG (LOWER) *B205M* (MONTEREY BLUE METALLIC)

81282-MCA-000YE

$98.32

MOLDING, R. RR. SADDLEBAG (LOWER) *NHA54M* (PEWTER SILVER METALLIC)

81282-MCA-000YF

Unavailable

MOLDING, R. RR. SADDLEBAG (LOWER) *B191M* (COLOMBIA BLUE METALLIC)

81282-MCA-000YG

$41.33

MOLDING, R. RR. SADDLEBAG (LOWER) *YR292M* (MESQUITE BROWN METALLIC)

81282-MCA-000YH

$116.91

GUIDE, STOPPER CABLE

81292-MCA-000

$3.32

ROD A, SADDLEBAG STRIKER

81321-MCA-780

$18.78

ROD B, SADDLEBAG STRIKER

81322-MCA-780

$18.78

RUBBER, SADDLEBAG SEAL

81350-MCA-000

$25.26

RUBBER, BACK PANEL SEAL

81351-MCA-000

$33.86

BODY, L. SADDLEBAG *B205M* (MONTEREY BLUE METALLIC)

81411-MCA-A60ZP

$492.28

BODY, L. SADDLEBAG *NHA54M* (PEWTER SILVER METALLIC)

81411-MCA-A60ZQ

Unavailable

BODY, L. SADDLEBAG *R287M* (BLOODSTONE RED METALLIC)

81411-MCA-A60ZR

$492.26

BODY, L. SADDLEBAG *B191M* (COLOMBIA BLUE METALLIC)

81411-MCA-A60ZS

$314.70

BODY, L. SADDLEBAG *YR292M* (MESQUITE BROWN METALLIC)

81411-MCA-A60ZT

$492.33

BODY, L. SADDLEBAG *Y130P* (PEARL HOT ROD YELLOW)

81411-MCA-A60ZU

$492.28

LID, L. SADDLEBAG *Y130P* (PEARL HOT ROD YELLOW)

81421-MCA-000ZD

$522.49

LID, L. SADDLEBAG *R287M* (BLOODSTONE RED METALLIC)

81421-MCA-000ZM

$540.78

LID, L. SADDLEBAG *B205M* (MONTEREY BLUE METALLIC)

81421-MCA-000YE

$397.55

LID, L. SADDLEBAG *NHA54M* (PEWTER SILVER METALLIC)

81421-MCA-000YF

$397.55

LID, L. SADDLEBAG *B191M* (COLOMBIA BLUE METALLIC)

81421-MCA-000YG

$418.20

LID, L. SADDLEBAG *YR292M* (MESQUITE BROWN METALLIC)

81421-MCA-000YH

Unavailable

PANEL, L. SADDLEBAG

81431-MCA-000

$75.59

RUBBER, SADDLEBAG LIGHT

81433-MCA-A60

$13.35

WASHER, HINGE SETTING

81438-MCA-000

$4.70

WASHER, HINGE SETTING

81438-MN5-000

$8.19

RUBBER, HINGE SEAL (UPPER)

81439-MN5-000

$4.83

INNER LID, L. SADDLEBAG

81441-MCA-000

$65.71

MOLDING, L. SADDLEBAG SIDE *Y130P* (PEARL HOT ROD YELLOW)

81461-MCA-000ZD

$175.75

MOLDING, L. SADDLEBAG SIDE *R287M* (BLOODSTONE RED METALLIC)

81461-MCA-000ZM

$168.32

MOLDING, L. SADDLEBAG SIDE *B205M* (MONTEREY BLUE METALLIC)

81461-MCA-000YE

$161.65

MOLDING, L. SADDLEBAG SIDE *NHA54M* (PEWTER SILVER METALLIC)

81461-MCA-000YF

$161.61

MOLDING, L. SADDLEBAG SIDE *B191M* (COLOMBIA BLUE METALLIC)

81461-MCA-000YG

$156.36

MOLDING, L. SADDLEBAG SIDE *YR292M* (MESQUITE BROWN METALLIC)

81461-MCA-000YH

$164.23

MOLDING, L. RR. SADDLEBAG *Y130P* (PEARL HOT ROD YELLOW)

81471-MCA-000ZD

$175.52

MOLDING, L. RR. SADDLEBAG *R287M* (BLOODSTONE RED METALLIC)

81471-MCA-000ZM

$167.67

MOLDING, L. RR. SADDLEBAG *B205M* (MONTEREY BLUE METALLIC)

81471-MCA-000YE

$167.58

MOLDING, L. RR. SADDLEBAG *NHA54M* (PEWTER SILVER METALLIC)

81471-MCA-000YF

$167.58

MOLDING, L. RR. SADDLEBAG *B191M* (COLOMBIA BLUE METALLIC)

81471-MCA-000YG

$167.67

MOLDING, L. RR. SADDLEBAG *YR292M* (MESQUITE BROWN METALLIC)

81471-MCA-000YH

$167.58

MOLDING, L. SADDLEBAG SIDE (LOWER) *Y130P* (PEARL HOT ROD YELLOW)

81481-MCA-000ZD

$101.75

MOLDING, L. SADDLEBAG SIDE (LOWER) *R287M* (BLOODSTONE RED METALLIC)

81481-MCA-000ZM

$101.48

MOLDING, L. SADDLEBAG SIDE (LOWER) *B205M* (MONTEREY BLUE METALLIC)

81481-MCA-000YE

$101.00

MOLDING, L. SADDLEBAG SIDE (LOWER) *NHA54M* (PEWTER SILVER METALLIC)

81481-MCA-000YF

$97.52

MOLDING, L. SADDLEBAG SIDE (LOWER) *B191M* (COLOMBIA BLUE METALLIC)

81481-MCA-000YG

$47.28

MOLDING, L. SADDLEBAG SIDE (LOWER) *YR292M* (MESQUITE BROWN METALLIC)

81481-MCA-000YH

$47.28

MOLDING, L. RR. SADDLEBAG (LOWER) *Y130P* (PEARL HOT ROD YELLOW)

81482-MCA-000ZD

$99.26

MOLDING, L. RR. SADDLEBAG (LOWER) *R287M* (BLOODSTONE RED METALLIC)

81482-MCA-000ZM

$99.26

MOLDING, L. RR. SADDLEBAG (LOWER) *B205M* (MONTEREY BLUE METALLIC)

81482-MCA-000YE

$94.78

MOLDING, L. RR. SADDLEBAG (LOWER) *NHA54M* (PEWTER SILVER METALLIC)

81482-MCA-000YF

$99.26

MOLDING, L. RR. SADDLEBAG (LOWER) *B191M* (COLOMBIA BLUE METALLIC)

81482-MCA-000YG

$91.03

MOLDING, L. RR. SADDLEBAG (LOWER) *YR292M* (MESQUITE BROWN METALLIC)

81482-MCA-000YH

$99.26

GROMMET, DRAIN HOLE (25MM)

82871-671-000

$4.15

DAMPER, OPENER

83590-MCA-013

$53.25

PLATE, DAMPER MOUNTING (UPPER)

83591-MCA-000

$3.00

PLATE, DAMPER MOUNTING (LOWER)

83592-MCA-000

$2.94

STAY, TOOL SETTING (A) (L. SIDE ONLY)

89106-MN5-000

$5.39

SCREW, PAN (5X12)

90104-964-000

$2.13

CLIP, TUBE

90106-KJ6-740

$3.74

SCREW, SPECIAL (6MM)

90109-MCA-000

$3.41

SCREW, SPECIAL (6MM)

90119-MCA-000

$3.64

BOLT, TORX (5X14)

90131-MY3-781

$2.62

NUT, CAP (L. SIDE ONLY)

90201-428-900

$2.03

NUT, SPRING (6MM)

90320-MM5-000

$2.58

COLLAR, SADDLEBAG MOUNTING

90501-MCA-000

$4.70

WASHER, FENDER MOUNTING

90506-430-000

$2.71

WASHER (6X20) WASHER, CHAIN CASE SETTING

90512-KF9-900

$2.85

CLIP, MOLDING (LOWER)

90654-MCA-000

$2.26

CLIP, SADDLEBAG

90655-MCA-000

$2.77

O-RING (6X1.7) (ARAI)

91317-171-003

$2.80

O-RING (8.5X1.5) (L. SIDE ONLY)

91352-GAZ-930

$2.12

SCREW, PAN (5X14)

93500-05014-0G

$3.32

SCREW, TAPPING (5X16)

93901-25380

$0.83

SCREW, TAPPING (4X10)

93903-24280

$1.23

SCREW, TAPPING (5X12)

93903-25280

$1.23

NUT, FLANGE (5MM)

94050-05000

$1.19

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

Unavailable

BOLT, FLANGE (6X30)

96001-06030-00

$1.28

SCREW, TAPPING (5X16)

93903-25380

$0.83

SCREW, TAPPING (5X10)

93903-25180

$0.83
