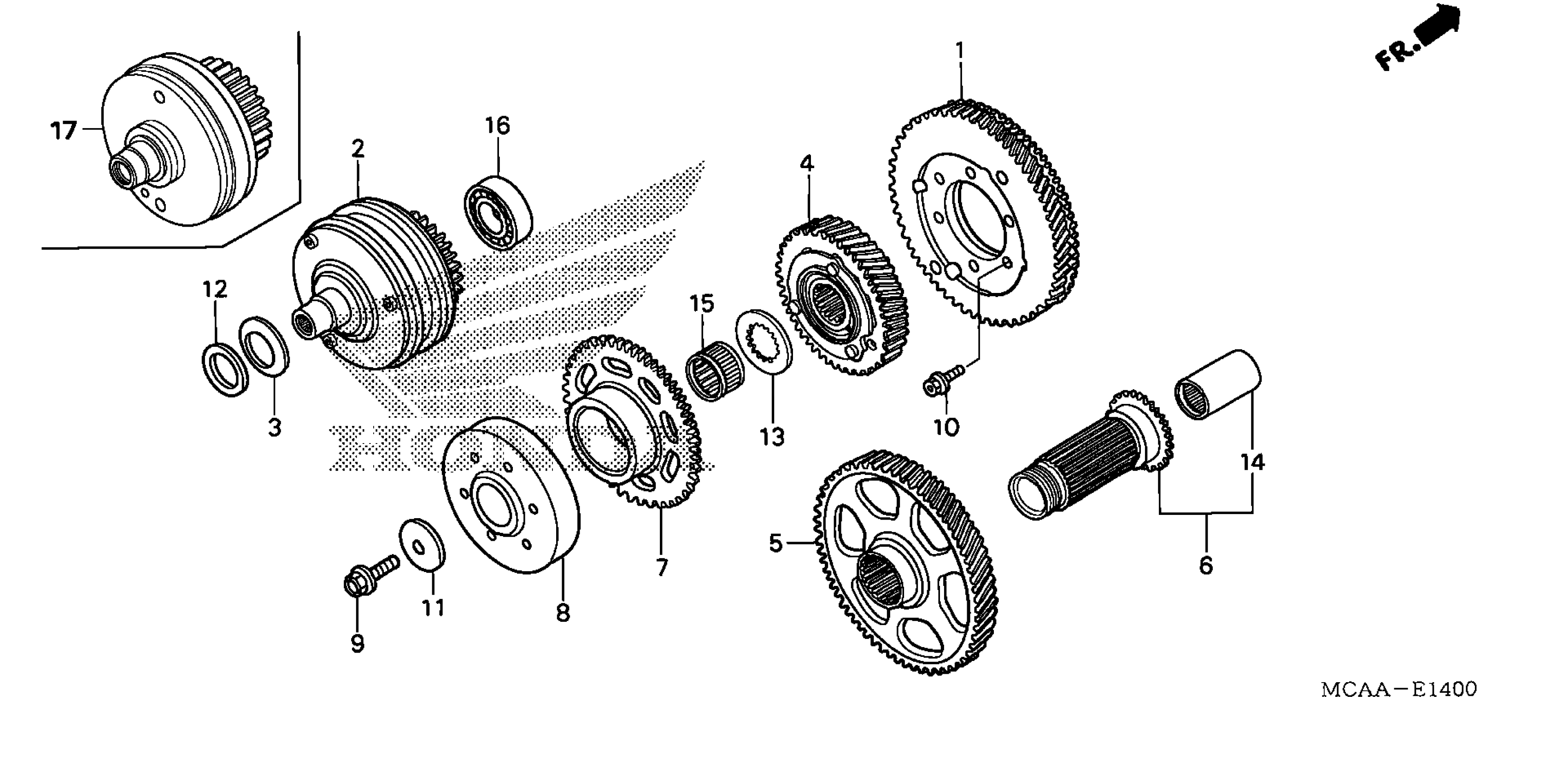

Honda GL18005A (09) GOLD WING, USA, VIN# 1HFSC47H-9A800001 TO 1HFSC47H-9A899999 PRIMARY DRIVE GEAR Diagram

GEAR, ALTERNATOR DRIVE (74T)

13320-MCA-A60

$212.49

GEAR, PRIMARY DRIVE (49T)

23110-MN5-010

$254.96

GEAR, PRIMARY DRIVEN (78T)

23121-MCA-000

$105.70

BOSS, PRIMARY DRIVEN GEAR (33T)

23130-MCA-000

$109.14

GEAR, STARTING DRIVEN (46T)

28110-MCA-000

$130.90

CLUTCH, STARTER (OUTER)

28125-MN5-014

$262.64

BOLT, UBS (12X30) (LEFT HAND THREAD)

90005-MCA-000

$4.94

BOLT, HEX. (8X25)

90108-KV3-000

$2.20

WASHER (12.2X39X4)

90402-MCA-A01

$4.45

WASHER, SPLINE (28MM)

90493-MN5-000

$19.97

BEARING, NEEDLE (28X35X60)

91024-MN5-003

$45.20

BEARING, NEEDLE (36X41X18.3)

91027-MCA-003

$12.81

BEARING, RADIAL BALL (6004R)

96140-60040-00

Unavailable

GEAR ASSY., ALTERNATOR DRIVEN (27T) This part replaces 13430-MCA-A60.

13430-MCA-A61

$764.19

GEAR ASSY., ALTERNATOR DRIVEN (27T)

13430-MCA-A61

$764.19
