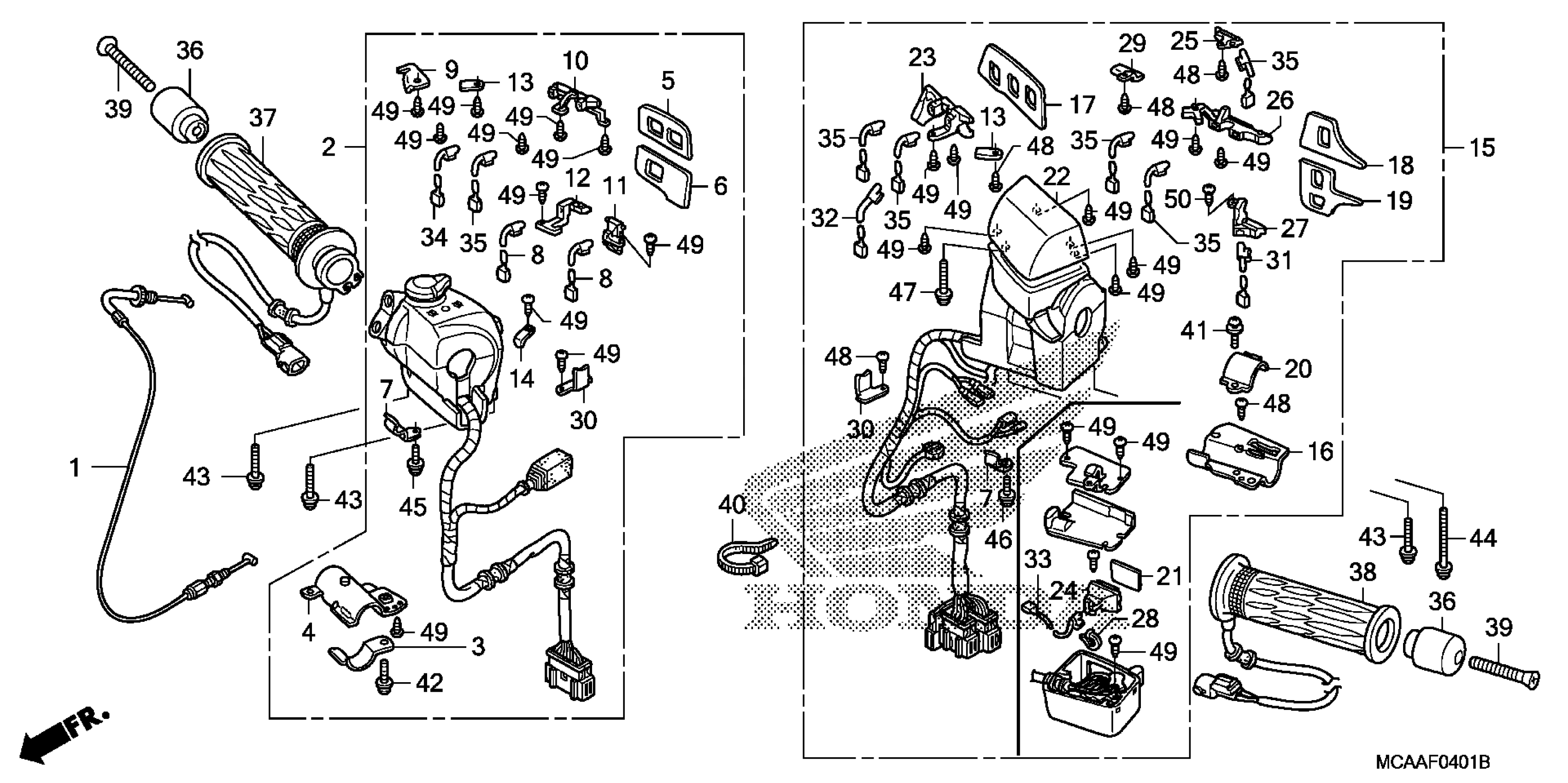

Honda GL18005A (09) GOLD WING, USA, VIN# 1HFSC47H-9A800001 TO 1HFSC47H-9A899999 HANDLE SWITCH (2) Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MCA-A60

$19.59

2

SWITCH ASSY., STARTER & STOP & CRUISE

35130-MCA-S41

$338.87

2

SWITCH ASSY., STARTER & STOP & CRUISE This part replaces 35130-MCA-R31.

35130-MCA-S41

$338.87

3

PLATE A, STOP SWITCH SETTING

35132-MCA-003

$5.28

4

PLATE B, STOP SWITCH SETTING

35133-MCA-003

$5.54

5

PLATE, ORNAMENT (A)

35134-MCA-A20

$2.92

6

PLATE, ORNAMENT (B)

35135-MCA-A20

$2.92

7

CLAMP, WIRE

35135-MCA-A70

$1.49

8

BULB

35139-MCA-A20

$10.15

9

CLAMP, WIRE (A)

35141-MCA-A20

$1.49

10

LENS, R. (UPPER)

35142-MCA-A20

$15.87

11

LENS, R. (LOWER) (A)

35143-MCA-A20

$15.87

12

LENS, R. (LOWER) (B)

35144-MCA-A20

$15.87

13

CLAMP, WIRE (B)

35145-MCA-A20

$1.49

14

CLAMP, WIRE (D)

35146-MCA-A20

$1.49

15

SWITCH ASSY., TURN SIGNAL & AUDIO

35200-MCA-R41

$694.21

16

PLATE SET A, TURN SIGNAL

35202-MCA-003

$5.69

17

PLATE, ORNAMENT (A)

35203-MCA-A20

$4.78

18

PLATE, ORNAMENT (C)

35205-MCA-A20

$3.56

19

PLATE, ORNAMENT (D)

35206-MCA-A20

$5.00

20

PLATE SET B, TURN SIGNAL

35207-MCA-003

$3.13

21

PLATE, ORNAMENT (ZOOM & MAP/GUIDE)

35209-MCA-A70

$12.61

22

CASE, AUDIO (UPPER)

35211-MCA-A20

$13.49

23

LENS, AUDIO

35212-MCA-A20

$23.99

24

LENS, NAVIGATION

35212-MCA-A70

$9.59

25

LENS, TURN SIGNAL (A)

35213-MCA-A20

$15.87

26

LENS, TURN SIGNAL (B)

35214-MCA-A20

$14.97

27

LENS (LOWER)

35215-MCA-A20

$14.97

28

BAND, WIRE HARNESS

35216-MCA-A70

$1.26

29

CLAMP, WIRE (UPPER)

35217-MCA-A20

$1.49

30

CLAMP, WIRE

35218-MCA-A20

$1.49

31

BULB (T3) (A)

35219-MCA-A20

$10.77

32

BULB (T3) (B)

35220-MCA-A20

$10.77

33

BULB (T3) (D)

35222-MCA-A70

$10.34

34

BULB (T3) (C) (CORD LENGTH:100MM)

39206-MCA-013

$10.75

35

BULB (T3) (B) (CORD LENGTH:75MM)

39208-MCA-003

$10.75

36

WEIGHT, HANDLEBAR

53105-MK4-620

$15.03

37

GRIP, R. HEATED (COO) This part replaces 53165-MCA-A72.

53165-MCA-305

$241.49

37

GRIP, R. HEATED (COO)

53165-MCA-305

$241.49

38

GRIP, L. HEATED (COO) This part replaces 53166-MCA-A73.

53166-MCA-315

$257.23

38

GRIP, L. HEATED (COO) This part replaces 53166-MCA-305.

53166-MCA-315

$257.23

38

GRIP, L. HEATED (COO)

53166-MCA-315

$257.23

39

SCREW, OVAL (6X65)

90191-KBG-000

$4.94

41

SCREW-WASHER (5X10)

93892-05010-08

$1.49

42

SCREW-WASHER (5X20)

93892-05020-08

$1.49

43

SCREW-WASHER (5X25)

93892-05025-07

$1.49

44

SCREW-WASHER (5X45)

93892-05045-07

$1.49

45

SCREW-WASHER (4X8)

93893-04008-07

$1.49

45

SCREW-WASHER (4X8) This part replaces 93893-04008-17.

93893-04008-07

$1.49

46

SCREW-WASHER (4X12)

93893-04012-07

$1.49

47

SCREW-WASHER (5X32) (NOT AVAILABLE)

93893-05032-08

Unavailable

48

SCREW, TAPPING (3X8)

93901-32120

$1.49

49

SCREW, TAPPING (3X10)

93901-32220

$1.49

50

SCREW, TAPPING (3X12)

93901-32320

$1.49
