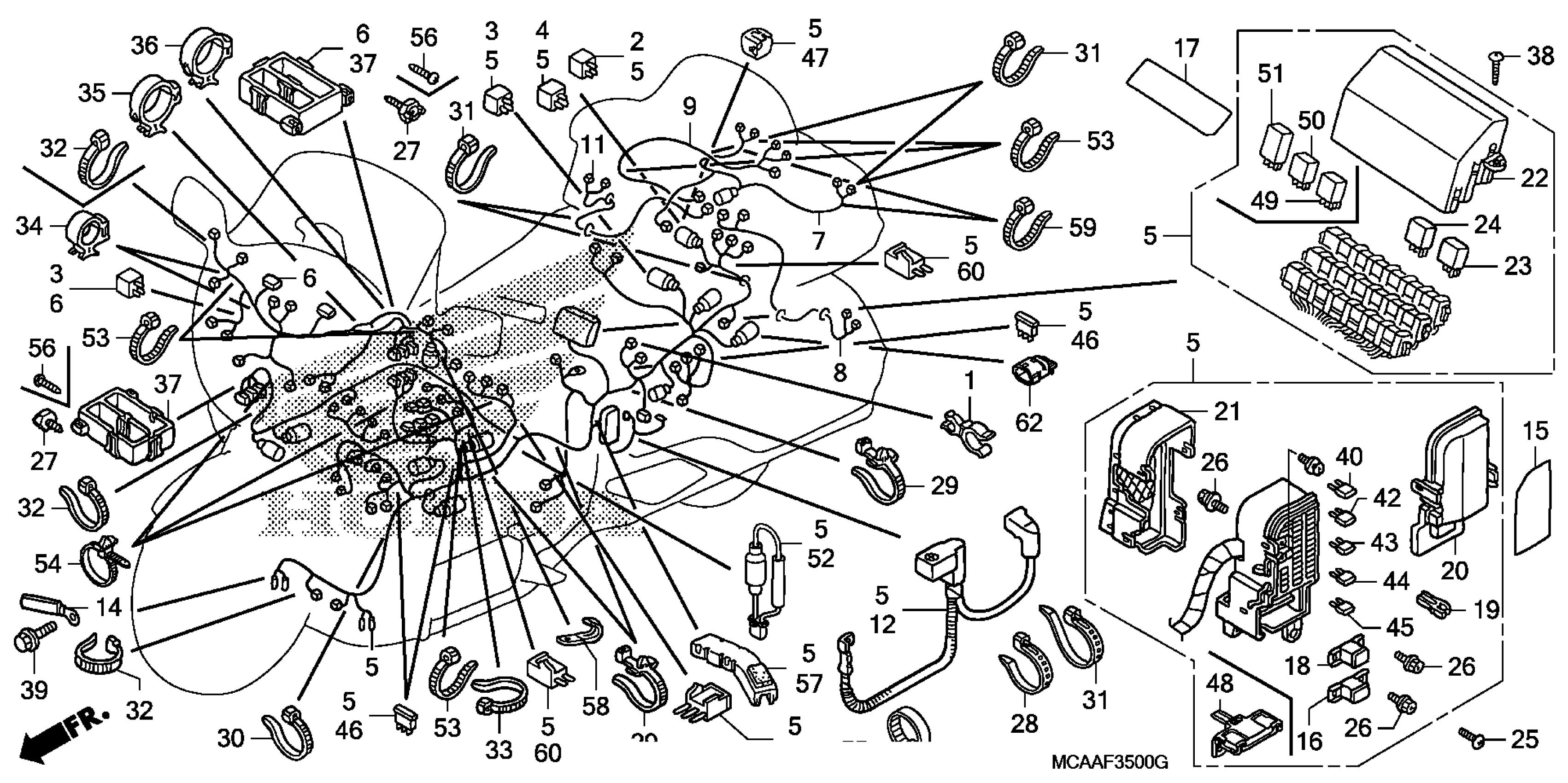

Honda GL18005A (06) GOLD WING, USA, VIN# 1HFSC47H-6A500001 TO 1HFSC47H-6A599999 WIRE HARNESS Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

11338-KJ9-751

$2.98

2

RECTIFIER, SILICON

31700-MM8-610

$24.98

5

WIRE HARNESS

32100-MCA-H31

Unavailable

6

SUB-HARNESS, FAIRING

32105-MCA-A72

Unavailable

7

SUB-HARNESS, TAIL&TRUNK

32120-MCA-A60

Unavailable

8

SUB-HARNESS, L. SADDLEBAG

32130-MCA-A60

$77.49

9

SUB-HARNESS, TRUNK UNIT

32140-MCA-A71

$394.20

11

SUB-HARNESS, R. SADDLEBAG

32180-MCA-A60

$82.64

12

CABLE, STARTER BATTERY

32401-MCA-A60

$23.23

16

FUSE, BLOCK (60A) (LOW-PROFILE)

38211-MCA-A61

$2.30

18

FUSE, BLOCK (30A)

38211-SNA-A11

$4.45

19

PULLER, MINI FUSE (SUMITOMO)

38235-S04-003

$1.49

20

COVER (UPPER)

38252-MCA-A61

$7.70

21

COVER (LOWER)

38256-MCA-A61

$7.08

22

COVER (UPPER)

38281-MCA-A61

$14.02

25

SCREW, SPECIAL (5X12)

90114-KFK-000

$1.59

29

BAND, WIRE HARNESS (150MM) (NATURAL)

90649-SC2-003

$5.81

32

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

33

BAND, SUCTION HOSE (BLACK) (Honda Code 3522752)

90679-SG9-E01

$3.73

34

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

35

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

37

HOLDER, CONNECTOR

91571-MCA-P00

$5.01

38

SCREW, TAPPING (5X16)

93903-25380

$1.49

40

FUSE, MINI (5A) (Honda Code 5026521)

98200-40500

$1.49

42

FUSE, MINI (10A)

98200-41000

$1.49

43

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.49

44

FUSE, MINI (20A)

98200-42000

$1.49

45

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.67

46

CONNECTOR, DIODE (3P)

32147-SF1-003

$35.59

47

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.52

48

FUSE A, MULTI BLOCK (120A/40A)

38231-SFE-J01

$22.04

49

RELAY ASSY., POWER (MICRO ISO 4P)

38501-MCA-A61

$15.47

50

RELAY ASSY., POWER (MICRO ISO 5P)

38502-MCA-A61

$15.47

51

RELAY, POWER (MICRO ISO 4P)

38503-MCA-A61

$3.53

52

FILTER, NOISE

39260-MCA-A01

Unavailable

53

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

54

STRAP, CABLE (118MM) (BLACK) (Honda Code 1170653)

90672-SA0-003

$6.24

55

STRAP, CABLE (105MM) *NH1* (BLACK)

90672-SB2-003

$5.47

56

SCREW, TAPPING (5X16)

93903-25320

$1.49

57

PROTECTOR, HARNESS (B)

32702-MCA-A61

$5.34
