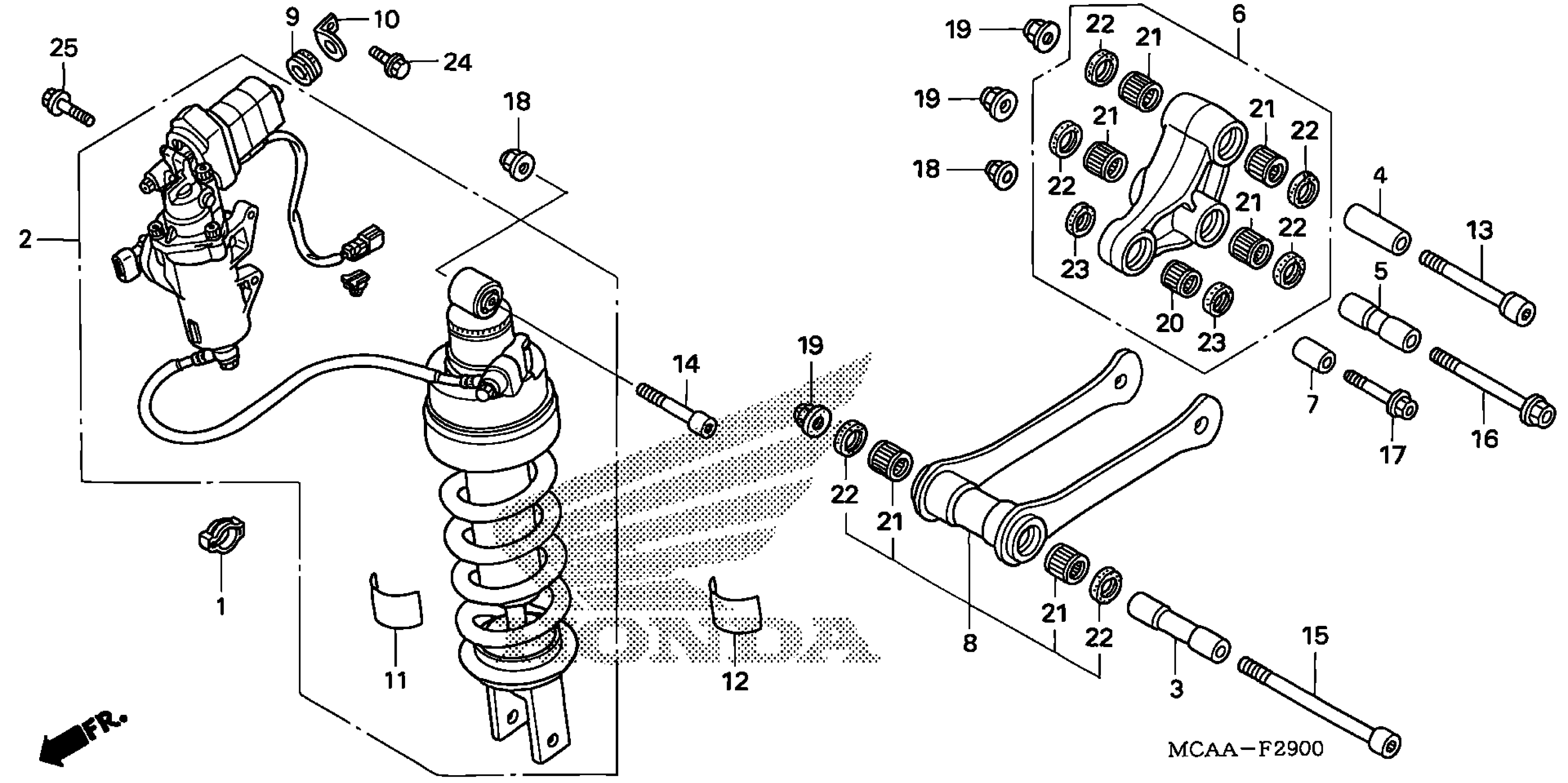

Honda GL18005A (06) GOLD WING, USA, VIN# 1HFSC47H-6A500001 TO 1HFSC47H-6A599999 REAR SHOCK ABSORBER Diagram

CLIP, THROTTLE WIRE

17938-SE0-941

$6.49

CUSHION ASSY., RR. This part replaces 52400-MCA-A61.

52400-MCA-A62

$1,421.55

CUSHION ASSY., RR.

52400-MCA-A62

$1,421.55

COLLAR, CONNECTING ROD PIVOT

52462-MCA-000

$14.96

COLLAR A, CUSHION ARM

52463-MAW-760

$8.74

COLLAR C, CUSHION ARM

52463-MCA-000

$10.97

ARM SUB-ASSY., CUSHION

52465-MCA-000

$266.00

COLLAR C, CUSHION ARM

52465-MY1-000

$5.50

ROD SUB-ASSY., CUSHION CONNECTING

52475-MCA-000

$115.06

GROMMET, MOTOR MOUNTING

52491-MCA-000

$4.70

STAY, MOTOR

52492-MCA-000

$3.26

LABEL, RR. DAMPER CAUTION (ENGLISH)

87516-KV6-610

$4.49

BOLT, SOCKET (12X90)

90110-MCA-000

$11.33

BOLT, SOCKET (10X55)

90110-ML7-000

$4.94

BOLT, SOCKET (12X127)

90111-MCA-000

$12.72

BOLT, FLANGE (12X99)

90123-MCA-000

$4.88

BOLT, FLANGE (10X55)

90153-KF0-000

$8.40

NUT, U (10MM) NUT, SELF-LOCK (10MM)

90304-GE8-003

$3.42

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

Unavailable

BEARING, NEEDLE (17X24X17) (KOYO)

91071-MY1-005

$17.67

BEARING, NEEDLE (20X26X20)

91072-MY1-005

$16.63

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$8.27

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.77

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

BOLT, FLANGE (8X25)

95701-08025-00

$1.62
