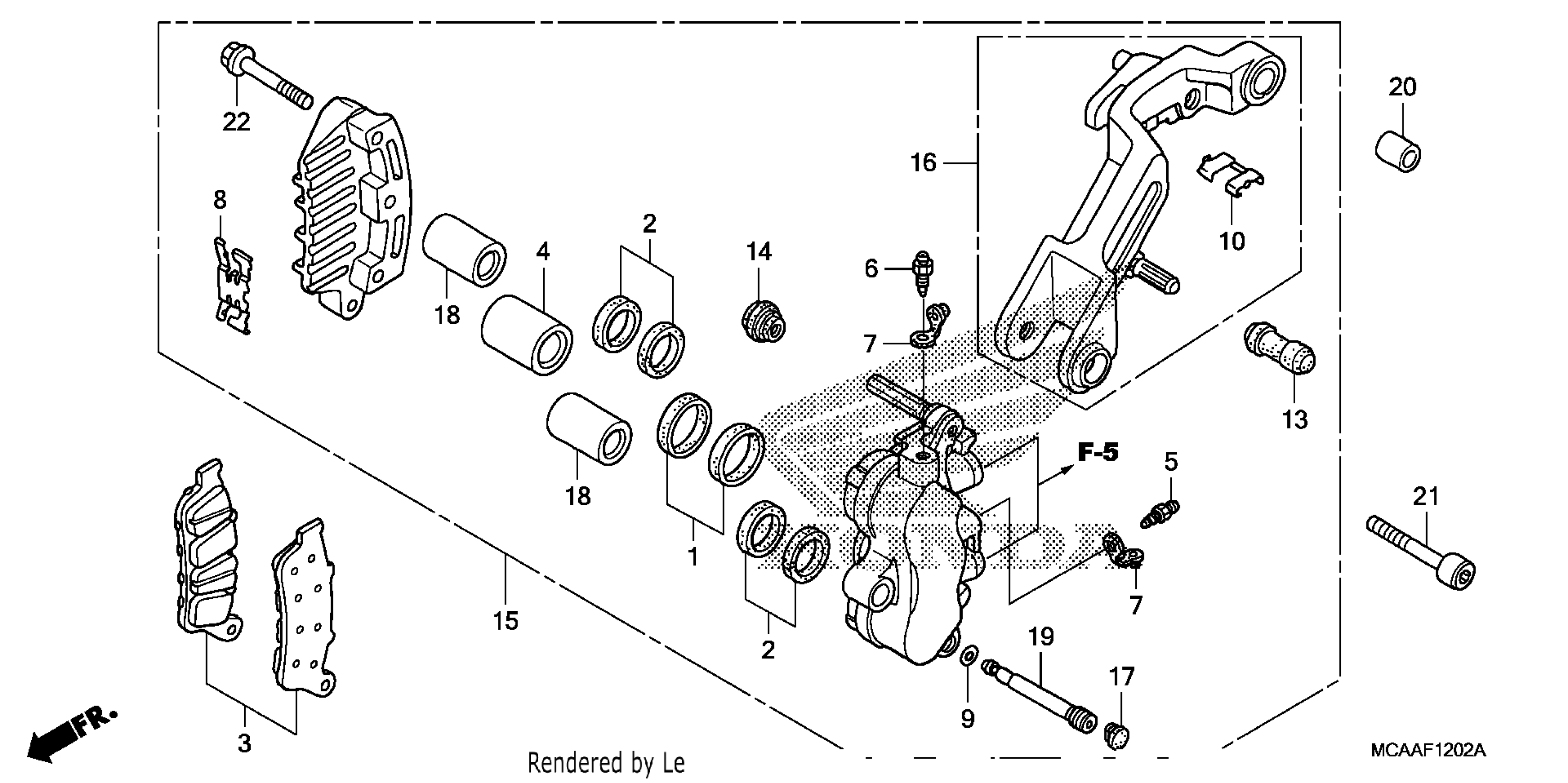

Honda GL18005A (06) GOLD WING, USA, VIN# 1HFSC47H-6A500001 TO 1HFSC47H-6A599999 LEFT FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)

06451-MZ2-405

$12.55

PAD SET, FR. This part replaces 06455-MCA-006.

06455-MCA-016

$45.64

PAD SET, FR.

06455-MCA-016

$45.64

PISTON (27X27)

43107-MBG-006

$33.79

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.22

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SPRING, PAD

45108-MZ2-016

$8.55

RING, STOPPER

45111-MAJ-G41

$3.80

RETAINER, BRACKET

45112-MZ2-006

$8.85

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-MCA-006

$250.20

BRACKET SUB-ASSY., L. FR.

45190-MCA-006

$62.08

PLUG, PIN

45203-MCC-006

$2.89

PISTON B (22X35)

45207-MAJ-G41

$30.00

PIN, HANGER

45215-MAJ-G41

$6.45

COLLAR, L. CALIPER BRACKET

45442-MAT-000

$4.94

BOLT, SOCKET (8X45)

90132-MZ2-000

$11.28

BOLT, FLANGE (8X45)

90135-MAJ-G41

$6.46
