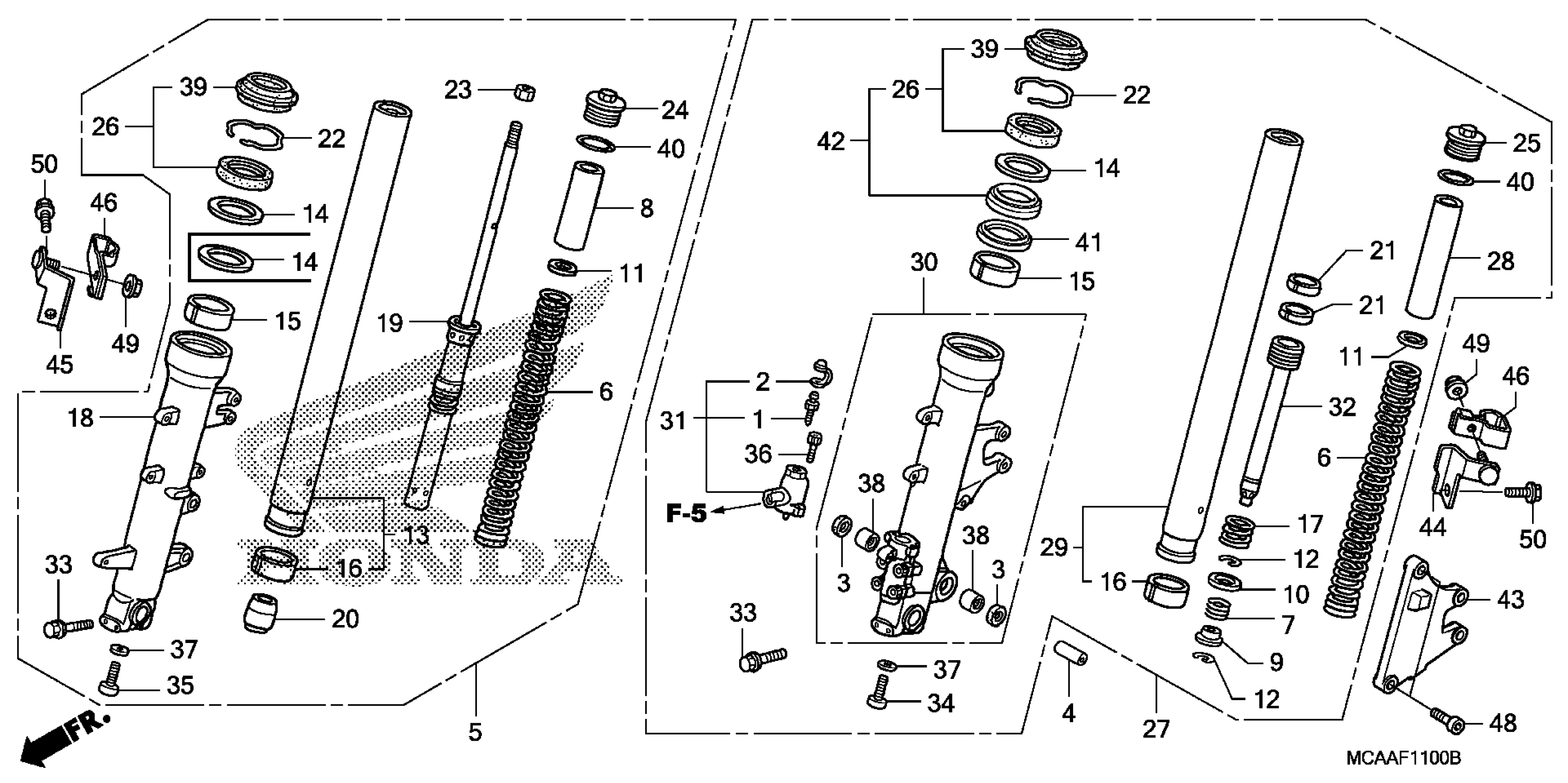

Honda GL18005A (06) GOLD WING, USA, VIN# 1HFSC47H-6A500001 TO 1HFSC47H-6A599999 FRONT FORK Diagram

#

Description
Price

1

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

2

CAP, BLEEDER

43353-461-771

$5.05

3

DUST SEAL, BRAKE CAM (NOK)

45134-KB7-005

$2.97

4

COLLAR, PIVOT

45452-MZ2-000

$10.04

5

FORK ASSY., R. FR.

51400-MCA-A61

Unavailable

6

SPRING, FR. FORK

51401-MCA-003

$41.22

7

SPRING, OIL LOCK

51402-MB7-611

$5.54

8

COLLAR, SPRING

51402-MCA-003

$5.03

9

VALVE, OIL LOCK

51403-MCA-003

$4.87

10

SEAT, SPRING

51404-MB7-611

$5.26

11

SEAT, SPRING

51405-KA4-711

$6.23

12

RING, STOPPER

51405-MB7-611

$2.92

13

PIPE, R. FR. FORK

51410-MCA-003

$266.08

14

RING, BACK-UP

51412-KZ3-003

$9.43

15

BUSH, GUIDE

51414-MCA-003

$11.11

16

BUSH, SLIDER

51415-MCA-003

$11.41

17

SPRING, FR. REBOUND (34.3N/MM, 3.5KGF/MM) (SHOWA)

51416-KA4-831

$14.15

18

CASE, R. (LOWER) (SHOWA)

51420-MCA-003

Unavailable

19

DAMPER, FR. This part replaces 51430-MCA-003.

51430-MCA-013

$137.13

19

DAMPER, FR.

51430-MCA-013

$137.13

20

PIECE, OIL LOCK

51432-MCA-003

$9.85

21

RING, PISTON

51437-MCA-003

$7.83

22

RING, OIL SEAL STOPPER

51447-KZ3-003

$5.12

23

NUT, HEX. (10MM)

51451-MAJ-G41

$2.90

24

BOLT, FR. FORK

51454-MBR-003

$32.34

25

BOLT, FR. FORK

51454-MCA-003

$18.28

26

SEAL SET, FR. FORK

51490-MCH-C11

$32.55

27

FORK ASSY., L. FR. (CONTRLD PART:CONTACT TECHLINE OR USE TL CONNECT TO ORDER)

51500-MCA-A61

Unavailable

28

COLLAR B, SPRING

51502-MCA-003

$5.03

29

PIPE, L. FR. FORK

51510-MCA-003

$162.49

30

CASE ASSY., L. (LOWER) (CONTRLD PART:CONTACT TECHLINE OR USE TL CONNECT TO ORDER)

51520-MCA-A61

$258.34

31

CASE, PLUNGER

51530-MCA-A61

$269.80

32

PIPE, SEAT

51540-MCA-003

$232.70

33

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

34

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

35

BOLT, SOCKET (8X27) BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

36

BOLT, SOCKET (5X18)

90118-MCA-003

$4.43

37

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

38

BEARING, NEEDLE (14X20X12)

91101-KG8-003

$38.54

39

DUST SEAL

91254-MCH-C11

$12.78

40

O-RING (37.2X2.4) (SHOWA)

91356-MW0-003

$2.92

41

RING, BACK-UP

51412-MCA-A61

$4.62

42

SEAL SET, FR. FORK

51490-MCA-A61

$32.73
