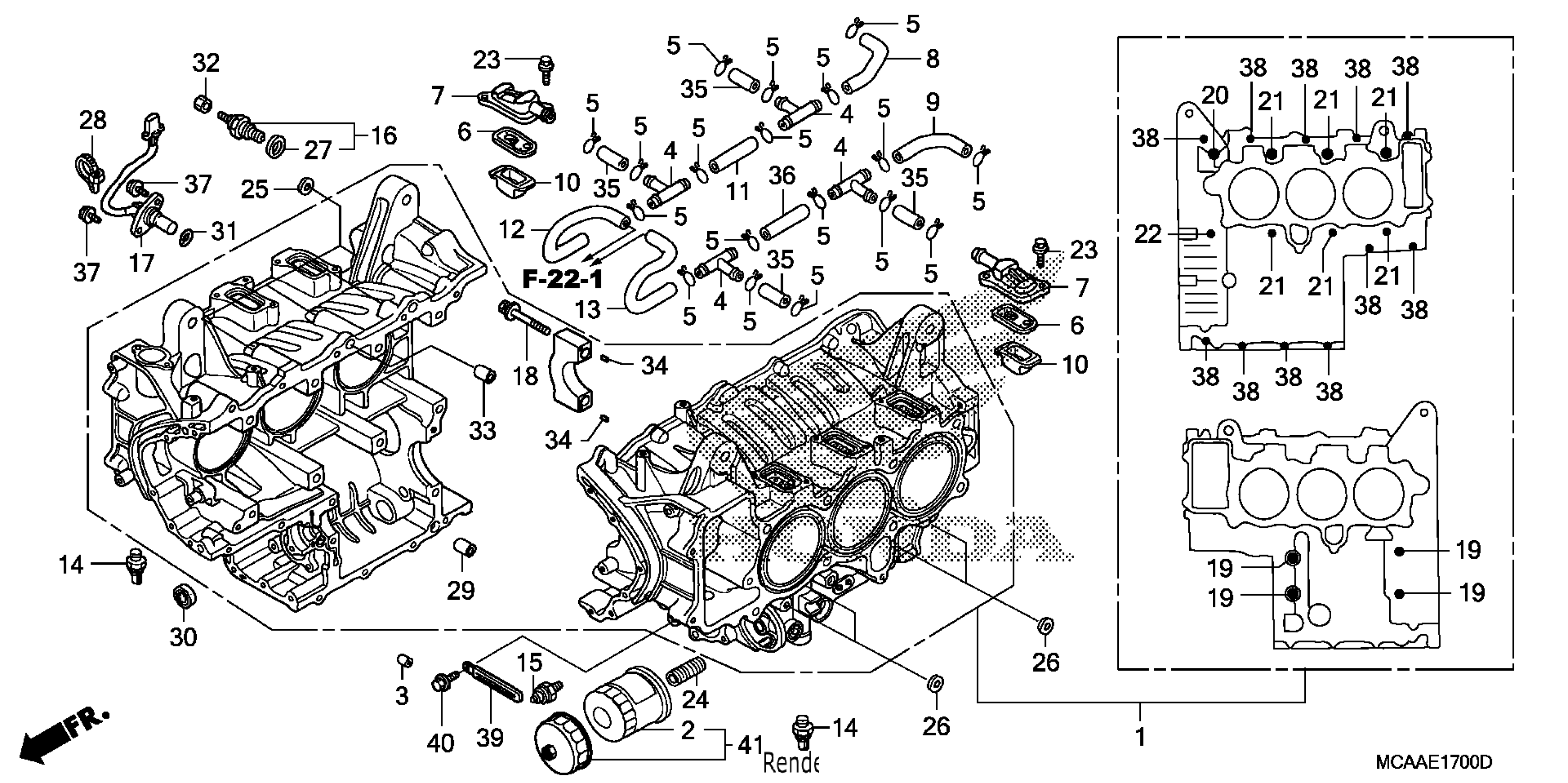

Honda GL18005A (06) GOLD WING, USA, VIN# 1HFSC47H-6A500001 TO 1HFSC47H-6A599999 CYLINDER BLOCK Diagram

#

Description
Price

1

BLOCK ASSY., CYLINDER

04911-MCA-W01

$1,808.20

1

BLOCK ASSY., CYLINDER This part replaces 11000-MEC-010.

04911-MCA-W01

$1,808.20

2

FILTER, OIL (WAKO FILTER) This part replaces 15410-MCJ-003.

15410-MFJ-D02

$13.80

2

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$13.80

2

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$13.80

3

ORIFICE (2.3MM)

15515-MCA-000

$4.52

4

JOINT, BREATHER (THREE-WAY)

15772-KK0-000

$11.04

5

CLIP, OIL DRAIN TUBE

17316-611-000

$8.28

6

VALVE, REED

18601-KGB-611

$24.13

7

COVER, REED VALVE This part replaces 18612-MBA-600.

18612-MBA-601

$13.16

7

COVER, REED VALVE

18612-MBA-601

$13.16

8

TUBE, R. AIR IN.

18651-MCA-780

$8.32

9

TUBE, L. AIR IN.

18652-MCA-000

$6.16

10

PLATE, AIR IN.

18653-MCA-000

$3.06

11

TUBE (12X62)

18655-MCA-000

$3.10

12

TUBE, R. AIR IN.

18662-MCA-A60

$8.62

13

TUBE, L. AIR IN.

18663-MCA-A60

$7.26

14

SENSOR ASSY., KNOCK

30530-MCA-003

$130.74

15

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$38.10

16

SWITCH ASSY., NEUTRAL (TOYO)

35600-MM5-003

$16.98

17

SENSOR ASSY., SPEED

37700-MCA-A61

$126.88

18

BOLT, UBS (12X77.5)

90003-MEC-000

$5.09

19

BOLT, FLANGE (8X135)

90006-MM5-640

$6.13

20

BOLT, FLANGE (10X120) (SATO)

90009-MEC-000

$3.46

21

BOLT, FLANGE (10X120) (SATO)

90009-371-015

$9.61

22

BOLT, FLANGE (10X197)

90011-MEC-000

$3.46

23

BOLT, FLANGE (5X14)

90012-896-750

$1.14

24

BOSS, OIL FILTER (Honda Code 1243435)

90019-MB0-000

$7.73

25

WASHER, SPECIAL (11X21X2.3)

90438-463-000

$2.42

26

WASHER, SEALING (8MM)

90441-MG8-000

$2.07

27

WASHER, NEUTRAL

90443-MJ6-000

$1.75

28

BAND, WIRE (BLACK)

90652-KT1-771

$4.16

29

COLLAR (15X20)

90702-371-000

$5.35

30

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$3.77

31

O-RING (18.1X3.6)

91302-MAL-601

$3.28

32

NUT, HEX. (4MM)

94001-04000-0S

$0.94

33

PIN A, DOWEL (12X20)

94301-12200

$2.25

34

PIN C, DOWEL (4X6.5)

94303-04065

$2.04

35

BULK HOSE, VACUUM (12X1000) (120X210) (BULK HOSE: 95005-12001-10M)

95005-12001-10M

Unavailable

36

BULK HOSE, VACUUM (12X1000) (120X210) (BULK HOSE: 95005-12001-10M)

95005-12001-10M

Unavailable

37

BOLT, FLANGE (6X16)

95701-06016-08

$1.32

38

BOLT, FLANGE (6X35)

95701-06035-08

$1.58

39

CLIP, WIRE HARNESS

32170-443-850

$4.68

40

BOLT, FLANGE (6X12)

96001-06012-00

$1.64
