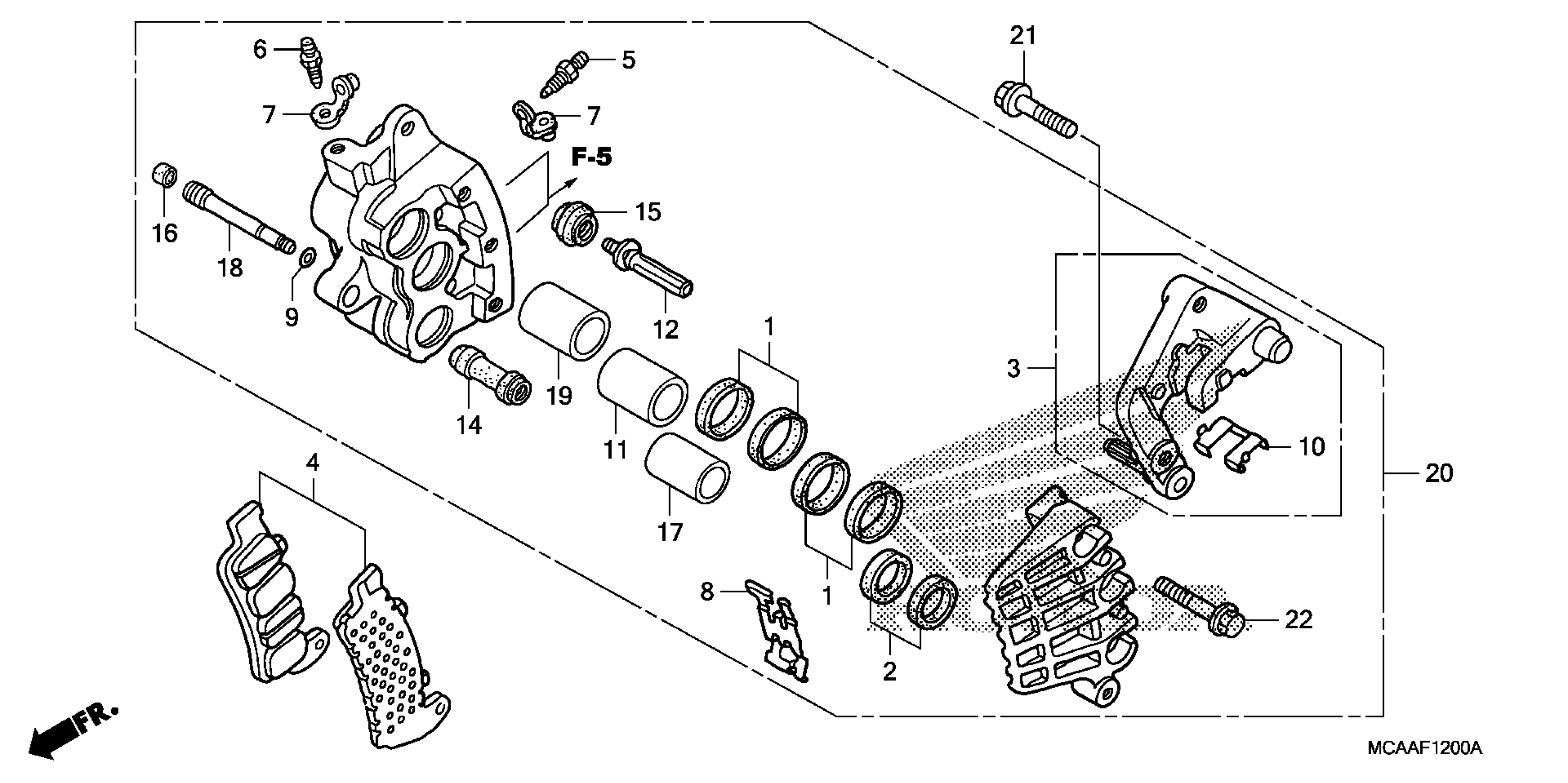

Honda GL18004A (09) GOLD WING, USA, VIN# 1HFSC47G-9A800001 TO 1HFSC47G-9A899999 RIGHT FRONT BRAKE CALIPER (GL1800) Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$10.47

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)

06451-MZ2-405

$11.51

BRACKET SUB-ASSY., R. FR.

06453-MBG-405

$132.60

PAD SET, FR.

06456-MCA-016

$40.68

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.04

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

SPRING, PAD

45108-MZ2-016

$7.88

RING, STOPPER

45111-MAJ-G41

$3.63

RETAINER, BRACKET

45112-MZ2-006

$8.14

PISTON A (25X27)

45117-MAJ-G41

$25.95

BOLT A, PIN (NISSIN)

45131-ML7-921

$14.17

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

PLUG, PIN

45203-MCC-006

$2.66

PISTON B (22X35)

45207-MAJ-G41

$27.55

PIN, HANGER

45215-MAJ-G41

$6.15

PISTON B (25X35)

45217-MAJ-G41

$33.92

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MCA-006

$222.63

BOLT, FLANGE (8X32)

90107-MT3-003

Unavailable

BOLT, FLANGE (8X45)

90135-MAJ-G41

$6.17
