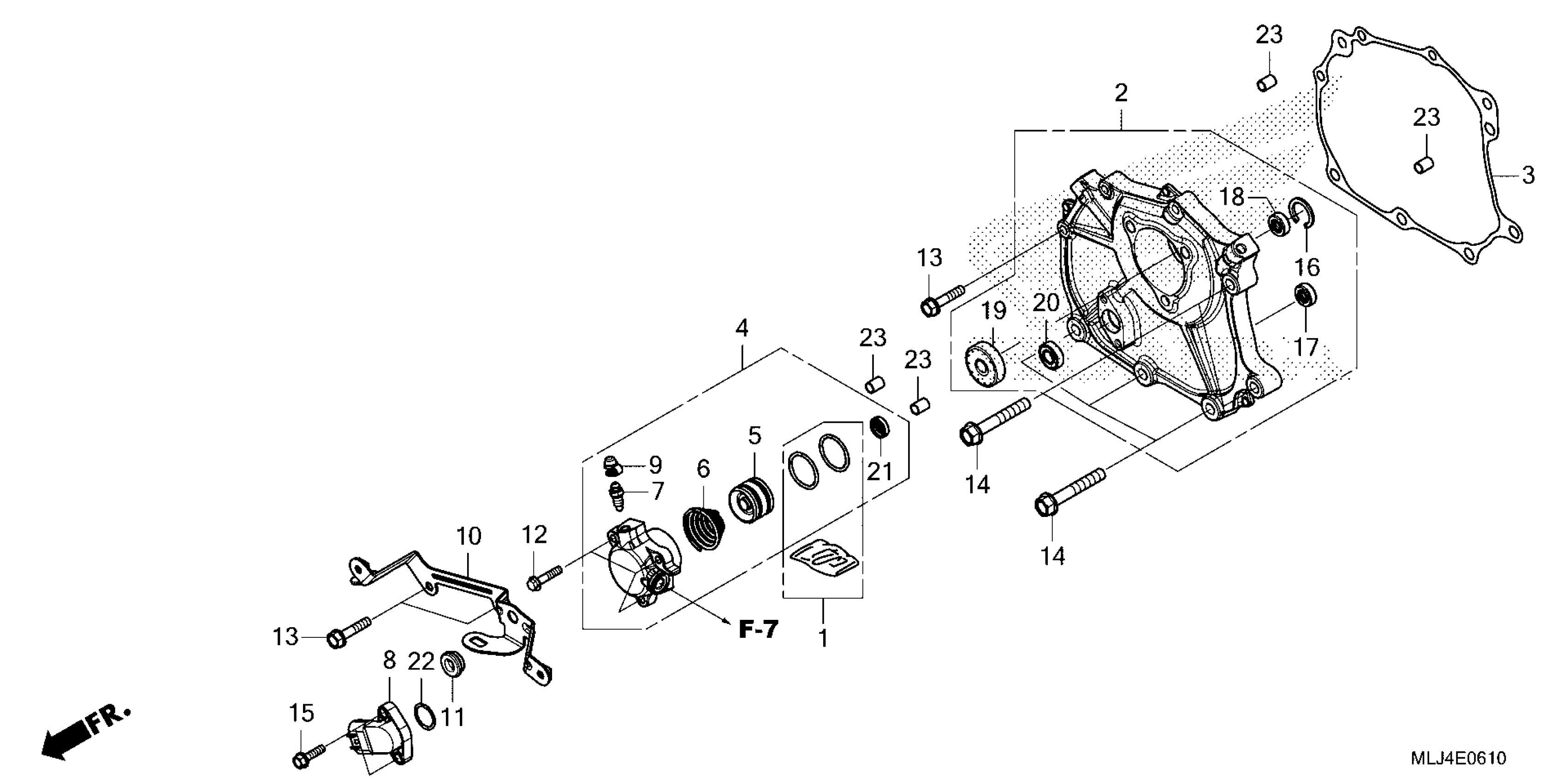

Honda GL18003AC (23) MOTORCYCLE, JPN, VIN# JH2SC790-PK500001 SHIFT COVER Diagram

#

Description
Price

1

O-RING SET

04121-MKC-A21

$5.60

2

COVER, SHIFT

11360-MKC-A20

$90.24

3

GASKET, SHIFT COVER

11365-MKC-A01

$13.60

4

CYLINDER ASSY., SLAVE

22860-MKC-A21

$171.25

5

PISTON, SLAVE CYLINDER

22863-MKC-A21

$23.34

6

SPRING, SLAVE CYLINDER

22864-MGE-003

$6.44

7

SCREW, BLEEDER

22866-MF2-711

$4.88

8

SENSOR ASSY., ANGLE (350DEGREE)

38800-MKC-A01

$121.44

9

CAP, BLEEDER

43353-461-771

$4.83

10

STAY, FR. (LOWER) (INNER)

64412-MKC-A00

$12.82

11

RUBBER, AIR DUCT COVER SETTING

64586-MBW-D20

$2.93

12

BOLT, FLANGE (6X28) (NSHF)

90017-GHB-680

$2.19

13

BOLT, FLANGE (6X28)

90033-MKC-A00

$2.09

14

BOLT, FLANGE (8X50)

90076-MKC-A00

$3.00

15

BOLT, FLANGE (5X20)

90097-MKC-A00

$1.96

16

CIRCLIP (INNER) (16)

90606-MKC-A00

$2.35

17

BEARING, RADIAL BALL (699ZZ)

91025-MGS-D21

$10.15

18

BEARING, RADIAL BALL (8X16X4)

91030-MKC-A01

$8.06

19

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$3.87

20

OIL SEAL (8X16X6) This part replaces 91208-MS2-611.

91254-792-003

$2.80

20

OIL SEAL (8X16X6) This part replaces 91208-689-005.

91254-792-003

$2.80

20

OIL SEAL (8X16X6)

91254-792-003

$2.80

21

OIL SEAL (8X18X5) (NISSIN)

91209-MB0-003

$3.87

22

O-RING, ANGLE SENSOR

91308-HN0-A10

$2.51

23

PIN A, DOWEL (8X10)

94301-08100

$2.62
