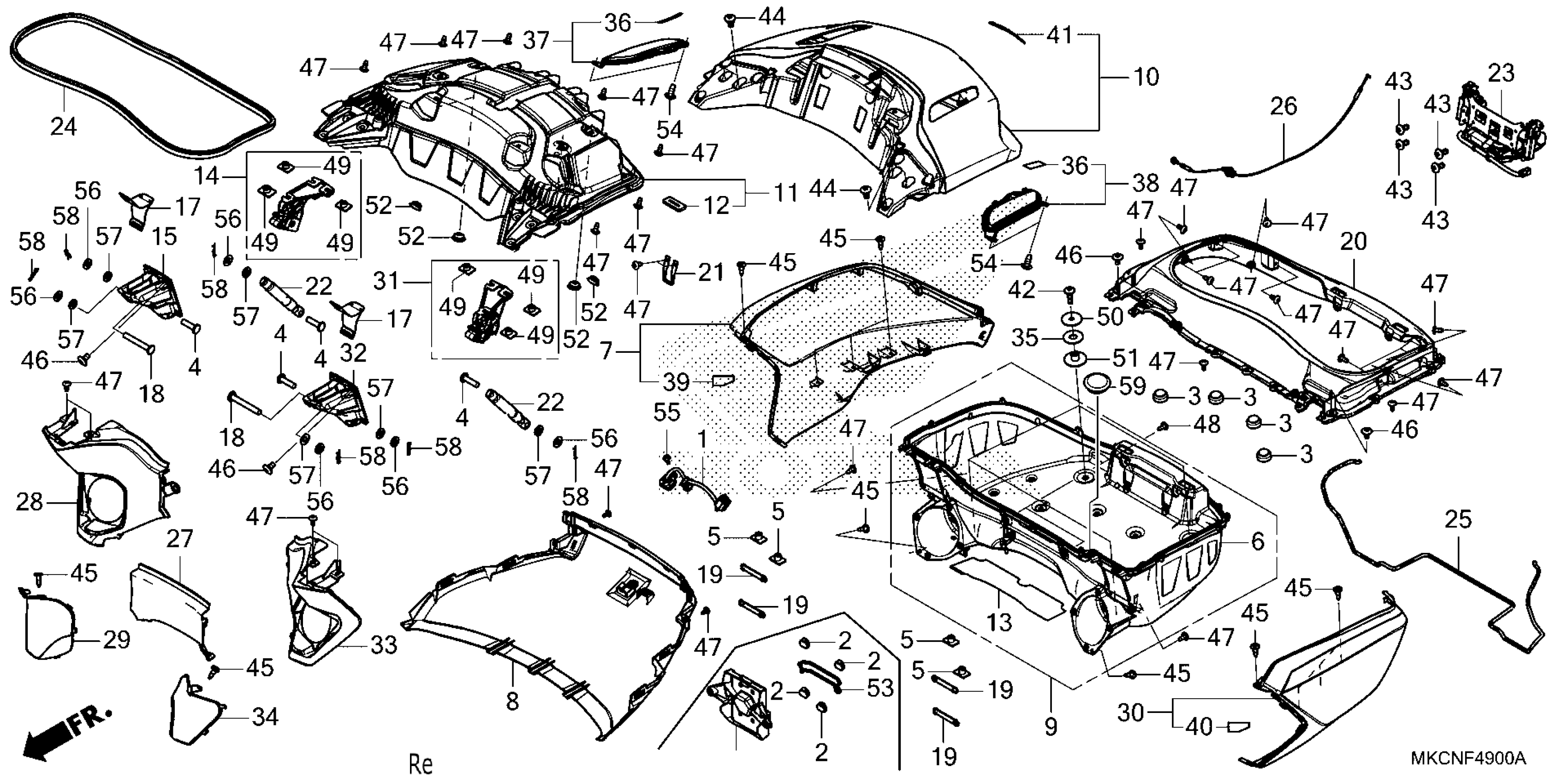

Honda GL18003AC (22) MOTORCYCLE, JPN, VIN# JH2SC790-NK400001 TRUNK BOX Diagram

#

Description
Price

1

SWITCH ASSY., TRUNK OPENER

35390-MKC-A01

$43.86

3

RUBBER, SEAT MOUNTING

77110-KA3-730

$4.70

4

PIN, SEAT HOOK

77156-GZ4-670

$4.80

5

NUT, RR. FENDER

80104-KJ2-000

$3.80

6

BOX, TRUNK (LOWER) (INNER)

81111-MKC-L00

$635.93

6

BOX LOWER, TRUNK

81111-MKC-L80

$631.28

7

COVER ASSY. (TYPE1)

81113-MKC-LD0ZA

$178.00

8

SET ILLUS (TYPE1)

81115-MKC-LD0ZA

$235.09

10

SET ILLUS *2TN0040*

81120-MKC-LD0ZA

$947.83

11

INNER LID, TRUNK

81126-MKC-L00

$115.87

12

MAT, LID (INNER)

81127-MKC-A00

$2.26

14

HINGE A, R. TRUNK

81131-MKC-A00

$47.54

15

HINGE B, R. TRUNK

81132-MKC-A00

$46.03

17

RUBBER, HINGE

81134-MKC-A00

$4.64

18

PIN A, TRUNK HINGE

81136-MKC-A00

$4.45

19

PLATE, TRUNK HINGE

81140-MKC-A00

$4.90

20

BOX, TRUNK (UPPER) (INNER)

81150-MKC-L00

$83.96

21

ROD, TRUNK STRIKER

81151-MKC-A00

$9.91

22

DAMPER, TRUNK LID

81155-MKC-L01

$54.57

23

CATCH, TRUNK

81160-MKC-A01

$452.97

24

RUBBER, TRUNK LID SEAL

81181-MKC-L00

$37.54

25

RUBBER, TRUNK BOX SEAL (INNER)

81182-MKC-L00

$29.51

26

CABLE, TRUNK EMERGENCY

81184-MKC-L01

$16.81

27

PANEL, FR. TRUNK (LOWER) *NH1* (BLACK)

81191-MKC-L00ZA

$23.12

28

COVER, R. FR. TRUNK *NH1* (BLACK)

81193-MKC-L00ZA

$36.29

29

COVER, R. RR. SPEAKER *NH1* (BLACK)

81194-MKC-L00ZA

$14.97

30

COVER ASSY. (TYPE1)

81213-MKC-LD0ZA

$178.00

31

HINGE A, L. TRUNK

81231-MKC-A00

$47.54

32

HINGE B, L. TRUNK

81232-MKC-A00

$46.03

33

COVER, L. FR. TRUNK *NH1* (BLACK)

81293-MKC-L00ZA

$36.29

34

COVER, L. RR. SPEAKER *NH1* (BLACK)

81294-MKC-L00ZA

$14.97

35

RUBBER, TRUNK MOUNTING

81356-MKC-A00

$2.00

36

SEAL, LID COVER

81552-MKC-L00

$7.00

37

COVER COMP (TYPE1)

81650-MKC-LD0ZA

$66.78

38

COVER COMP (TYPE1)

81655-MKC-LD0ZA

$66.78

39

TAPE, R. PROTECTION

81991-MKC-L00

$1.83

40

TAPE, L. PROTECTION

81992-MKC-L00

$1.83

41

EMBLEM, HONDA (100MM)

86102-MKC-L00

$25.01

42

BOLT, SPECIAL (6X22)

90085-MAJ-A20

$3.52

43

SCREW (5X12)

90112-MJK-N20

$2.04

44

SCREW, SPECIAL (6X14)

90114-MCJ-000

$2.29

45

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

46

SCREW, PAN (6X11)

90119-MEW-920

$1.86

47

SCREW, TAPPING (5X12)

90121-MJK-N20

$2.04

48

SCREW, TAPPING (5X12)

90121-MJK-N20

$2.04

49

NUT, SPECIAL (6X7)

90303-HA0-680

$3.57

50

WASHER, TRUNK SET

90506-MKC-A00

$2.19

51

COLLAR, RR. TRUNK

90508-MKC-A00

$6.29

52

PLUG, HOLE

90852-KPP-T00

$1.46

54

SCREW, TAPPING (4X10)

93903-24280

$1.23

55

SCREW, TAPPING (3X8)

93903-32180

$0.59

56

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

56

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

56

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

57

WASHER, SPRING (6MM)

94111-06800

$1.03

58

PIN, LOCK (6MM)

94251-06000

$0.94

59

GROMMET, DRAIN HOLE (25MM)

82871-671-000

$4.15
