Description

Price

1

CLAMP, ABS WIRE

38516-MJN-A11

$3.66

2

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.72

3

SENSOR, FR. WHEEL SPEED

38520-MKC-A01

$185.43

4

NUT, TPMS

39401-MKC-A01

$7.36

5

RUBBER, MOUNTING

39402-MKC-A01

$3.43

6

TRANSMITTER, TPMS

39410-MKC-A01

$207.23

7

VALVE ASSY., CLAMP IN

42755-MKC-A01

$19.69

8

O-RING

42758-MKA-D81

$1.52

9

AXLE, FR. WHEEL

44301-MKC-A00

$52.33

10

COLLAR, R. FR. WHEEL SIDE

44311-MKC-A00

$10.48

11

COLLAR, L. FR. WHEEL SIDE

44312-MKC-A00

$11.16

12

RING, FR. PULSER

44515-MKC-A00

$69.60

13

COLLAR, FR. AXLE DISTANCE

44620-MCA-000

$10.46

14

WHEEL SUB-ASSY., FR.

44650-MKC-A00

$975.33

15

TIRE (130/70R18) This part replaces 44711-MKC-A01.

44711-MKC-A05

$255.49

15

TIRE, FR. (130/70R18) (M/C 63H) (DUNLOP)

44711-MKC-A02

Unavailable

16

WEIGHT, BALANCE (10G)

44721-MGC-003

$4.41

16

WEIGHT, BALANCE (15G)

44722-MGC-003

$5.25

16

WEIGHT, BALANCE (20G)

44723-MGC-003

$5.25

17

DISK, R. FR. BRAKE

45120-MKC-A01

$582.13

18

DISK, L. FR. BRAKE

45220-MKC-A01

$582.13

19

BOLT, BRAKE DISK (6X17)

90106-MFL-D20

$2.48

20

BOLT, FLANGE (6X14)

90117-MJP-G60

$2.21

21

BOLT, FR. AXLE

90305-ML7-000

$10.50

22

BEARING, RADIAL BALL (6004) (X2) (LU)

91055-MCA-A61

$22.10

23

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98

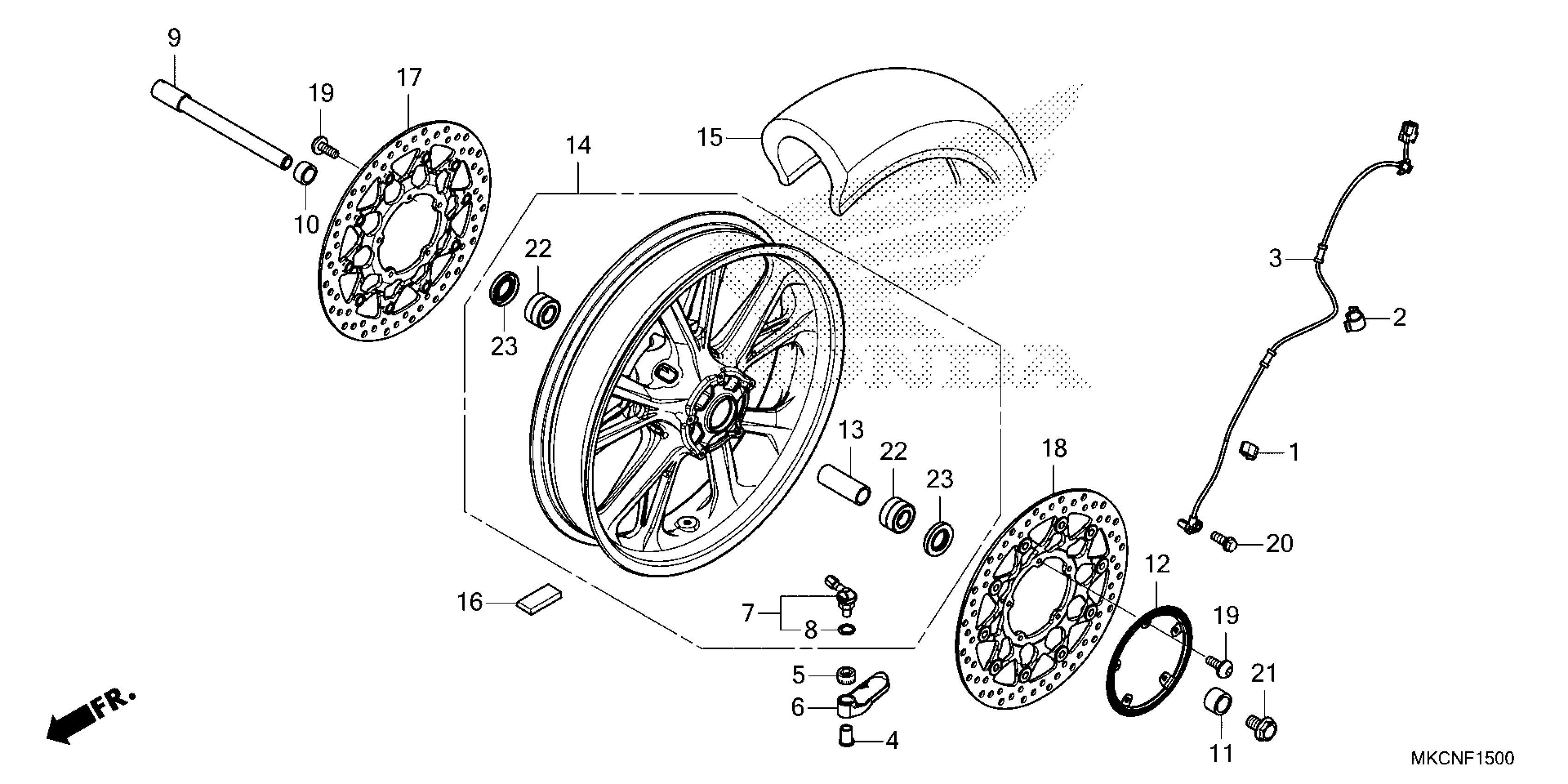

Honda GL18003AC (22) MOTORCYCLE, JPN, VIN# JH2SC790-NK400001 FRONT WHEEL Diagram
