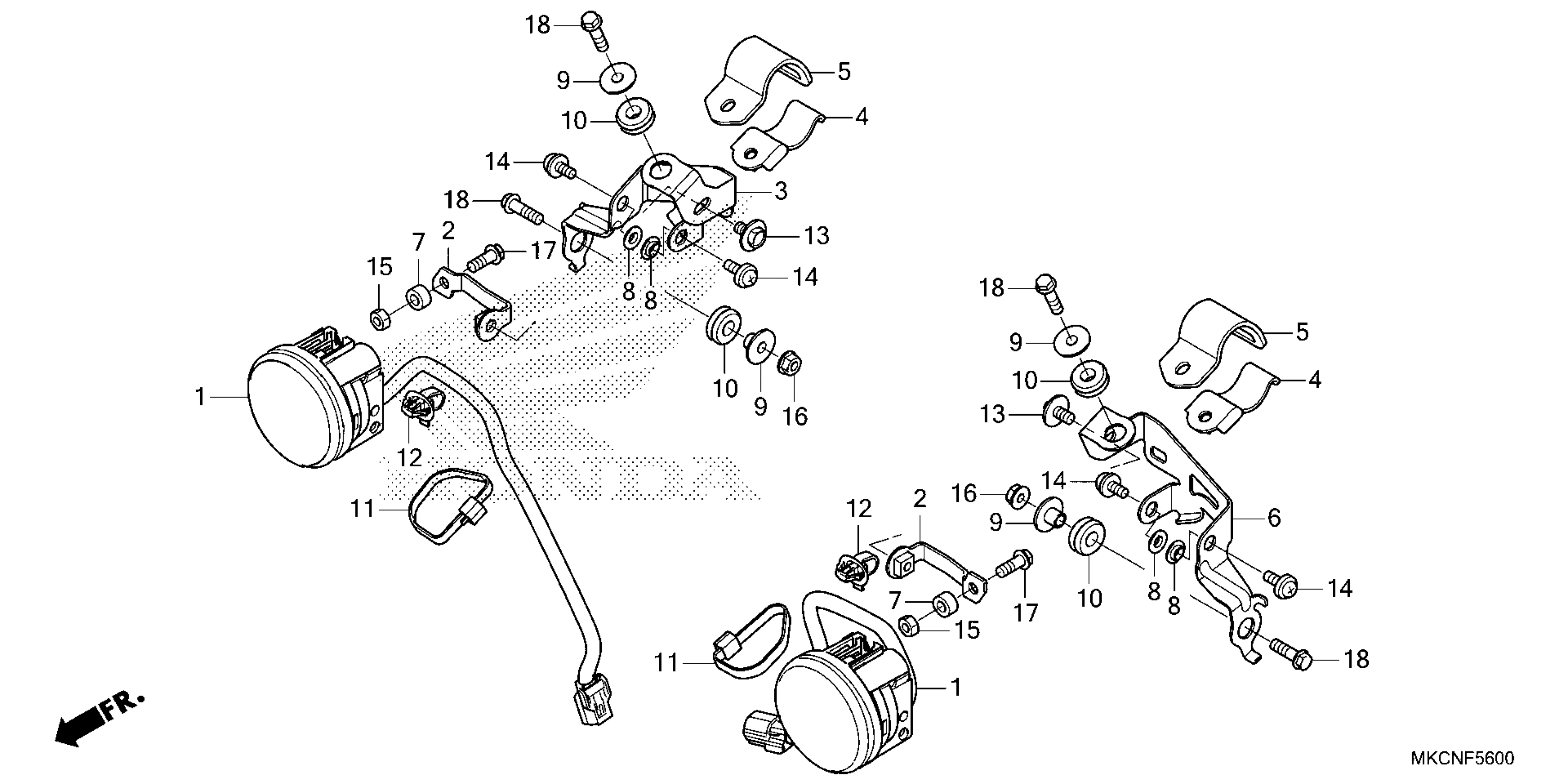

Honda GL18003AC (22) MOTORCYCLE, JPN, VIN# JH2SC790-NK400001 FOGLIGHT Diagram

FOGLIGHT ASSY., FR.

33200-MKC-A02

$399.67

ADJUST, FOG LAMP (NOT AVAILABLE)

33205-MKC-A00

$4.75

STAY, R. FOG LAMP (NOT AVAILABLE)

33206-MKC-A00

$14.98

BAND A, PIPE (D25.4) (NOT AVAILABLE)

33207-MKC-A00

$9.20

BAND B, PIPE (D25.4) (NOT AVAILABLE)

33208-MKC-A00

$16.38

STAY, L. FOG LAMP (NOT AVAILABLE)

33256-MKC-A00

$14.98

COLLAR (6X6.5)

50631-MGS-D30

$1.89

WASHER, SETTING

90413-369-690

$3.82

COLLAR A, AIR CLEANER HOUSING (NOT AVAILABLE)

90501-MC4-000

$3.67

GROMMET A, AIR CLEANER HOUSING

90505-MC4-000

$3.06

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

CLIP, HARNESS BAND (164.5MM) (DARK BLUE)

91542-SNA-003

$1.49

BOLT-WASHER (6X12)

93404-06012-07

$1.55

BOLT-WASHER (6X12) This part replaces 93404-06012-08.

93404-06012-07

$1.55

SCREW-WASHER (6X12)

93891-06012-00

$1.49

NUT, HEX. (6MM)

94001-06080-0S

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
