Description

Price

1

WATER PUMP ASSY.

19200-MKC-305

$455.24

2

GASKET, WATER PUMP BODY

19216-MKC-A01

$7.91

3

COVER, WATER PUMP

19220-MKC-A00

$140.50

4

GASKET, WATER PUMP COVER

19226-MKC-A00

$9.63

5

RUBBER, THERMOSTAT

19305-KV3-010

$5.80

6

CASE, THERMOSTAT

19310-MKC-305

$120.62

7

COVER, THERMOSTAT

19315-MKC-A00

$60.65

8

THERMOSTAT

19320-MKF-D41

$64.78

9

PIPE, R. WATER

19411-MKC-A00

$31.38

10

PIPE, L. WATER

19421-MKC-A00

$31.38

11

CLAMP, WATER HOSE (A)

19505-KS6-700

Unavailable

12

HOSE, R. HEAD

19505-MKC-A00

$6.93

13

CLAMP B, WATER HOSE

19506-KS6-700

$7.16

14

HOSE, L. HEAD

19506-MKC-A00

$8.34

15

HOSE, BYPASS (BOTTOM)

19507-MKC-A00

$7.37

16

SENSOR ASSY., WATER TEMPERATURE

37870-MGS-D31

$45.73

17

BOLT, FLANGE (6X16) (NSHF)

90017-GHB-630

$1.96

18

BOLT, FLANGE (6X22) (NSHF)

90017-GHB-660

$2.07

19

BOLT, FLANGE (6X28) (NSHF)

90017-GHB-680

$2.19

20

BOLT, FLANGE (6X45) (NSHF)

90017-GHB-720

$2.40

21

BOLT, FLANGE (6X23) (CT200)

90018-MKC-A00

$1.87

22

WASHER, SEALING (6MM)

90488-425-000

$2.10

23

SEAL, WATER PIPE (22.5MM)

91316-MKC-A01

$5.34

24

PIN A, DOWEL (8X10)

94301-08100

$2.62

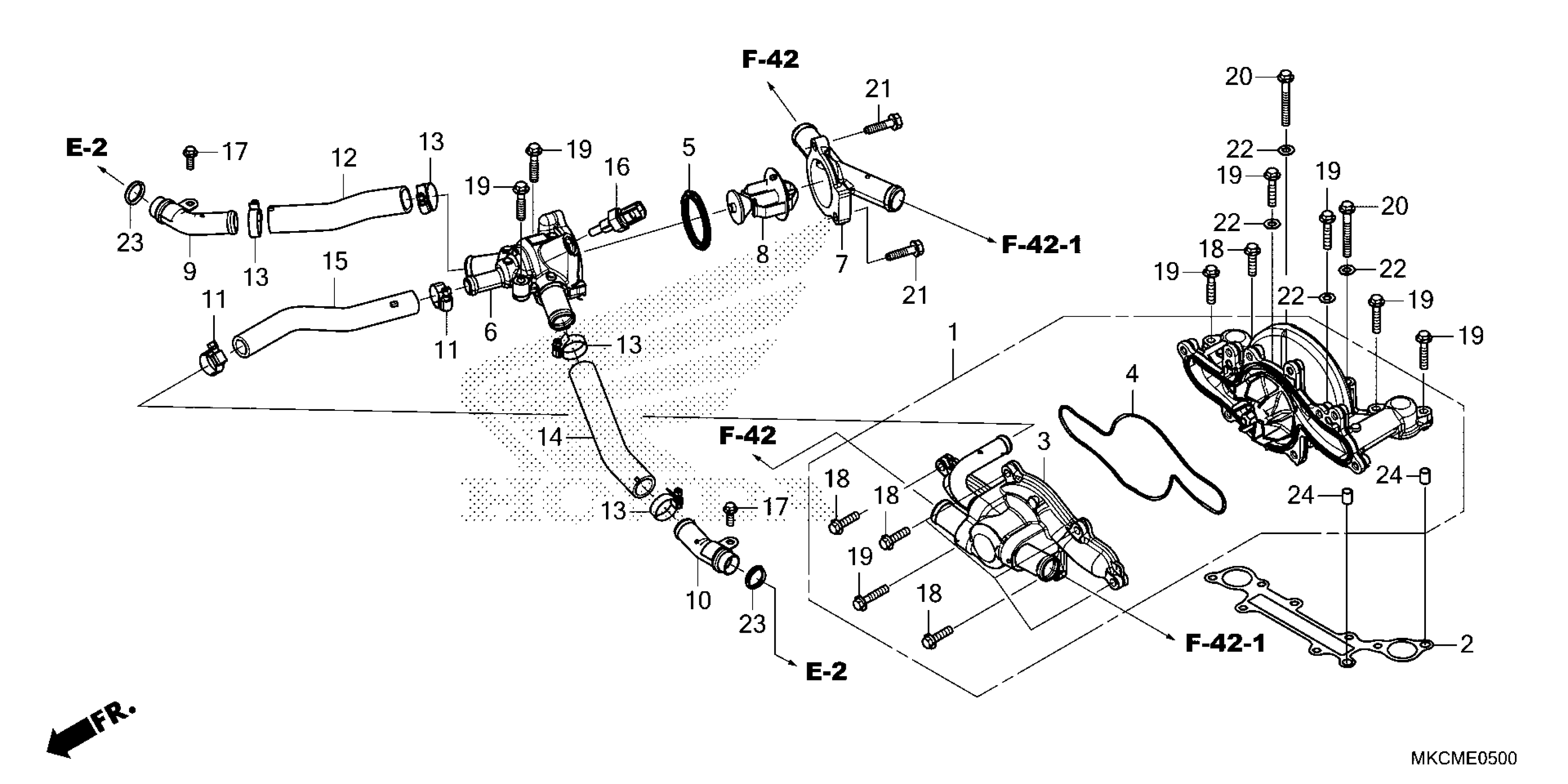

Honda GL18003AC (21) MOTORCYCLE, JPN, VIN# JH2SC790-MK300001 WATER PUMP Diagram
