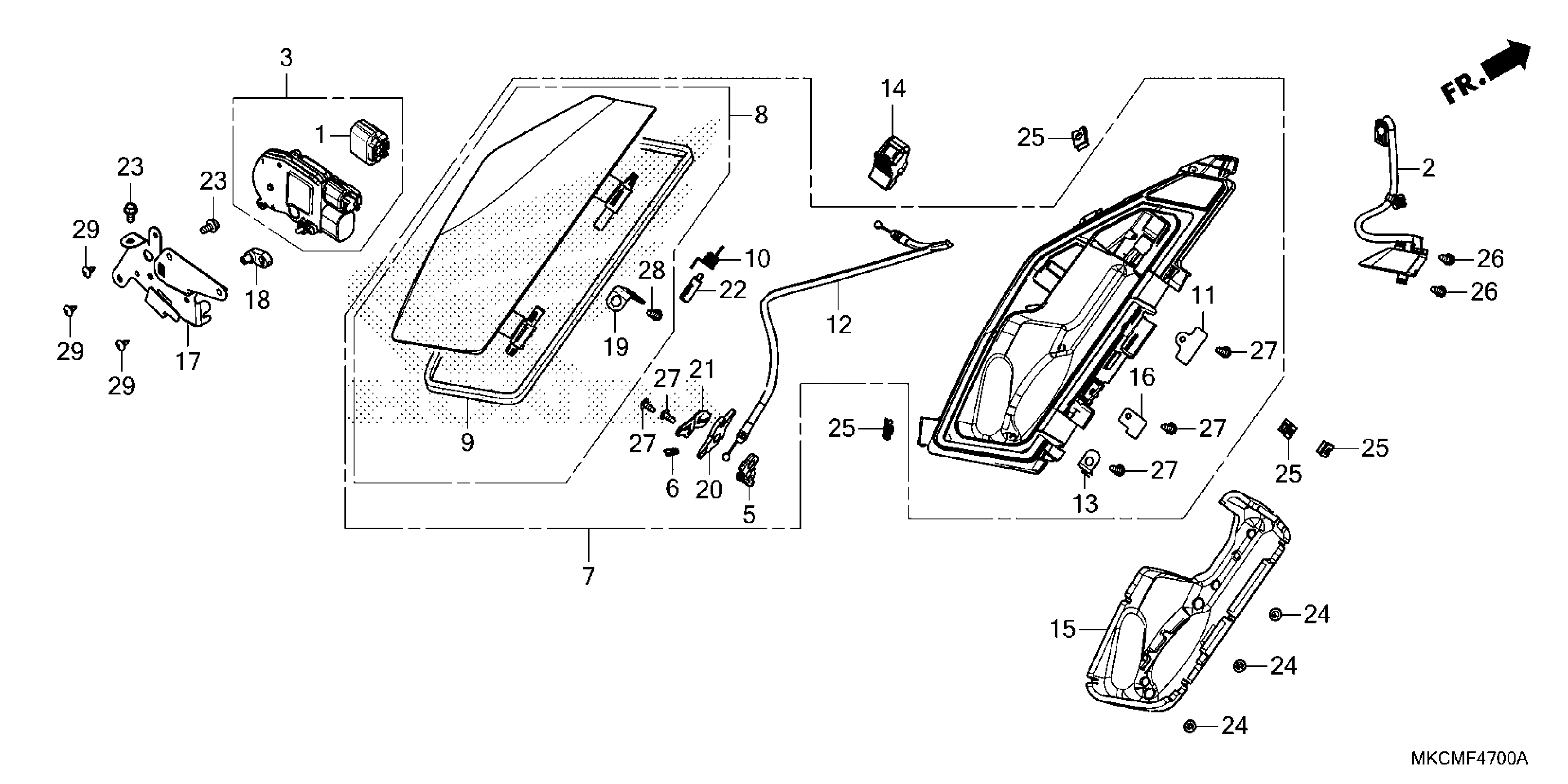

Honda GL18003AC (21) MOTORCYCLE, JPN, VIN# JH2SC790-MK300001 POCKET Diagram

#

Description
Price

1

DUMMY, CONNECTOR (WPC 3P 090 F)

32144-MKC-A00

$3.65

2

SWITCH ASSY., POCKET OPEN

35370-MKC-A01

$43.86

3

ACTUATOR ASSY. (HONDALOCK)

36520-MKC-305

$82.38

4

ACTUATOR ASSY. (HONDALOCK)

36520-MKC-A01

$82.38

5

CAM B, POCKET COVER LOCK

64429-MKC-A00

$7.90

6

SPRING, POCKET LOCK CAM

64436-MCA-000

$4.36

7

POCKET ASSY.

64610-MKC-A00

$84.41

8

LID ASSY., POCKET

64620-MKC-A00

$37.48

9

SEAL, POCKET

64622-MKC-A00

$5.61

10

SPRING, POCKET

64623-MKC-A00

$3.00

11

STAY, DAMPER

64632-MKC-A00

$3.36

12

CABLE, POCKET LID

64633-MKC-A01

$8.09

13

STAY, CABLE LOCK

64634-MKC-A00

$2.12

14

KNOB, FUEL LID OPENER

64635-MKC-A00

$10.70

15

CASE, SIDE POCKET (OUTER)

64636-MKC-A00

$83.84

16

PLATE, SIDE POCKET

64637-MKC-A00

$2.12

17

STAY, ACTUATOR

64641-MKC-A00

$17.49

18

JOINT, CABLE

77242-KSV-J00

$5.32

19

PLATE, POCKET LOCK

83128-MCA-S40

$3.14

20

CAM A, POCKET COVER LOCK

83132-MCA-S40

$5.87

21

STAY, CABLE LID

83174-MJN-A00

$3.07

22

DAMPER, CHARGE LID

83534-GGK-003

$3.65

23

BOLT, FLANGE (5X10)

90002-892-000

$1.29

24

NUT, PUSH (3MM)

90301-ST0-003

$2.87

25

NUT, CLIP (5MM)

90677-KAN-961

$3.79

26

SCREW, TAPPING (3X12)

93901-22320

$0.52

27

SCREW, TAPPING (4X8)

93903-24120

$0.83

28

SCREW, TAPPING (4X8)

93903-24180

$0.75

29

SCREW, TAPPING (4X12)

93903-24320

$0.83
