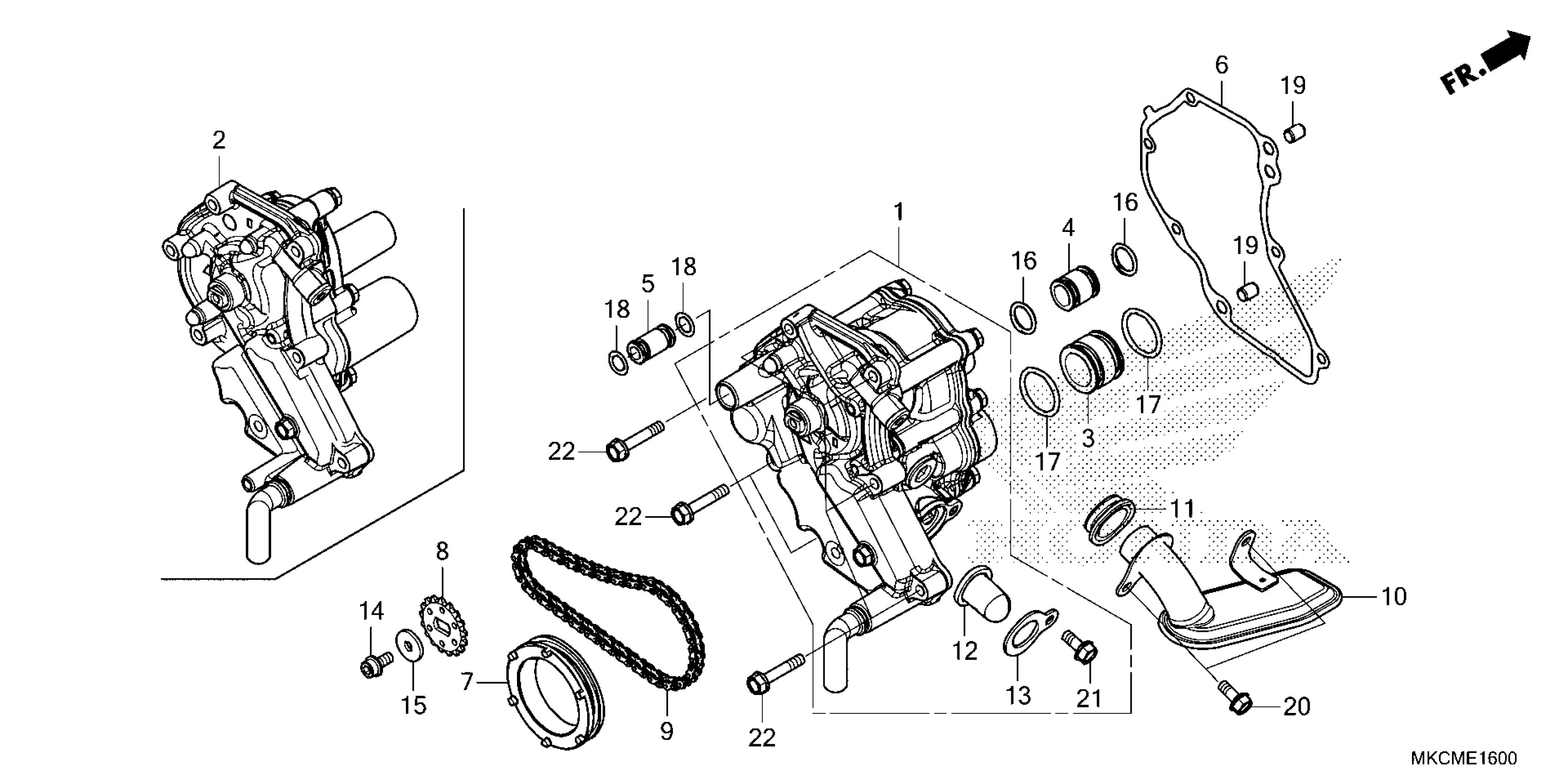

Honda GL18003AC (21) MOTORCYCLE, JPN, VIN# JH2SC790-MK300001 OIL PUMP Diagram

PUMP ASSY., OIL

15100-MKC-A20

$164.69

JOINT, FEED LINE (IN)

15106-MKC-A00

$11.39

JOINT, FEED LINE (OUT)

15107-MKC-A00

$8.67

SPROCKET, OIL PUMP DRIVE (31T)

15131-MKC-A01

$61.98

SPROCKET, OIL PUMP DRIVEN (17T)

15134-MKC-A00

$41.34

CHAIN, OIL PUMP (DID25H-54L) (54L) (DAIDO)

15135-MCA-003

$21.15

STRAINER, OIL

15150-MKC-A00

$47.79

GASKET, OIL STRAINER

15154-MM5-000

$6.60

BOLT, SOCKET (6X12)

90003-HA0-003

$2.61

WASHER (6X2.3)

90488-MB0-000

$4.37

O-RING (14.8X2.4)

91303-MKC-A00

$3.46

O-RING (25X3) This part replaces 91305-MN1-670.

91305-384-750

$2.92

O-RING (25X3)

91305-384-750

$2.92

PIN A, DOWEL (8X10)

94301-08100

$2.25

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X32) (Honda Code 2105856)

95701-06032-00

$1.89
