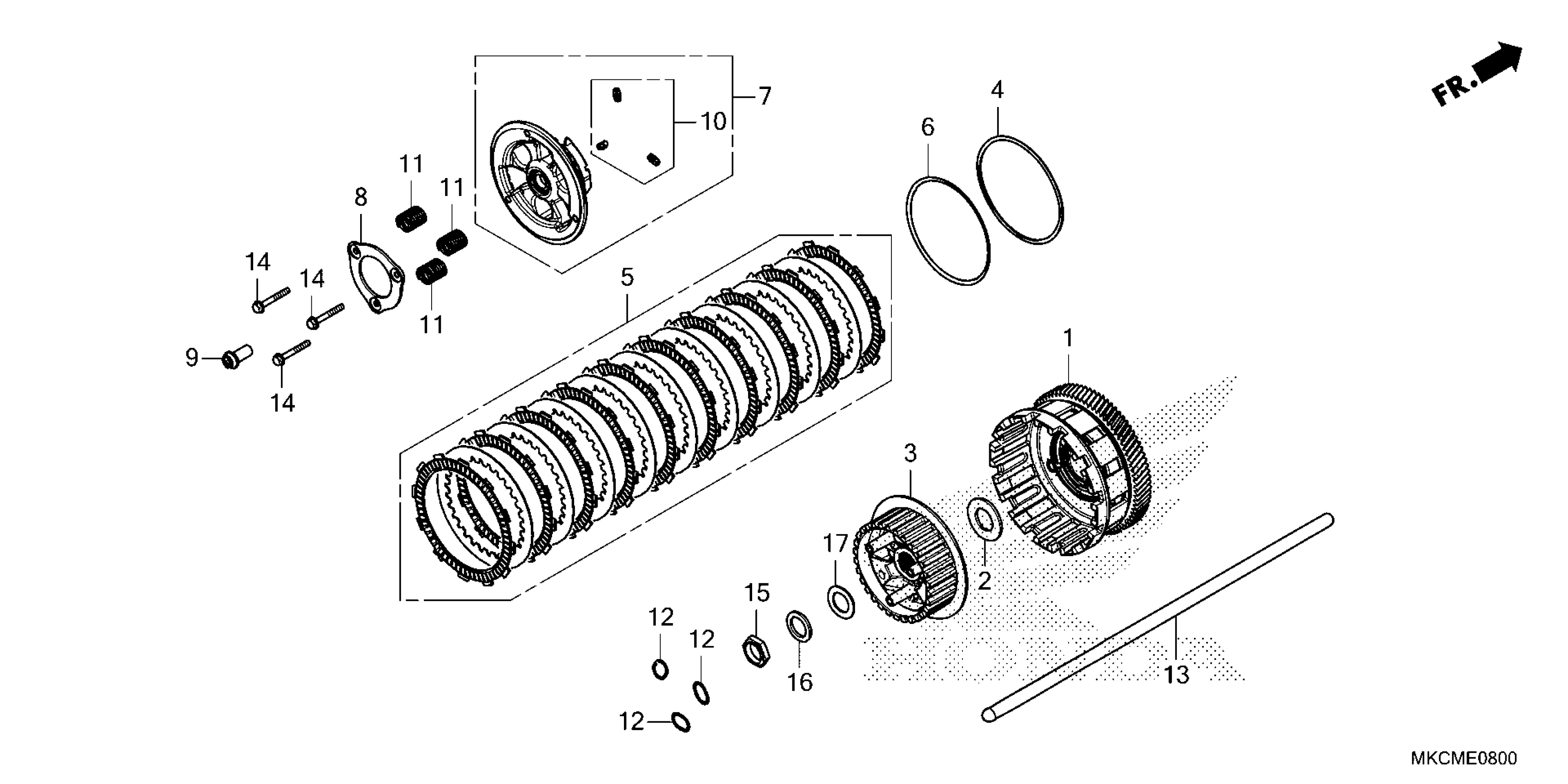

Honda GL18003AC (21) MOTORCYCLE, JPN, VIN# JH2SC790-MK300001 CLUTCH Diagram

CLUTCH OUTER (79T)

22100-MKC-A21

$445.82

COLLAR, DISTANCE

22117-MEJ-610

$9.36

CENTER, CLUTCH (30T)

22121-MKC-A21

$125.03

SEAT, JUDDER SPRING

22125-MAT-000

$12.10

DISK SET, CLUTCH

22210-MKC-A20

$229.61

SPRING, JUDDER

22325-MKC-A21

$43.11

PLATE SET, CLUTCH PRESSURE

22355-MKC-A20

$99.80

PLATE, SETTING

22361-MKC-A21

$25.11

PIECE, CLUTCH JOINT

22366-MKC-A20

$17.33

RUBBER SET, CLUTCH

22375-MKC-A20

$10.80

SPRING, CLUTCH

22401-MKC-A21

$7.51

SEAT, CLUTCH SPRING

22425-MKF-D41

$12.74

ROD, CLUTCH LIFTER

22851-MKC-A20

$29.87

BOLT, FLANGE (6X45)

90050-MKF-D41

$3.06

NUT, LOCK (25MM)

90231-MCH-000

$6.78

WASHER, SPRING (25MM) (CHUO HATSUJO)

90432-MM8-003

$7.70

WASHER, THRUST (25X40X2)

90451-VM0-000

$5.72
