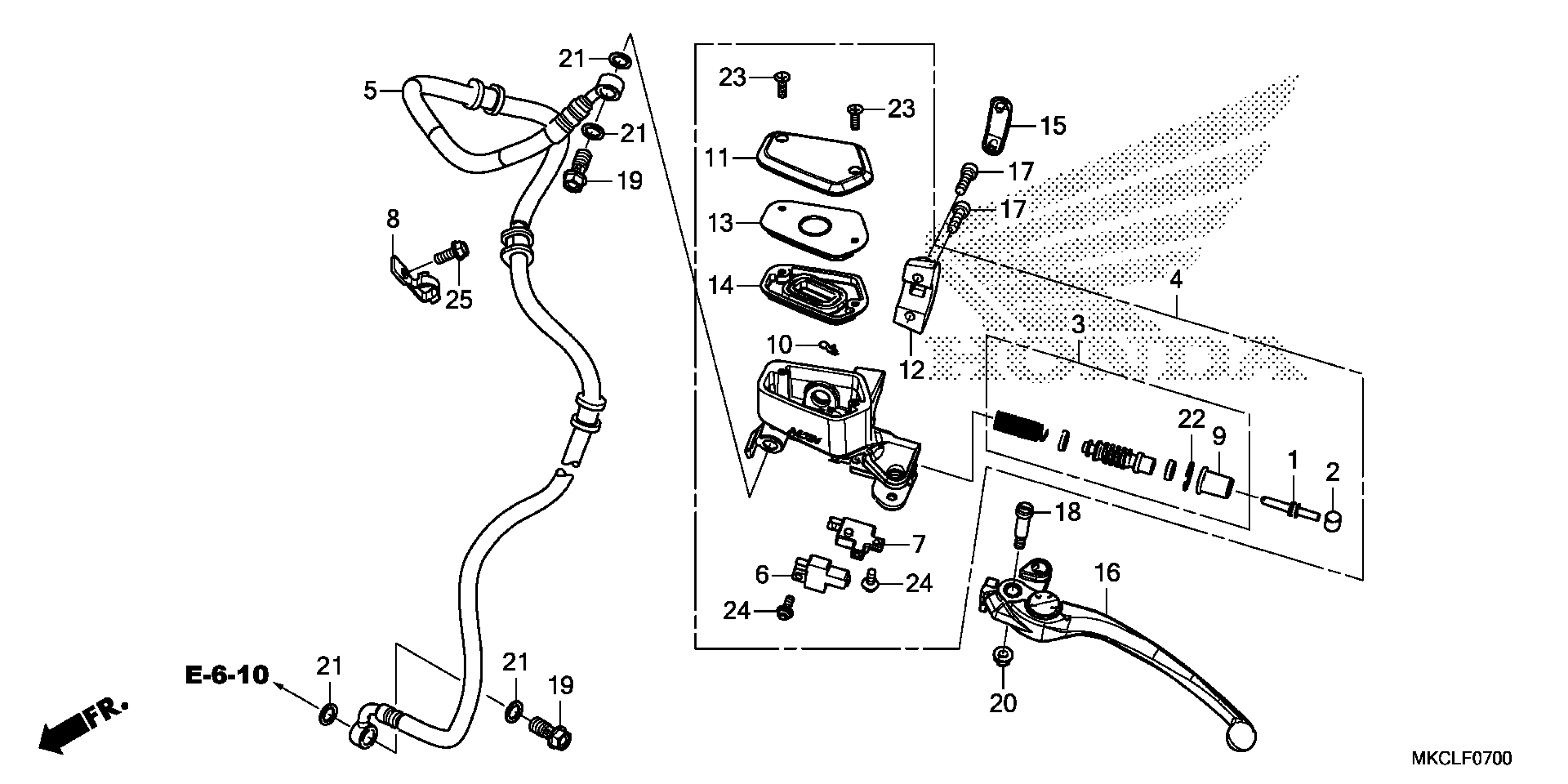

Honda GL18003AC (20) MOTORCYCLE, JPN, VIN# JH2SC790-LK200001 CLUTCH MASTER CYLINDER Diagram

ROD, PUSH

22884-MAT-E01

$19.35

BUSH

22885-MB0-006

$12.95

PISTON SET, MASTER CYLINDER

22886-MAT-E01

$57.04

MASTER CYLINDER SUB-ASSY., CLUTCH

22890-MKC-A21

$232.59

HOSE, CLUTCH

22900-MKC-A11

$76.84

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

SWITCH ASSY., CLUTCH CRUISE (TOYO)

35335-MG9-951

$23.58

CLAMP A, FR. BRAKE HOSE

45158-MFL-D00

$3.64

BOOT

45504-MAT-E01

$10.65

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER

45513-MGE-006

$35.02

HOLDER, MASTER CYLINDER

45517-MAM-A62

$14.27

PLATE, DIAPHRAGM

45518-MGE-006

$8.05

DIAPHRAGM

45520-MGE-006

$15.15

CAP, BRAKE MASTER CYLINDER HOLDER

45553-MAM-A60

$3.12

LEVER ASSY., L. HANDLE This part replaces 53180-MKC-A21.

53180-MKC-A22

$66.56

BOLT, SOCKET (6X22)

90101-MCL-000

$1.49

BOLT, HANDLE LEVER

90114-MG9-951

$7.88

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90202-ZV0-000

$2.91

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

BOLT, FLANGE (6X16)

95701-06016-07

$1.55
