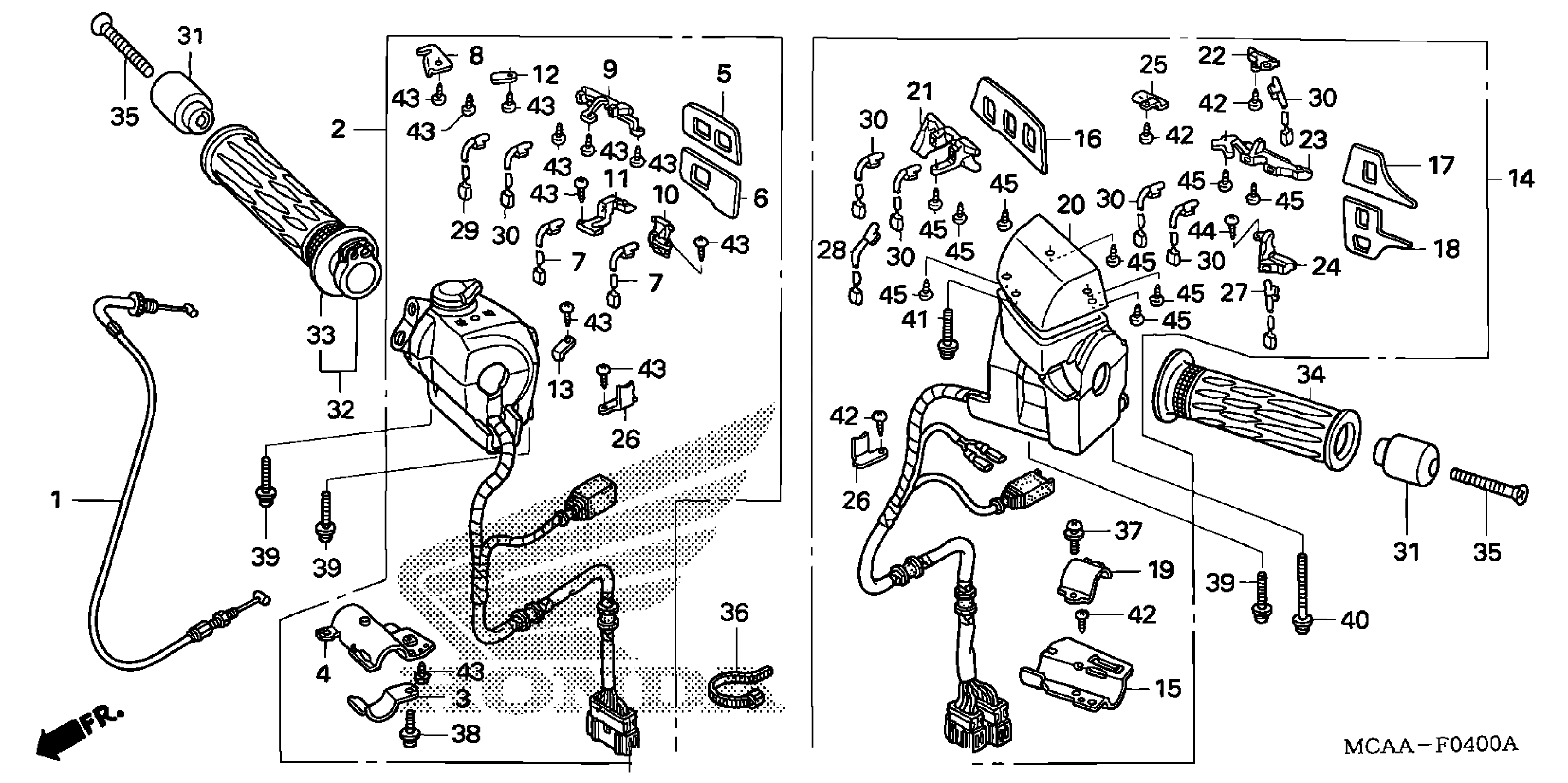

Honda GL18003A (07) GOLD WING, USA, VIN# 1HFSC47F-7A600001 TO 1HFSC47F-7A699999 HANDLE SWITCH (1) Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MCA-A60

$19.59

2

SWITCH ASSY., STARTER & STOP & CRUISE This part replaces 35130-MCA-A61.

35130-MCA-S41

$338.87

2

SWITCH ASSY., STARTER & STOP & CRUISE This part replaces 35130-MCA-H01.

35130-MCA-S41

$338.87

2

SWITCH ASSY., STARTER & STOP & CRUISE

35130-MCA-S41

$338.87

3

PLATE A, STOP SWITCH SETTING

35132-MCA-003

$5.28

4

PLATE B, STOP SWITCH SETTING

35133-MCA-003

$5.54

5

PLATE, ORNAMENT (A)

35134-MCA-A20

$2.92

6

PLATE, ORNAMENT (B)

35135-MCA-A20

$2.92

7

BULB

35139-MCA-A20

$10.15

8

CLAMP, WIRE (A)

35141-MCA-A20

$1.49

9

LENS, R. (UPPER)

35142-MCA-A20

$15.87

10

LENS, R. (LOWER) (A)

35143-MCA-A20

$15.87

11

LENS, R. (LOWER) (B)

35144-MCA-A20

$15.87

12

CLAMP, WIRE (B)

35145-MCA-A20

$1.49

13

CLAMP, WIRE (D)

35146-MCA-A20

$1.49

14

SWITCH ASSY., TURN SIGNAL & AUDIO This part replaces 35200-MCA-A61.

35200-MCA-H01

$524.77

14

SWITCH ASSY., TURN SIGNAL & AUDIO

35200-MCA-H01

$524.77

15

PLATE SET A, TURN SIGNAL

35202-MCA-003

$5.69

16

PLATE, ORNAMENT (A)

35203-MCA-A20

$4.78

17

PLATE, ORNAMENT (C)

35205-MCA-A20

$3.56

18

PLATE, ORNAMENT (D)

35206-MCA-A20

$5.00

19

PLATE SET B, TURN SIGNAL

35207-MCA-003

$3.13

20

CASE, AUDIO (UPPER)

35211-MCA-A20

$13.49

21

LENS, AUDIO

35212-MCA-A20

$23.99

22

LENS, TURN SIGNAL (A)

35213-MCA-A20

$15.87

23

LENS, TURN SIGNAL (B)

35214-MCA-A20

$14.97

24

LENS (LOWER)

35215-MCA-A20

$14.97

25

CLAMP, WIRE (UPPER)

35217-MCA-A20

$1.49

26

CLAMP, WIRE

35218-MCA-A20

$1.49

27

BULB (T3) (A)

35219-MCA-A20

$10.77

28

BULB (T3) (B)

35220-MCA-A20

$10.77

29

BULB (T3) (C) (CORD LENGTH:100MM)

39206-MCA-013

$10.75

30

BULB (T3) (B) (CORD LENGTH:75MM)

39208-MCA-003

$10.75

31

WEIGHT, HANDLEBAR

53105-MK4-620

$15.03

32

GRIP, R.

53145-MCA-000

$34.40

33

GRIP, R. HANDLE

53165-MCA-000

$16.57

34

GRIP, L. HANDLE

53166-MCA-000

$15.67

35

SCREW, OVAL (6X65)

90191-KBG-000

$4.94

36

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$3.12

37

SCREW-WASHER (5X10)

93892-05010-08

$1.49

38

SCREW-WASHER (5X20)

93892-05020-08

$1.49

39

SCREW-WASHER (5X25)

93892-05025-07

$1.49

40

SCREW-WASHER (5X45)

93892-05045-07

$1.49

41

SCREW-WASHER (5X32) (NOT AVAILABLE)

93893-05032-08

Unavailable

42

SCREW, TAPPING (3X8)

93901-32120

$1.49

43

SCREW, TAPPING (3X10)

93901-32220

$1.49

44

SCREW, TAPPING (3X12)

93901-32320

$1.49

45

SCREW, TAPPING (3X10)

93901-32220

$1.49
