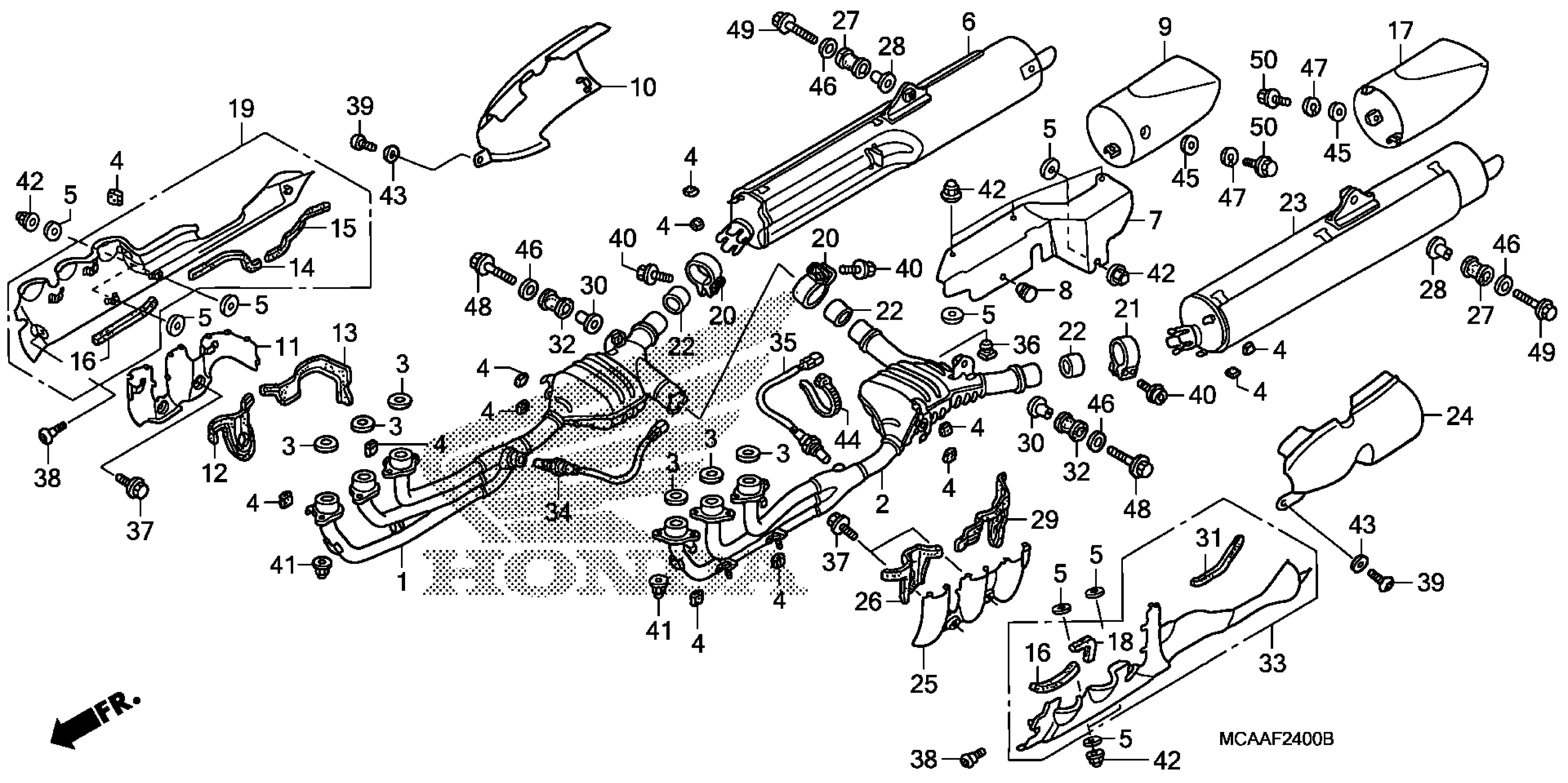

Honda GL18003A (06) GOLD WING, USA, VIN# 1HFSC47F-6A500001 TO 1HFSC47F-6A599999 MUFFLER (1) Diagram

#

Description
Price

1

PIPE, R. EX. This part replaces 18150-MCA-A60.

18150-MCA-A61

Unavailable

2

PIPE, L. EX. This part replaces 18250-MCA-A60.

18250-MCA-A61

Unavailable

3

GASKET, EX. PIPE

18291-MN5-650

$3.61

4

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$1.90

5

GASKET, PROTECTOR

18293-MCA-780

$4.63

6

MUFFLER, R. (COO) This part replaces 18305-MCA-A20.

18305-MCA-305

$800.76

7

PLATE, MUFFLER

18313-MCA-A20

$66.68

8

GROMMET, MUFFLER COVER

18314-MCA-A20

$1.29

9

TAILPIECE, R.

18316-MCA-A60

$229.65

10

PROTECTOR, R. RR. EX. PIPE

18317-MCA-A20

$150.89

11

PROTECTOR, R. FR. EX. PIPE (B)

18318-MCA-000

$107.15

12

RUBBER A, R. HEAT GUARD

18321-MCA-000

$18.79

13

RUBBER B, R. HEAT GUARD

18323-MCA-000

$17.29

14

RUBBER C (R. SIDE)

18329-MCA-A20

$3.06

15

RUBBER D

18332-MCA-A20

$5.71

16

PROTECTOR, HEAT

18333-MCA-000

$4.34

17

TAILPIECE, L. (COO) This part replaces 18336-MCA-A60.

18336-MCA-305

$229.65

18

PROTECTOR, HEAT SUB

18338-MCA-000

$3.57

19

PROTECTOR ASSY., R. EX. *NH168M* (VERNIER GRAY METALLIC)

18355-MCA-A20ZA

$247.71

20

BAND, R. MUFFLER

18376-MT3-000

$28.26

21

BAND, L. MUFFLER

18377-MT3-000

$28.26

22

GASKET B, MUFFLER

18392-MAM-000

$16.63

23

MUFFLER, L. (COO) This part replaces 18405-MCA-003.

18405-MCA-305

$800.76

24

PROTECTOR, L. RR. EX. PIPE

18417-MCA-A20

$161.09

25

PROTECTOR, L. FR. EX. PIPE (B)

18418-MCA-000

$107.15

26

RUBBER A, L. HEAT GUARD

18421-MCA-000

$18.79

27

RUBBER, MUFFLER MOUNTING

18421-MN5-000

$4.88

28

COLLAR, MUFFLER MOUNTING

18422-MN5-000

$8.37

29

RUBBER B, L. HEAT GUARD

18423-MCA-000

$25.65

30

COLLAR, CHAMBER MOUNTING

18424-MN5-000

$7.87

31

RUBBER E

18429-MCA-A20

$5.71

32

RUBBER, EX. PIPE

18441-MCA-A20

$6.07

33

PROTECTOR ASSY., L. EX. *NH168M* (VERNIER GRAY METALLIC)

18455-MCA-A20ZA

$247.71

34

SENSOR, OXYGEN (#1-3-5)

36531-MCA-A61

Unavailable

35

SENSOR, OXYGEN

36531-MBT-D21

Unavailable

36

RUBBER, STAND STOPPER

50524-MG9-000

$6.44

37

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$2.95

38

BOLT, FLANGE (6X10)

90011-HN0-A00

$1.18

39

BOLT, SPECIAL (6X12)

90112-MCA-000

$2.24

40

BOLT, FLANGE SOCKET (8X35)

90130-MCA-000

$2.80

41

NUT, SPECIAL (6MM)

90304-HB3-771

$5.80

42

NUT, CAP (6MM)

90308-MT8-000

$2.50

43

WASHER (6.5X18)

90545-323-700

$1.84

44

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.97

45

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

45

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

45

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

46

WASHER, PLAIN (8MM)

94103-08000

$0.60

47

WASHER, SPRING (6MM)

94111-06000

$0.87

48

BOLT, FLANGE (8X45)

95701-08045-00

$1.35

49

BOLT, FLANGE (8X55) (Honda Code 2829570)

95701-08055-02

$2.21

50

BOLT, FLANGE (6X12)

96001-06012-00

$1.66
