Description

Price

1

HOLDER, REVERS DRIVE GEAR

28150-MKC-A20

$73.06

2

GEAR, REVERSE IDLE (46T)

28162-MN5-000

$122.19

3

SHIFTER, REVERSE

28165-MN5-000

$122.16

4

GEAR, REVERSE SHIFT (18T)

28171-MN5-000

$81.23

5

SHAFT, REVERSE SHIFTER

28211-MKC-A20

$50.78

6

PLATE, LOST MOTION

28215-MCA-000

$4.36

7

COLLAR, LOST MOTION SPRING

28218-MCA-000

$20.97

8

COLLAR, REVERSE LEVER SPRING

28219-MKC-A20

$22.74

9

BUSH, REVERSE SPRING

28221-MN5-000

$5.14

10

SPRING, REVERSE LEVER

28224-MKC-A20

$4.81

11

SPRING, LOST MOTION

28226-MCA-000

$7.97

12

DRUM A

28241-MCA-A00

$31.77

13

ARM, SHIFT DRUM LOCK

28250-MKC-A20

$112.51

14

O-RING (11.8X2.4)

51996-SA5-800

$1.84

15

BOLT, FLANGE (6X20)

90014-MN5-000

$4.94

16

WASHER B, THRUST (30X1.7)

90409-ML4-610

$4.17

17

WASHER (6MM)

90485-VM0-000

$2.80

18

WASHER (12.2X23X1.6)

90492-MN5-000

$4.17

19

ROLLER (5X25)

90702-MN5-000

$2.64

20

BEARING, NEEDLE (12MM) (THOMPSON)

91001-147-006

$12.14

21

BEARING, NEEDLE (12X16X10)

91024-GJ5-003

$16.99

22

BEARING, NEEDLE (20X24X17)

91051-727-000

$25.26

23

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.04

24

CIRCLIP (OUTER) (20MM)

94510-20000

$1.20

25

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

26

BOLT, FLANGE (6X32) (Honda Code 2105856)

95701-06032-00

$1.71

27

BOLT, FLANGE (6X28)

95801-06028-00

$1.65

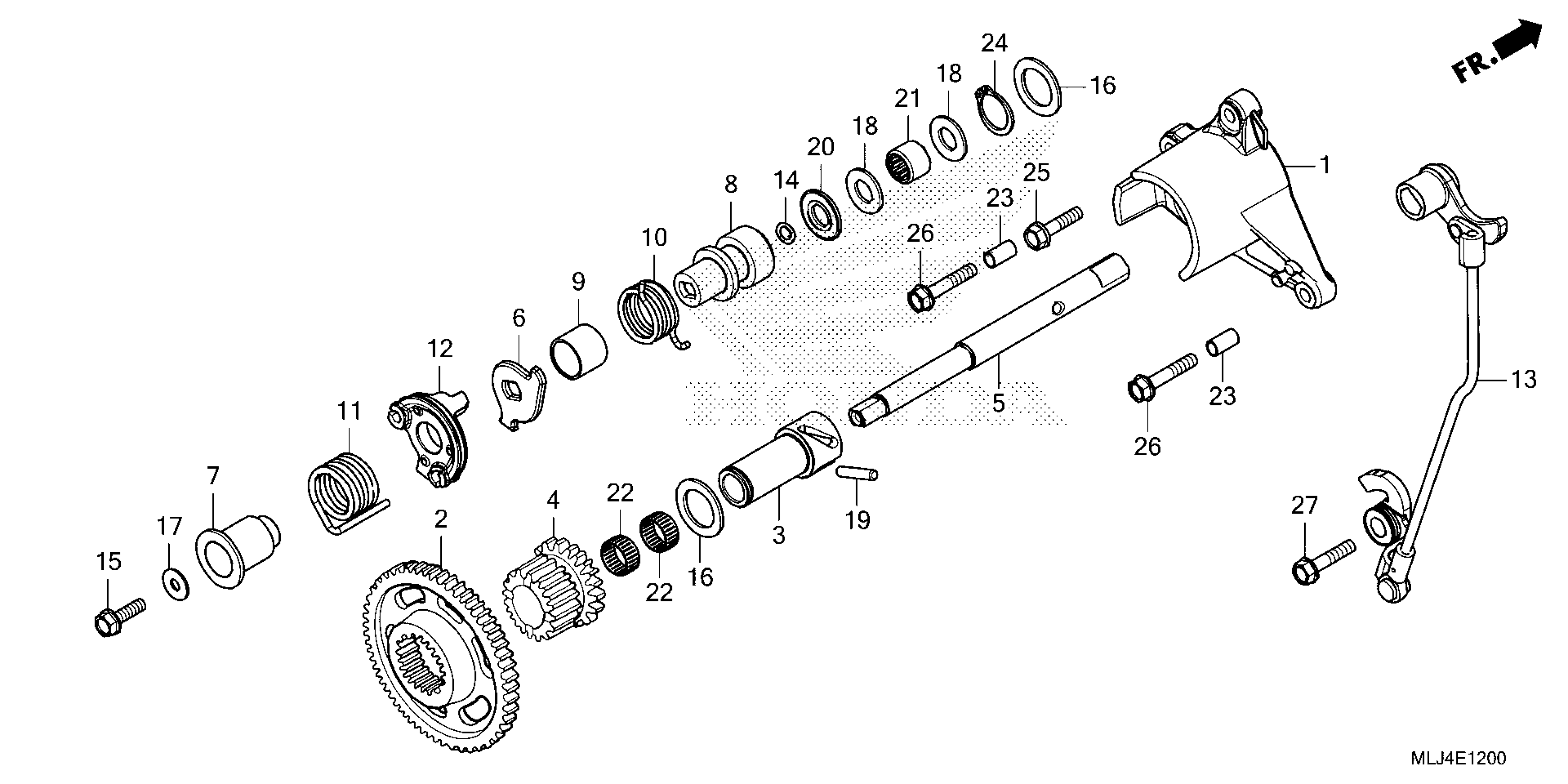

Honda GL18002AC (23) MOTORCYCLE, JPN, VIN# JH2SC790-PK500001 REVERSE GEAR Diagram
