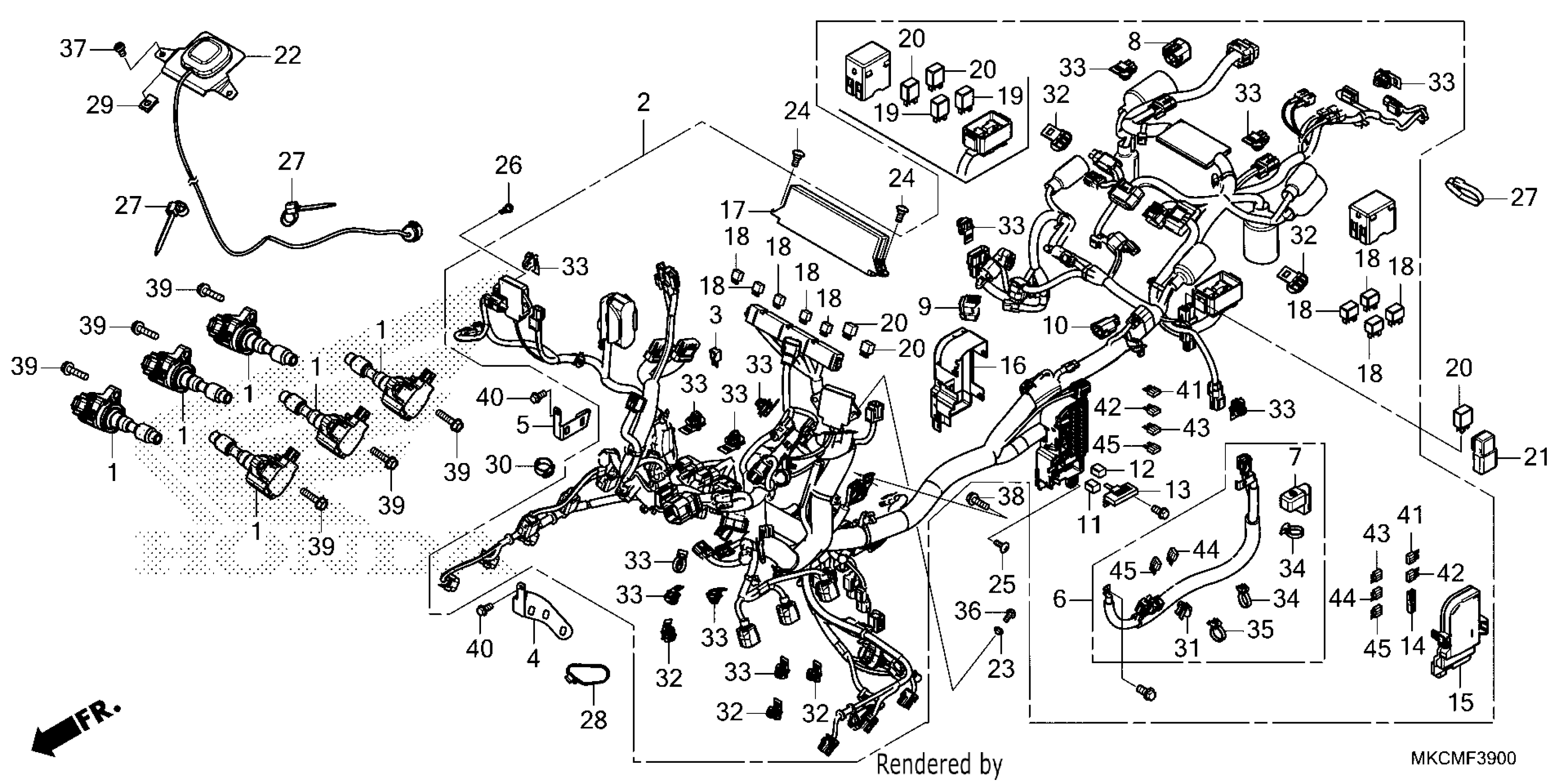

Honda GL18002AC (21) MOTORCYCLE, JPN, VIN# JH2SC790-MK300001 WIRE HARNESS Diagram

#

Description
Price

1

COIL ASSY., PLUG TOP

30510-MKC-A01

$112.40

2

WIRE HARNESS

32100-MKC-L10

$2,683.79

3

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$14.77

4

STAY, CONNECTOR B

32153-MKC-A00

$10.15

5

STAY, CONNECTOR C

32158-MKC-A00

$6.75

6

CABLE, STARTER BATTERY

32401-MKC-A20

$98.63

7

COVER, BATTERY TERMINAL

32412-MCA-000

$2.07

8

CAP, DUMMY (WPC 4P 090 M) (NATURAL)

32605-GEV-761

$7.69

9

CAP, DUMMY (WPC 4P 090 M) (RED)

32606-K44-V01

$6.56

11

FUSE, BLOCK (60A) (LOW-PROFILE)

38211-MCA-A61

$2.06

12

FUSE, BLOCK (40A)

38211-SNA-A21

$4.12

13

FUSE A, MULTI BLOCK (120A/40A)

38231-SFE-J01

$20.31

14

PULLER, MINI FUSE (SUMITOMO)

38235-S04-003

$0.94

15

COVER SET (UPPER) (WL)

38251-MKC-A20

$19.06

16

COVER (LOWER)

38256-MCA-A61

$6.35

17

COVER (UPPER)

38282-MKC-A01

$17.68

18

RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003.

38501-MKP-DN1

$4.45

19

RELAY, POWER (MICRO ISO 5P)

38502-MCS-G01

$9.52

20

RELAY, POWER (MICRO ISO 4P)

38503-MCA-A61

$13.40

21

SUSPENSION, POWER RELAY

38506-MCS-G00

$5.68

22

ANTENNA ASSY., SXM

39125-MKC-L01

$187.25

23

COLLAR (6X5.5)

90007-MA3-770

$1.88

24

SCREW, TAPPING (5X16)

93903-25380

$0.90

25

SCREW, TRUSS (5X14)

90109-KBV-000

$1.81

26

SCREW, SPLASH GUARD

90300-GB6-920

$2.06

27

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.97

28

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.56

29

NUT, CLIP (5MM)

90677-KAN-961

$3.89

30

CLIP, WIRE HARNESS

90683-KJ2-003

$3.62

31

CLIP, CONNECTOR (NATURAL)

91533-S04-003

$3.60

32

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$5.85

33

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

34

CLIP, HARNESS BAND (157.7MM) (BLACK)

91540-S7S-003

$5.37

35

CLIP, HARNESS BAND (145MM) (BLACK)

91541-S0A-003

Unavailable

36

SCREW, PAN (4X14)

93500-04014-0A

$0.82

37

SCREW, PAN (5X10)

93500-05010-0A

Unavailable

38

BOLT, FLANGE (6X20)

95701-06020-08

$0.40

39

BOLT, FLANGE (6X25) BOLT, FLANGE (6X16)

95701-06025-08

$1.79

40

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.79

41

FUSE, MINI (5A) (Honda Code 5026521)

98200-40500

$1.12

42

FUSE, MINI (10A)

98200-41000

$1.22

43

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.12

44

FUSE, MINI (20A)

98200-42000

$1.12

45

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.62
