Description

Price

1

ARM, R. STEP

50612-MKC-A00

$18.50

2

BRACKET, R. MAIN STEP NHA86M (MAT BALLISTIC BLACK)

50613-MKC-A10ZB

$46.16

3

BRACKET, L. MAIN STEP NHA86M (MAT BALLISTIC BLACK)

50614-MKC-A10ZB

$46.16

4

SPRING, R. STEP RETURN

50617-MM5-000

$4.58

5

PLATE, STEP SETTING

50619-MKC-A00

$7.75

6

PIN, STEP BAR

50639-MFL-D20

$2.80

7

ARM, L. STEP

50642-MKC-A00

$18.50

8

SPRING, L. STEP RETURN

50644-MM5-000

$4.58

9

RUBBER, STEP

50661-MKC-A00

$13.53

10

HOLDER, R. PILLION STEP NHA86M (MAT BALLISTIC BLACK)

50715-MKC-A00ZC

$32.87

11

ARM, R. PILLION STEP NHA86M (MAT BALLISTIC BLACK)

50716-MKC-A00ZC

$85.19

12

PLATE, PILLION STEP

50717-MKC-A00

$25.25

13

RUBBER, R. PILLION STEP

50718-MKC-A00

$16.18

14

PLATE, PILLION STEP CLICK

50720-MKC-A00

$4.21

15

PIN, PILLION STEP

50721-MKC-A00

$4.62

16

SPRING, PILLION STEP ADJUST CLICK

50746-MT8-770

$1.97

17

HOLDER, L. PILLION STEP NHA86M (MAT BALLISTIC BLACK)

50815-MKC-A00ZC

$32.87

18

ARM, L. PILLION STEP NHA86M (MAT BALLISTIC BLACK)

50816-MKC-A00ZC

$88.15

19

RUBBER, L. PILLION STEP

50818-MKC-A00

$16.18

20

BOLT, MAIN STEP RUBBER SETTING

90115-MT3-000

$2.50

21

BOLT, SOCKET (8X19)

90158-MKC-A10

$2.46

22

BOLT, CAP (6X12)

92501-06012-0A

$2.22

23

BOLT, FLANGE (8X62)

93500-05008-0A

$0.81

24

WASHER, PLAIN (8MM)

94101-08000

$0.76

25

WASHER, PLAIN (5MM)

94103-05800

$0.91

26

PIN, COTTER (2.0X15)

94201-20150

$0.96

27

BALL, STEEL (#8) (1/4)

96211-08000

$1.15

28

BOLT, FLANGE (8X32)

96400-08032-00

$2.71

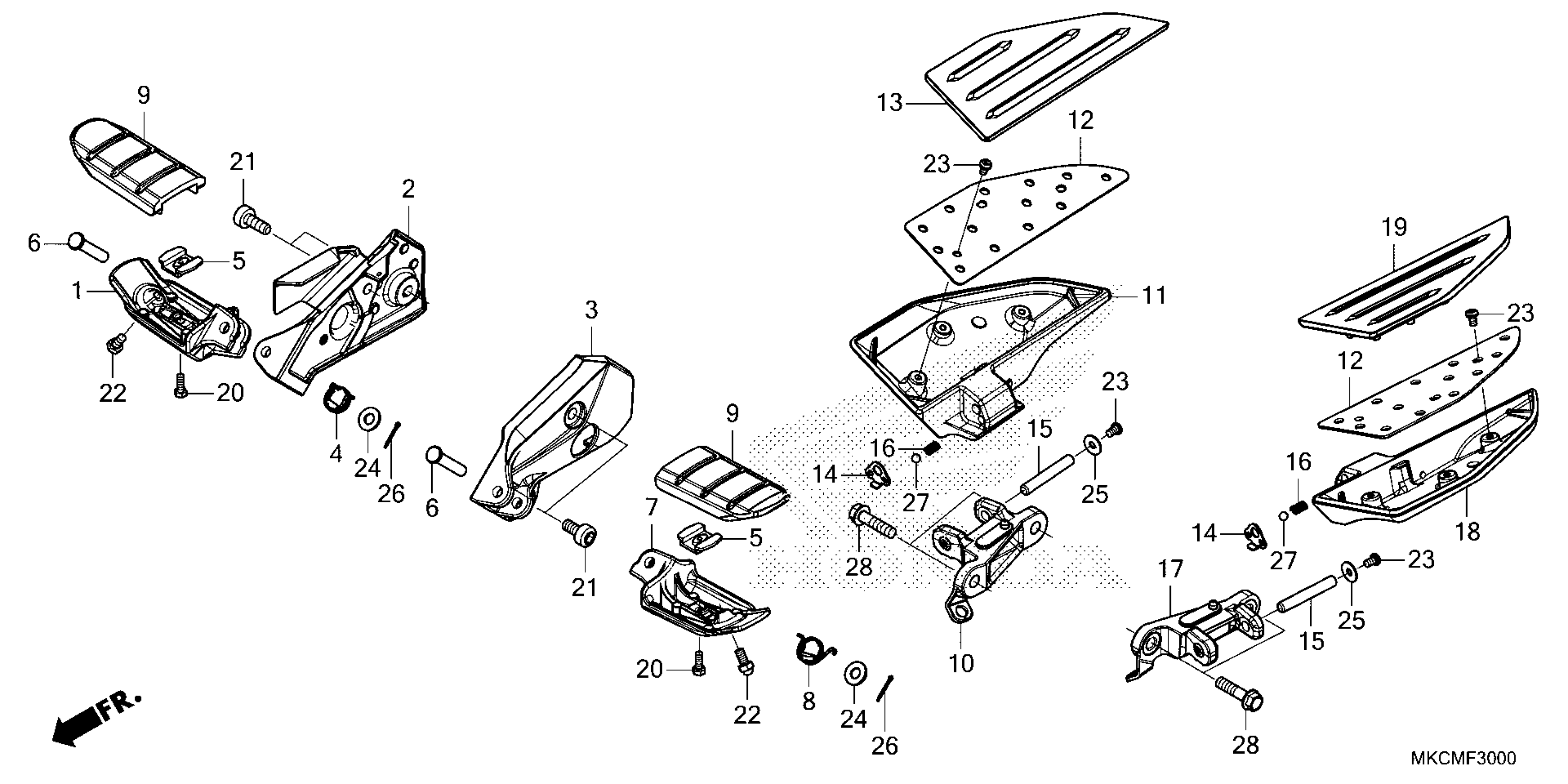

Honda GL18002AC (21) MOTORCYCLE, JPN, VIN# JH2SC790-MK300001 STEP Diagram
