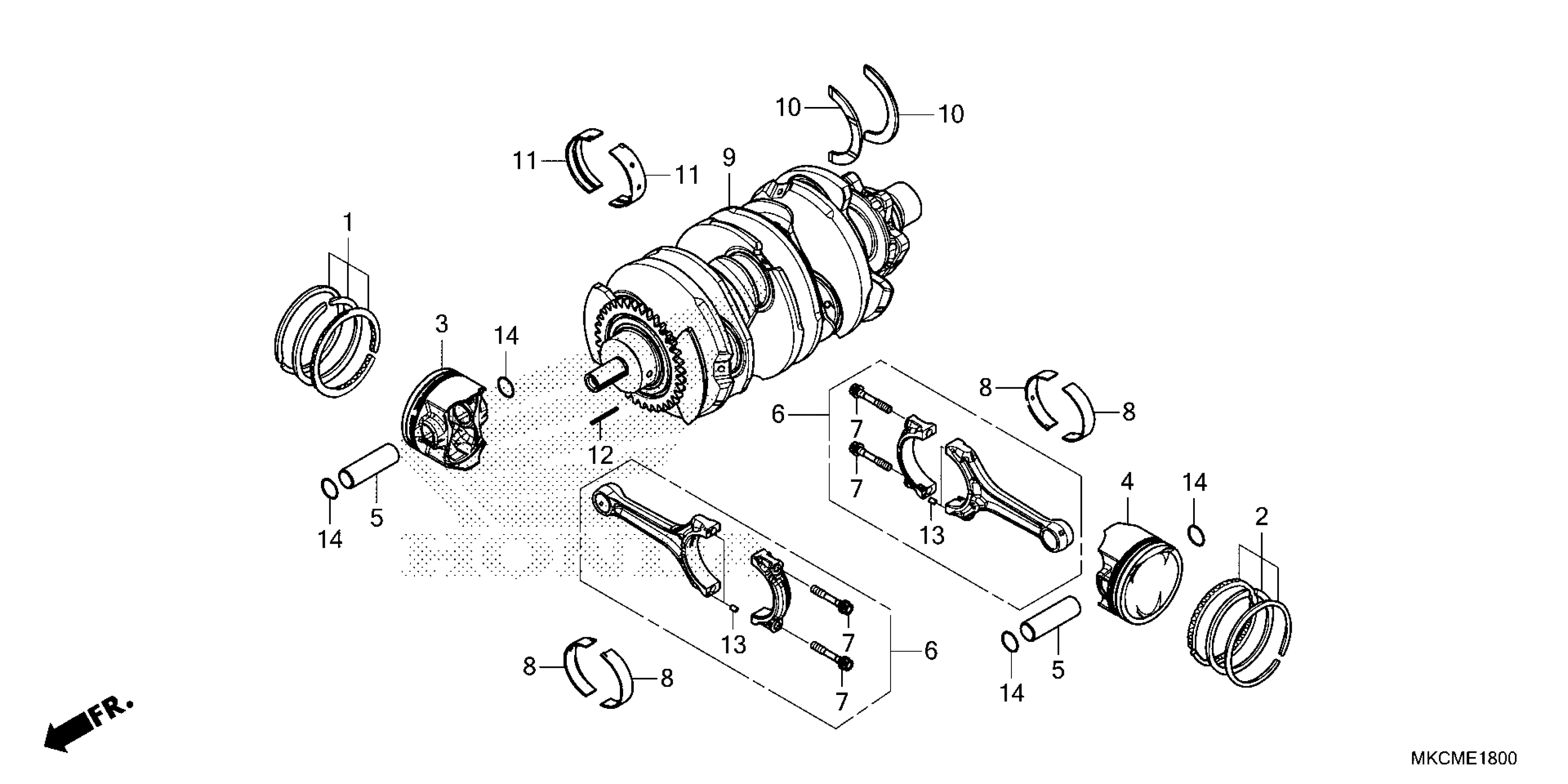

Honda GL18002AC (21) MOTORCYCLE, JPN, VIN# JH2SC790-MK300001 CRANKSHAFT@PISTON Diagram

#

Description
Price

1

RING SET, R. PISTON (STD)

13010-MKC-A00

$58.48

1

RING SET, R. PISTON (0.25) | (Optional).

13011-MKC-A00

$55.96

2

RING SET, L. PISTON (STD)

13015-MKC-A00

$58.48

2

RING SET, L. PISTON (0.25) | (Optional).

13016-MKC-A00

$55.96

3

PISTON, R. (STD)

13101-MKC-A00

$97.71

3

PISTON, R. (0.25) | (Optional).

13103-MKC-305

$93.49

4

PISTON, L. (STD)

13102-MKC-A00

$97.71

4

PISTON, L. (0.25) | (Optional).

13107-MKC-305

$93.49

5

PIN, PISTON

13111-KCZ-000

$17.12

6

ROD ASSY., CONNECTING

13210-MKC-A00

$237.06

7

BOLT, CONNECTING ROD

13213-MKC-A01

$6.71

8

BEARING A, CONNECTING ROD (BLUE)

13214-MKC-A01

$11.93

8

BEARING B, CONNECTING ROD (BLACK)

13215-MKC-A01

$11.93

8

BEARING C, CONNECTING ROD (BROWN)

13216-MKC-A01

$11.93

8

BEARING D, CONNECTING ROD (GREEN)

13217-MKC-A01

$11.93

8

BEARING E, CONNECTING ROD (YELLOW)

13218-MKC-A01

$11.93

9

CRANKSHAFT ASSY.

13300-MKC-A01

$1,601.39

10

BEARING, THRUST

13312-MN5-003

$15.41

11

BEARING A, CRANKSHAFT (BLUE)

13313-MKC-A01

$12.58

11

BEARING B, CRANKSHAFT (BLACK)

13314-MKC-A01

$12.58

11

BEARING C, CRANKSHAFT (BROWN)

13315-MKC-A01

$12.58

11

BEARING D, CRANKSHAFT (GREEN)

13316-MKC-A01

$12.58

11

BEARING E, CRANKSHAFT (YELLOW)

13317-MKC-A01

$12.58

12

KEY (2X2X30)

90701-MCA-010

$4.77

13

PIN, DOWEL (3X5)

94303-03050

$2.04

14

CLIP, PISTON PIN (17MM)

94601-17000

$1.49
