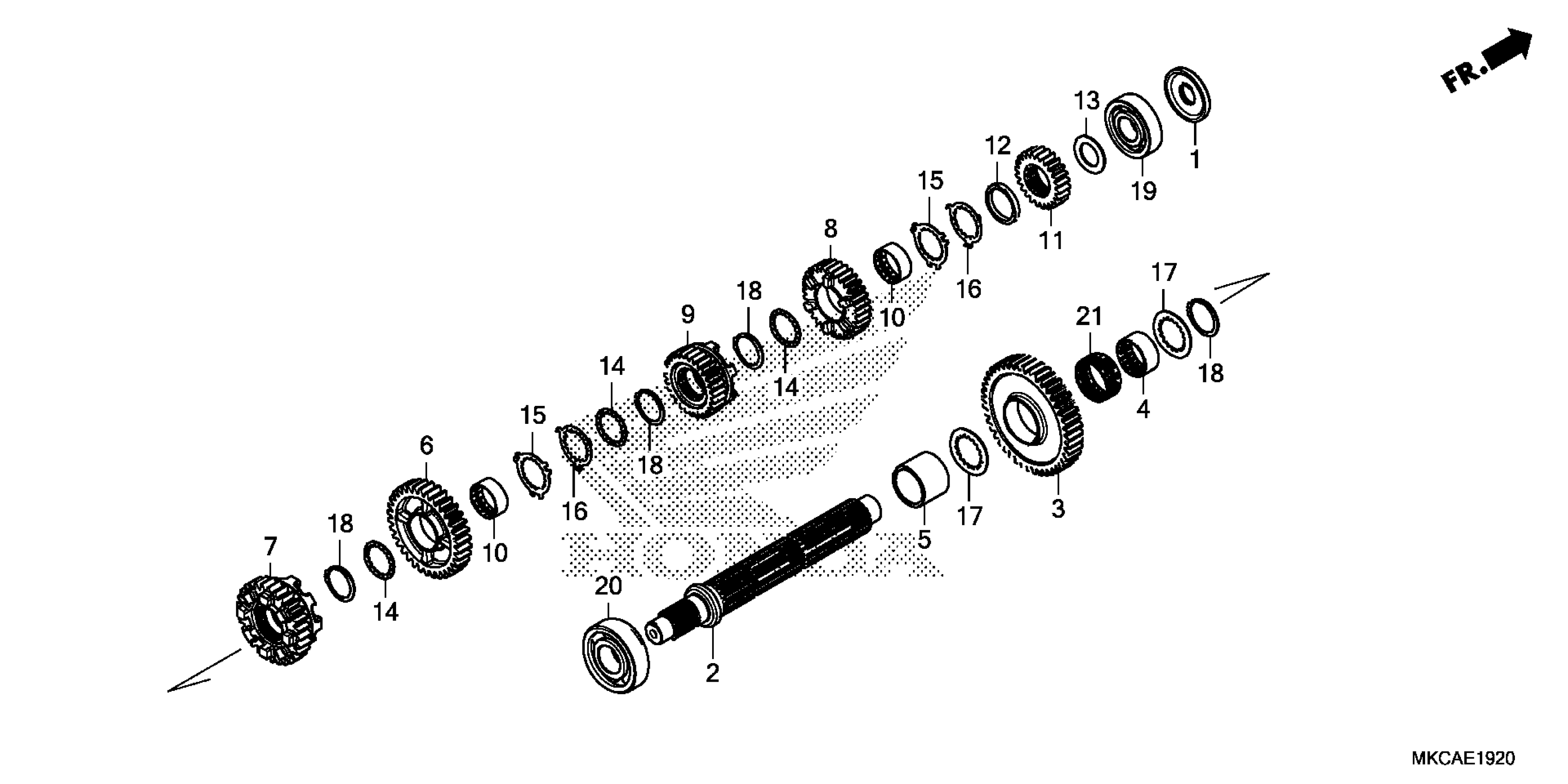

Honda GL18002AC (19) MOTORCYCLE, JPN, VIN# JH2SC790-KK100001 TRANSMISSION (COUNTERSHAFT) Diagram

DAMPER B, BEARING

11369-MKC-A00

$5.44

COUNTERSHAFT (18T)

23221-MKC-A20

$229.34

GEAR, COUNTER FIRST (44T)

23421-MKC-A20

$104.33

COLLAR, SPLINE (34X38X17)

23422-MKC-A20

$27.20

COLLAR (34X42X32.2)

23423-MKC-A20

$28.89

GEAR, COUNTERSHAFT SECOND (34T)

23441-MKC-A20

$115.02

GEAR, COUNTER THIRD (29T)

23461-MKC-A20

$129.87

GEAR, COUNTER FOURTH (32T)

23481-MKC-A20

$116.82

GEAR, COUNTERSHAFT FIFTH (28T)

23501-MKC-A20

$118.69

COLLAR, SPLINE (34X37X15)

23523-MKC-A00

$20.25

GEAR, COUNTERSHAFT TOP (24T)

23541-MKC-A00

$63.28

COLLAR (34X42X5.4)

23542-MKC-A00

$7.64

WASHER, SPECIAL (25X40X2)

90417-HL4-000

$4.44

WASHER, SPLINE (34X40X1.5)

90462-MKC-A00

$3.39

WASHER, SPLINE (34MM)

90463-MKC-A00

$6.51

WASHER, LOCK (34MM)

90464-MKC-A00

$4.67

WASHER, SPLINE (34X47X1.5)

90465-MKC-A00

$4.05

CIRCLIP (34MM)

90601-MKC-A00

$4.56

BEARING, RADIAL BALL (25X62X17) (EC)

91024-MKC-A01

$28.00

BEARING, RADIAL BALL (28X68X18) (EC)

91025-MKC-A01

$30.38

BEARING, NEEDLE (38X43X17)

91027-MKC-A21

$13.36
