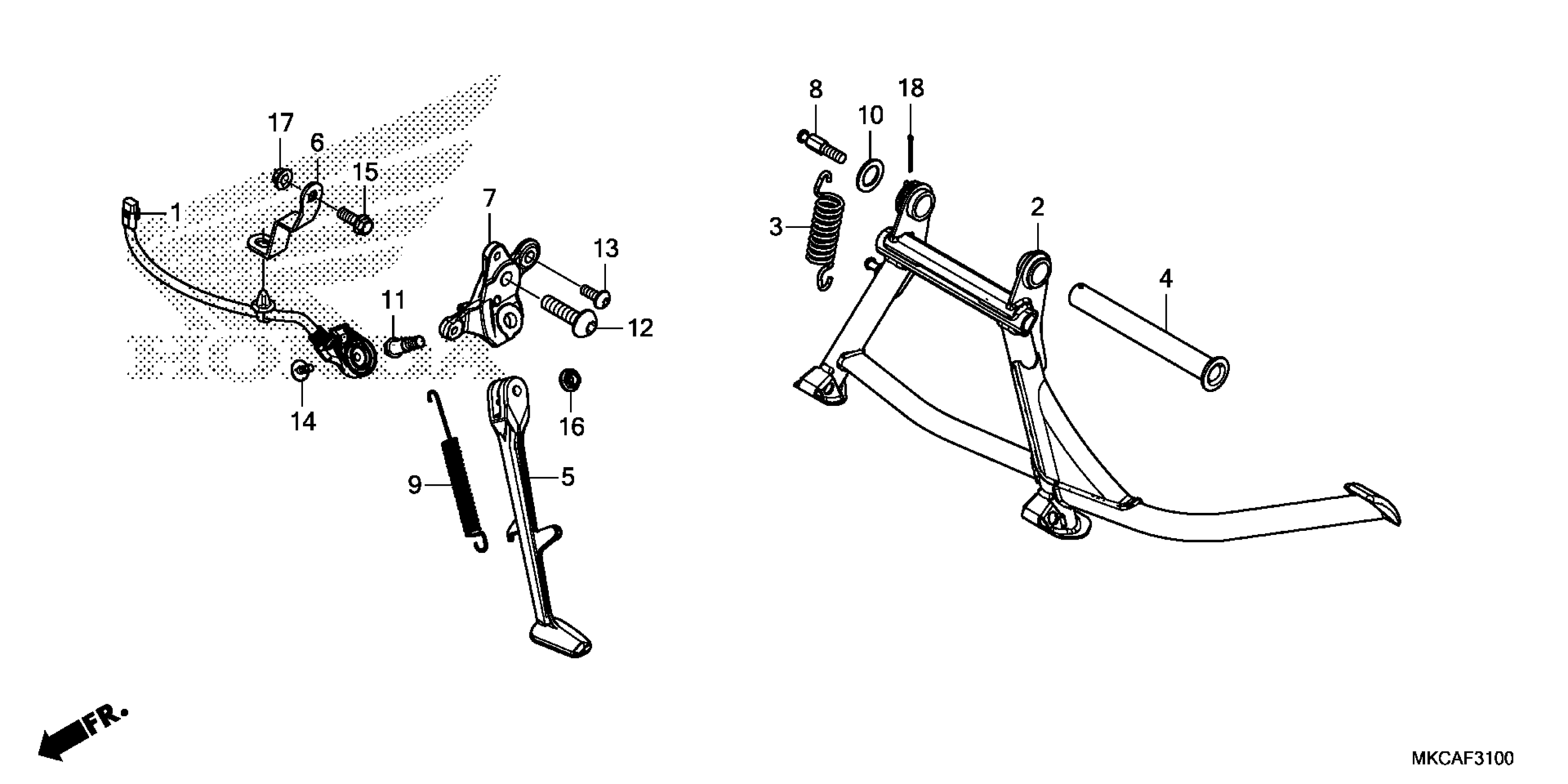

Honda GL18002AC (19) MOTORCYCLE, JPN, VIN# JH2SC790-KK100001 STAND Diagram

SWITCH ASSY., SIDE STAND (MT)

35700-MKC-A21

$78.61

STAND, MAIN

50500-MKC-A00

$164.85

SPRING, MAIN STAND

50525-MKC-A00

$6.93

PIPE, MAIN STAND PIVOT

50526-MKC-A00

$19.03

BAR, SIDE STAND

50530-MKC-A00

$122.79

BRACKET, SIDE STAND

50535-MKC-A00

$68.56

HOOK, MAIN STAND SPRING

50538-MCA-000

$5.75

SPRING, SIDE STAND

50540-MFL-000

$6.58

WASHER, PILLION FOOTPEG

50712-405-000

$3.26

BOLT, SIDE STAND PIVOT

90108-MKC-A00

$6.08

BOLT, SOCKET (12X45) | Use up to Frame SN KK100546. This part replaces 90126-MKC-A00.

90126-MKC-A01

$7.34

BOLT, SOCKET (12X45) | Use from Frame SN KK100547.

90126-MKC-A01

$7.34

BOLT, SOCKET (8X22)

90128-KET-900

$2.23

BOLT, SPECIAL (6X16)

90147-MCE-950

$1.49

NUT, SIDE STAND

90303-MKC-A00

$3.25

PIN, COTTER (2.5MM)

94201-25300

$1.49
