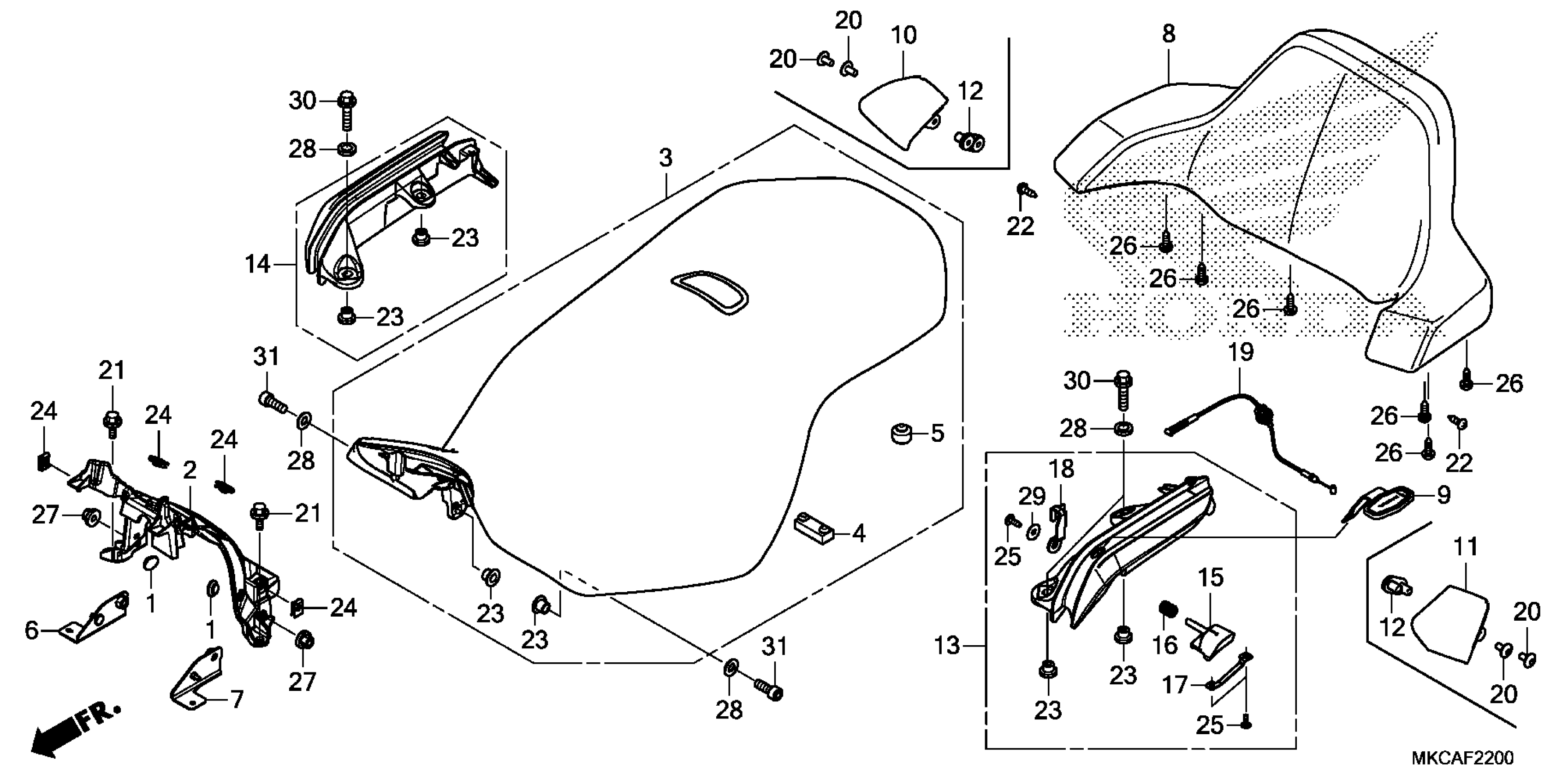

Honda GL18002AC (19) MOTORCYCLE, JPN, VIN# JH2SC790-KK100001 SEAT Diagram

#

Description
Price

1

RUBBER, FUEL PUMP STOPPER

16712-MN5-000

$2.90

2

STAY, SHELTER

50280-MKC-A00

$44.54

3

SEAT, DOUBLE HEATED (TYPE1)

77200-MKC-A01ZA

$1,740.95

4

RUBBER B, SEAT SETTING

77205-286-000

$5.28

5

RUBBER, SEAT SETTING

77206-426-000

$5.05

6

STAY, R. FR. SEAT

77206-MKC-A00

$13.15

7

STAY, L. FR. SEAT

77207-MKC-A00

$13.43

8

HEATED SEAT, BACK (TYPE1) (NOT AVAILABLE)

77500-MKC-A01ZA

$535.57

9

PLATE, HELMET HOLDER

81250-MKC-A00

$15.34

13

GRIP ASSY., L. PASSENGER *NHA86M* (MAT BALLISTIC BLACK)

84110-MKC-A00ZA

$186.98

14

GRIP, R. PASSENGER *NHA86M* (MAT BALLISTIC BLACK)

84150-MKC-A00ZA

$134.23

15

BUTTON, HELMET HOLDER *NHA86M* (MAT BALLISTIC BLACK)

84160-MKC-A00ZB

$42.13

16

SPRING, BUTTON RETURN

84163-MKC-A00

$2.93

17

PLATE A, HELMET HOLDER

84164-MKC-A00

$2.16

18

PLATE B, HELMET HOLDER

84166-MKC-A00

$5.10

19

CABLE, HELMET HOLDER

84167-MKC-A01

$15.83

21

BOLT, SPECIAL (M6)

90107-KTW-900

$4.31

22

SCREW, TAPPING (5X12)

90121-MJK-N20

$2.04

23

COLLAR (8MM)

90450-KG8-000

$4.76

24

NUT, CLIP (5MM)

90677-KAN-961

$4.07

25

SCREW, TAPPING (4X12)

93903-24310

$1.49

26

SCREW, TAPPING (5X16)

93903-25380

$1.49

27

NUT, FLANGE (5MM)

94050-05070

$1.49

28

WASHER, PLAIN (8MM)

94101-08800

$1.93

29

WASHER, PLAIN (4MM)

94103-04800

$1.49

30

BOLT, FLANGE (8X32)

95801-08032-00

$2.07

31

BOLT, SOCKET (8X22)

96700-08022-18

$2.00
